DeLonghi MULTIFUNCTION BUILT-IN OVENS - Page 7

7
S1S2
F1
PR
1
6
1a
6a
4
9
4a
9a
3
8
3a
8a
2
7
2a
7a
5
10
11
5a
10a
11a
C
G
S
V
CIR
TM
CF
N/7
1
1a
L/8
LF1
TL
T
N
L
M
LF2

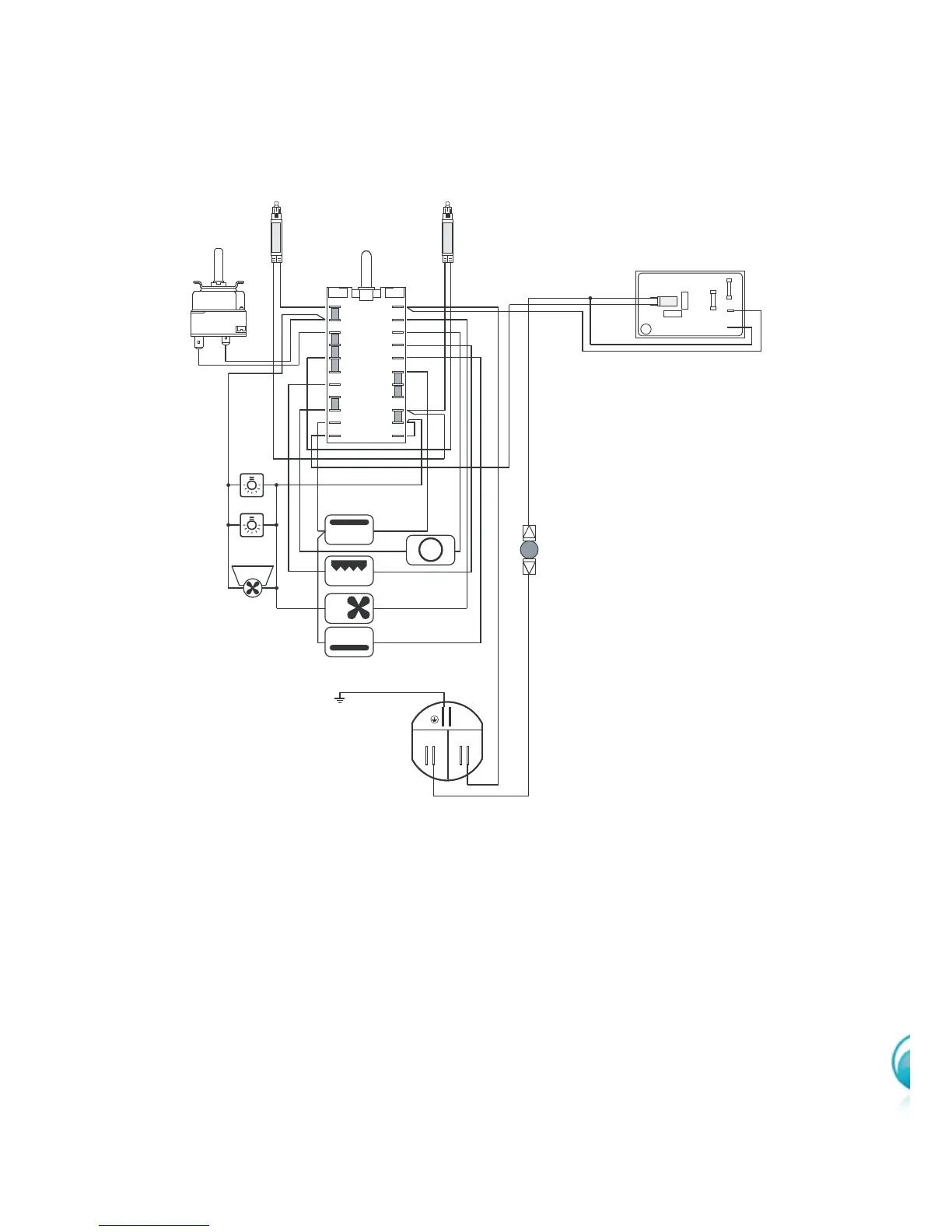

ELECTRIC DIAGRAM - multifunction OVENS
(models with electronic programmer)
Figure 4
F1 Oven switch
TM Oven thermostat
TL Thermal overload
PR Electronic programmer
LF1 Oven lamp
LF2 Oven lamp
S1 Thermostat pilot lamp
S2 Line pilot lamp
C Top element
G Grill element
S Bottom element
V Fan
CIR Circular element
CF Cooling fan
M Terminal block
T Earth connection
