The instructions below will enable you to prepare your air conditioner for operation as efficiently
as possible.
Before use, make sure the air intake and outlet grilles are unobstructed.

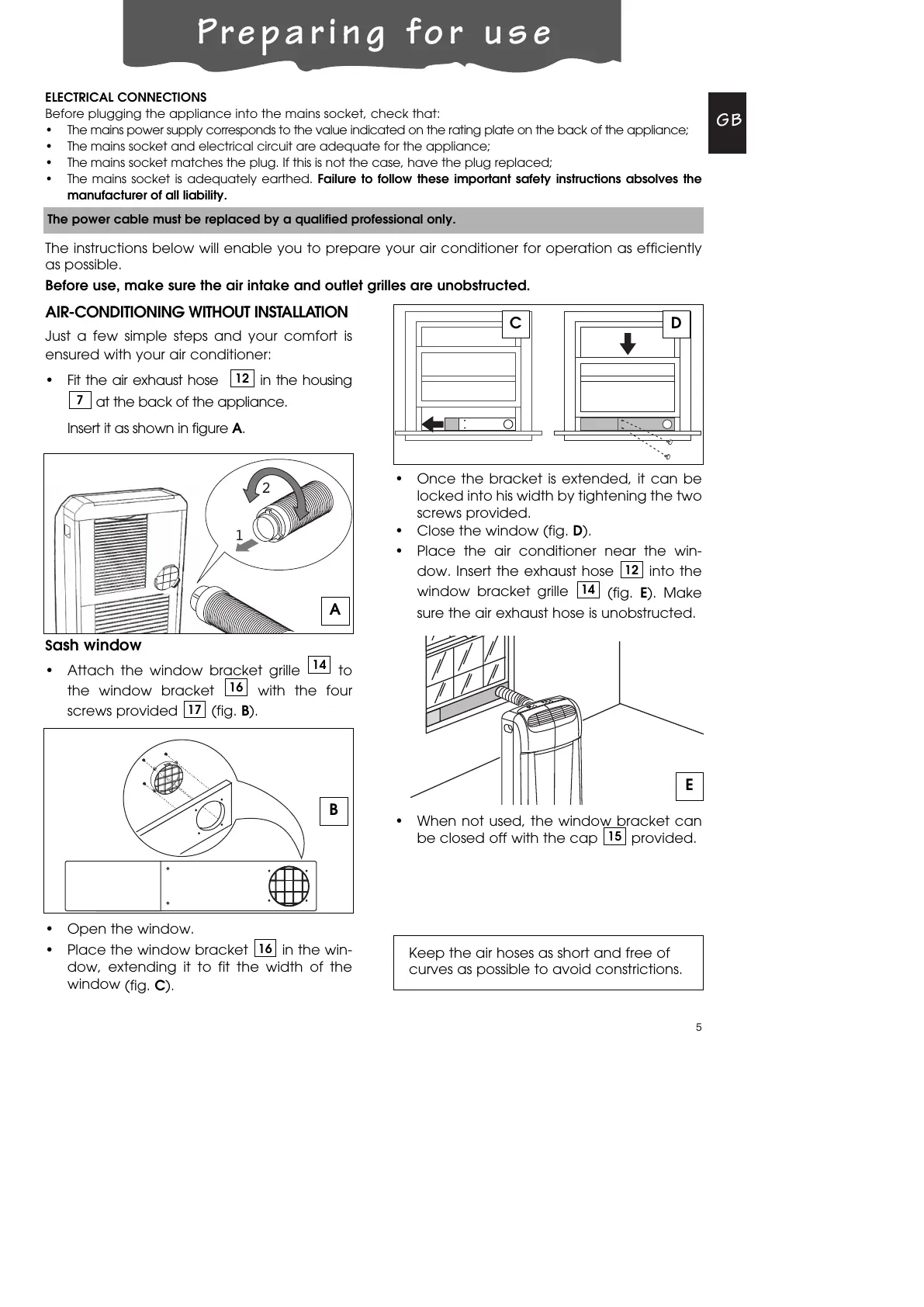

AIR-CONDITIONING WITHOUT INSTALLATION
Just a few simple steps and your comfort is
ensured with your air conditioner:
• Fit the air exhaust hose in the housing
at the back of the appliance.
Insert it as shown in figure A.
7
12
Sash window
• Attach the window bracket grille to
the window bracket with the four
screws provided (fig. B).
17
16
14
A
Preparing for use
Keep the air hoses as short and free of
curves as possible to avoid constrictions.
ELECTRICAL CONNECTIONS
Before plugging the appliance into the mains socket, check that:
• The mains power supply corresponds to the value indicated on the rating plate on the back of the appliance;
• The mains socket and electrical circuit are adequate for the appliance;
• The mains socket matches the plug. If this is not the case, have the plug replaced;
• The mains socket is adequately earthed. Failure to follow these important safety instructions absolves the
manufacturer of all liability.
The power cable must be replaced by a qualified professional only.
E
B
• Open the window.
• Place the window bracket in the win-
dow, extending it to fit the width of the
window
(fig. C).
16
C
D
• Once the bracket is extended, it can be
locked into his width by tightening the two
screws provided.
• Close the window (fig. D).
• Place the air conditioner near the win-
dow. Insert the exhaust hose into the
window bracket grille
(fig. E). Make
sure the air exhaust hose is unobstructed.
14
12
• When not used, the window bracket can
be closed off with the cap provided.
15
