DeLonghi NF90 - Semi-Permanent Installation

134
5,27 in.
in the window
pane
in the wall: you are
recommended to
insulate the sec-
tion of wall using
suitable insulation.
in the wood-
en kickboard
of a French
window
I
Preparing for use
11.8 inc
hes
30 cm
30 cm
11,8 inches
D
MAX100 cm
MAX 39.37 inches
MIN 35 cm
MIN 13.77 inches
French window
• Attach the window outlet
to the air
exhaust hose
(fig. F).
.
12
18
G
• Open the French window slightly and posi-
tion the outlet . as shown in figure G
12
2
1
F

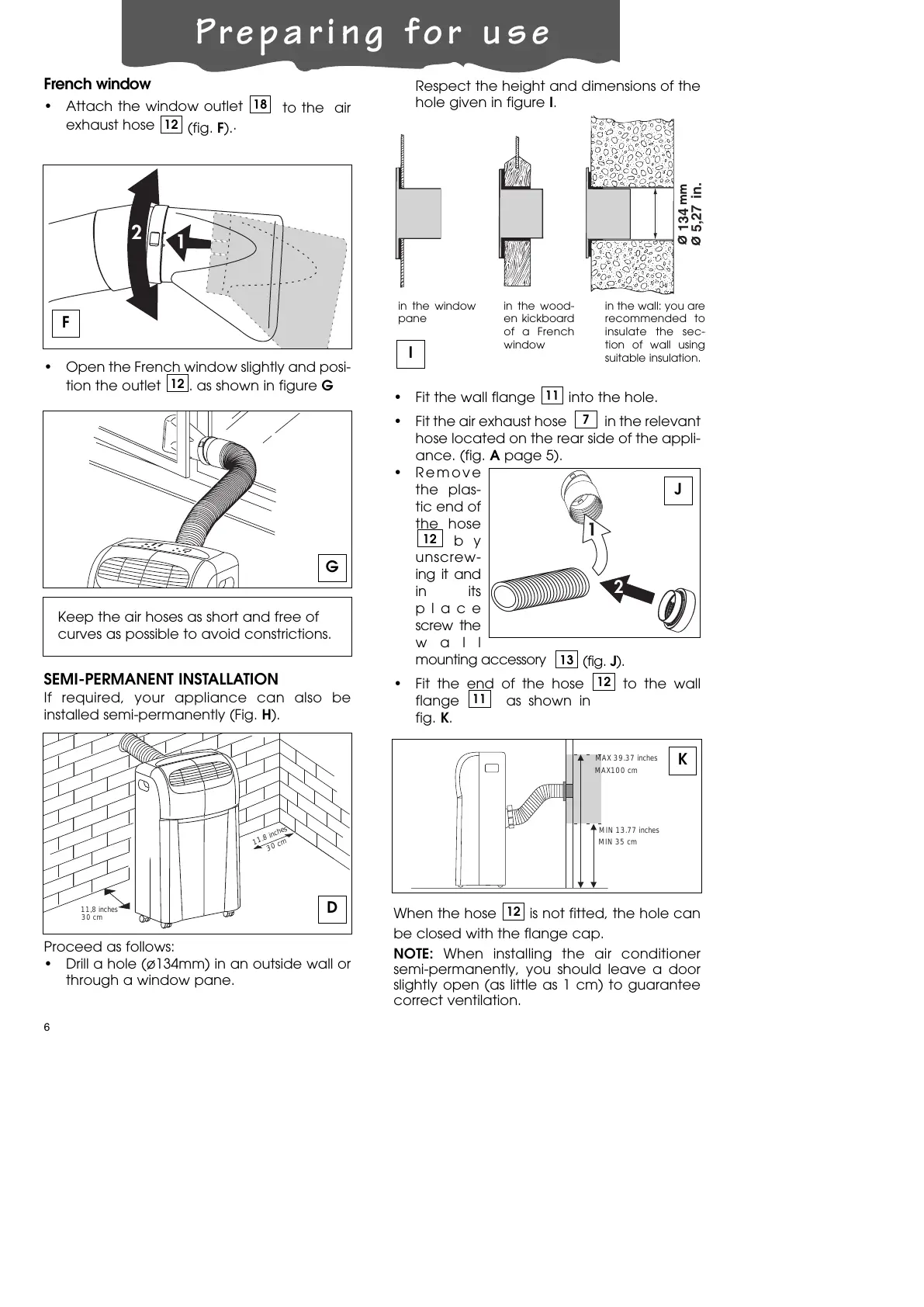

SEMI-PERMANENT INSTALLATION
If required, your appliance can also be
installed semi-permanently (Fig. H).
Keep the air hoses as short and free of
curves as possible to avoid constrictions.
Proceed as follows:
• Drill a hole (ø134mm) in an outside wall or
through a window pane.
Respect the height and dimensions of the
hole given in figure I.
• Fit the wall flange into the hole.
• Fit the air exhaust hose in the relevant
hose located on the rear side of the appli-
ance. (fig. A page 5).
• Remove
the plas-
tic end of
the hose
by
unscrew-
ing it and
in its
place
screw the
wall
mounting accessory
(fig. J).
• Fit the end of the hose to the wall
flange as shown in
fig. K.
11
12
13
12
7
11
1
2
J
K
When the hose is not fitted, the hole can
be closed with the flange cap.
NOTE: When installing the air conditioner
semi-permanently, you should leave a door
slightly open (as little as 1 cm) to guarantee
correct ventilation.
12
6
