Delphi GT 280 User Manual

Assembly Manual
4 Way GT 280 Sealed Connection System
GT 2.8 Terminal System (Sealed)
© Delphi Corporation. All Rights Reserved
www.delphi.com
Assembly Manual - 33278895
11
Pictures used in this Assembly Manual and original parts may differ in some
details, these differences have no influence on the assembly process.
ASSEMBLY
FEMALE CONNECTOR
ASSEMBLY
QUANTITY COMPONENTS
1 FEMALE CONNECTOR ASSEMBLY
4 MAX
SEALED TERMINAL GT 2.8
AS REQUIRED
CAVITY PLUG *

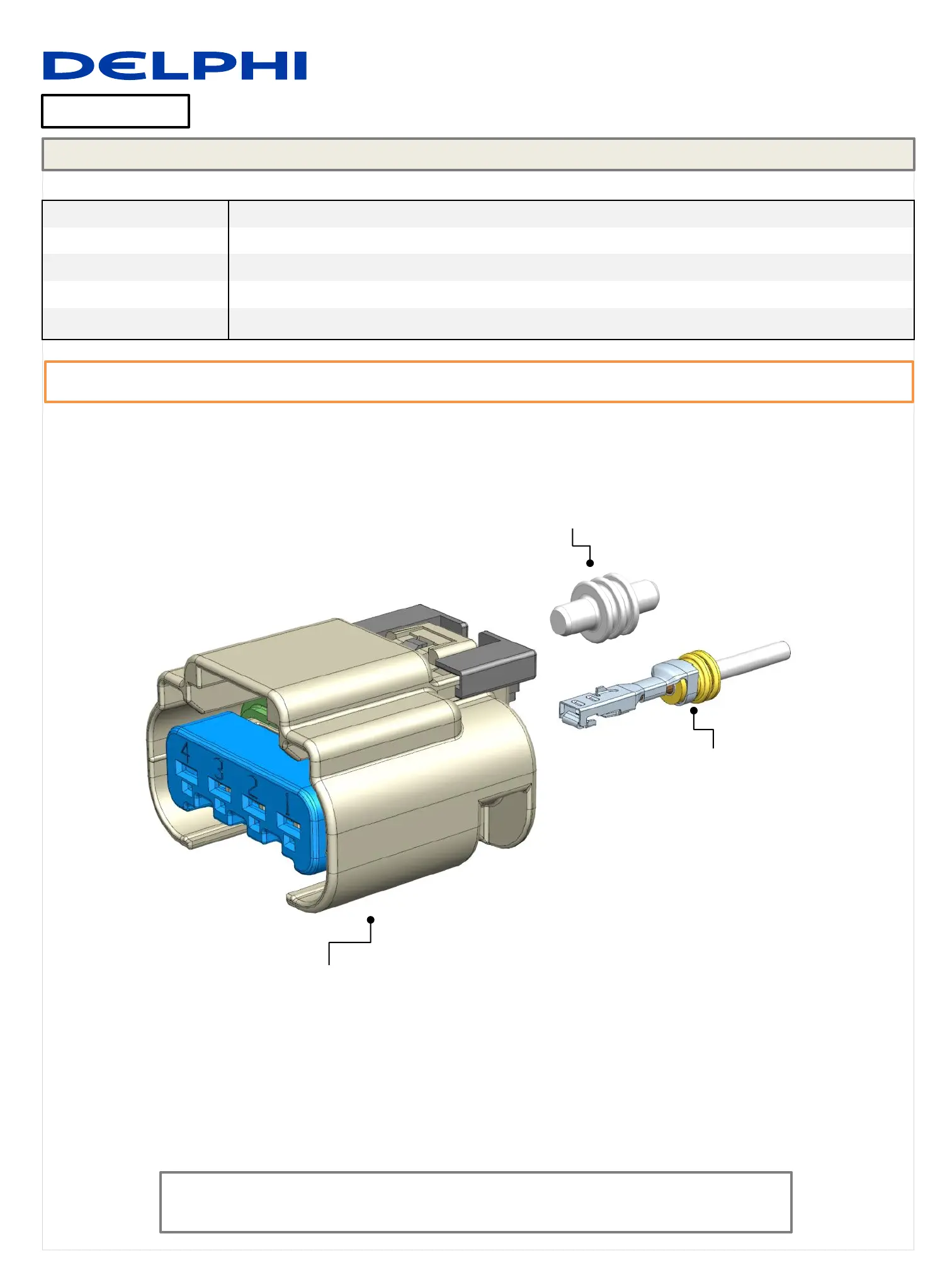

LIST OF COMPONENTS & EXPLODED VIEW
SEALED TERMINAL GT 2.8
* OPTIONAL COMPONENT
CAVITY PLUG *
