Delphi GT 280 User Manual

Assembly Manual
4 Way GT 280 Sealed Connection System
GT 2.8 Terminal System (Sealed)
© Delphi Corporation. All Rights Reserved
www.delphi.com
Assembly Manual - 33278895
15

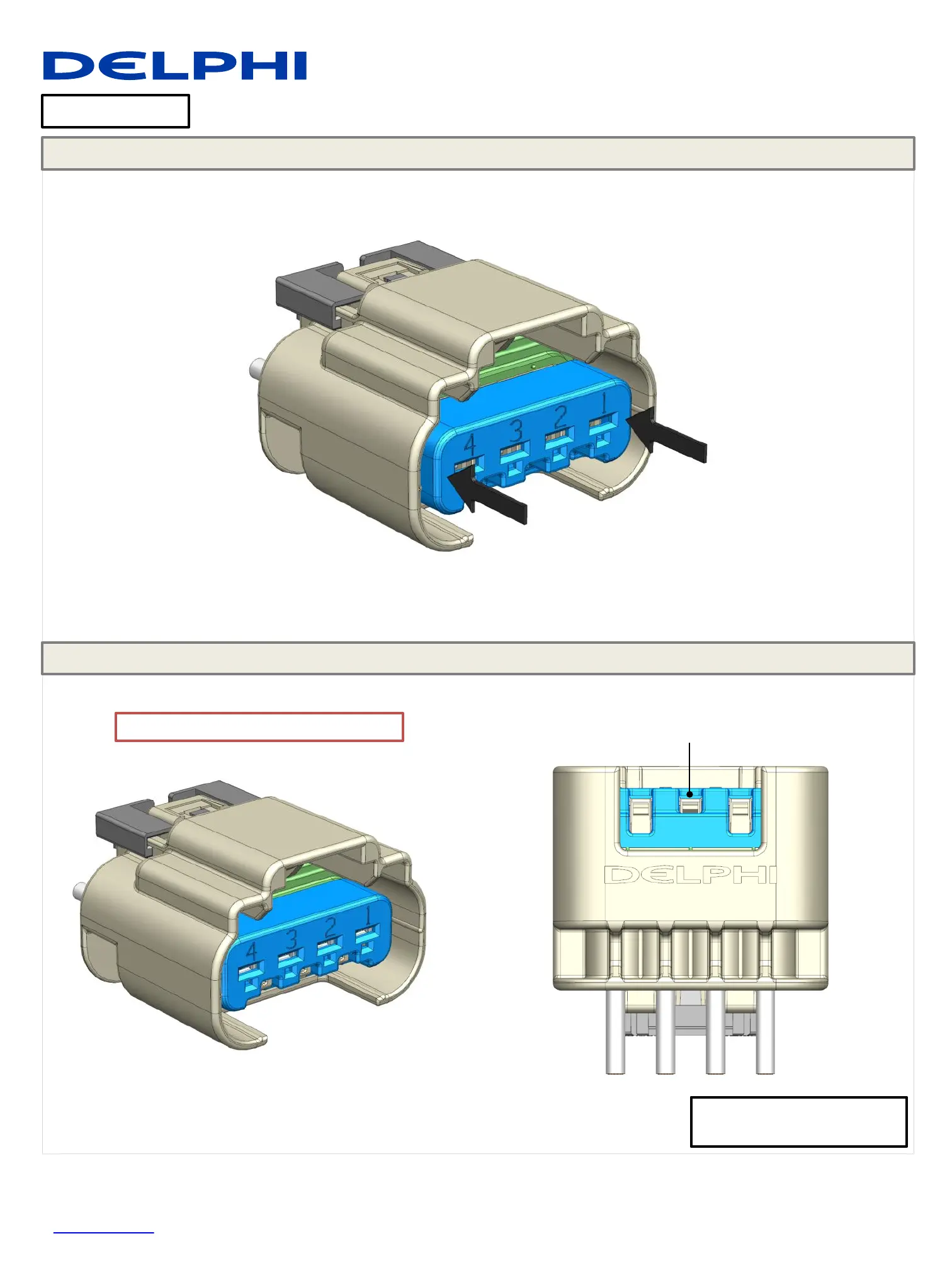

STEP 5a – Lock PLR to Full-Stage Position
STEP 5b – Lock PLR to Full-Stage Position
ASSEMBLY
PLR IS NOW IN
FULL-STAGE POSITION
PUSH THE PLR FORWARD
DO NOT FORCE THE PLR, IF IT CAN’T BE LOCKED REVISE IF TERMINALS ARE PROPERLY SEATED
VERIFY AUDIBLE CLICK
VERIFY THAT THE LOCK ON CONNECTOR IS
FASTENED ON THE PLR SLOT
