Section 5
• For antenna mounting locations at the rear of the roof, the antenna
cable can be routed into the vehicle through the trunk, as shown in
figure 8. Always route the cable under the weather seal near the lowest
part of the trunk to help reduce possible water leaks.
• Use pre-existing wiring channels created by the vehicle manufacturer
whenever possible.

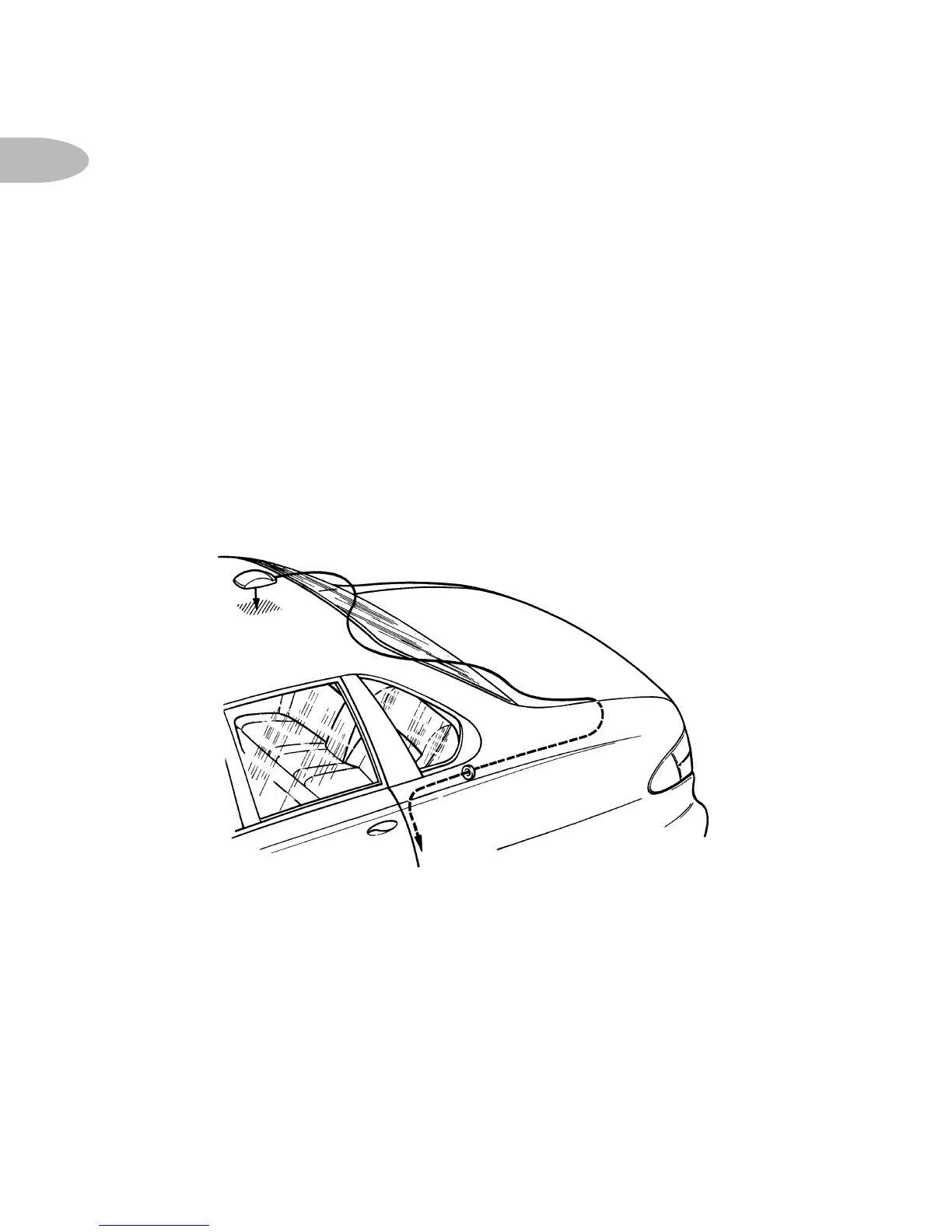

Figure 8. Route XM Antenna wiring as shown.
Rear Mounting Option
22
