Chapter 4 Display and Operation
This chapter describes the basic operation of the digital keypad and the features it offers.
4.1 Description of the Digital Keypad
The digital keypad includes the display panel and function keys. The Figure 4.1 shows all of
the features of the digital keypad and an overview of their functions.

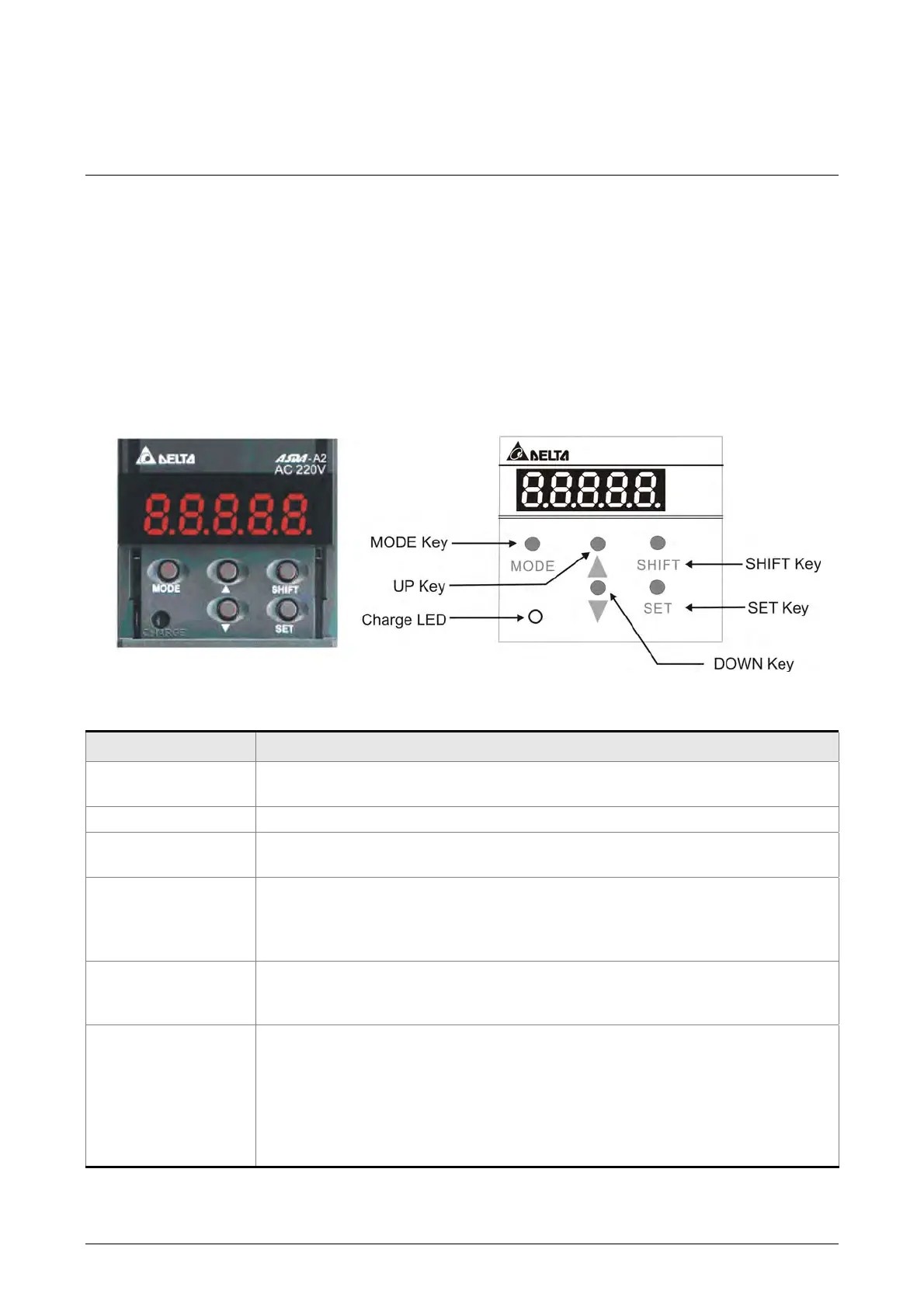

Figure 4.1 Keypad Features
Name Function
LCD Display
The LCD Display (5-digit, 7-step display panel) shows the monitor
codes, parameter settings and operation values of the AC servo drive.
Charge LED The Charge LED lights to indicate the power is applied to the circuit.
MODE Key
MODE Key. Pressing MODE key can enter or exit different parameter
groups, and switch between Monitor mode and Parameter mode.
SHIFT Key
SHIFT Key. Pressing SHIFT key can scrolls through parameter groups.
After a parameter is selected and its value displayed, pressing SHIFT
key can move the cursor to the left and then change parameter settings
(blinking digits) by using arrow keys.
UP and DOWN Key
UP and DOWN Key. Pressing the UP and DOWN key can scroll through
and change monitor codes, parameter groups and various parameter
settings.
SET Key
SET Key. Pressing the SET key can display and save the parameter
groups, the various parameter settings. In monitor mode, pressing SET
key can switch decimal or hexadecimal display. In parameter mode,
pressing SET key can enter into parameter setting mode. During
diagnosis operation, pressing SET key can execute the function in the
last step. (The parameter settings changes are not effective until the
SET key is pressed.)
Revision January 2011 4-1
