Chapter 5 Trial Run and Tuning Procedure
5.6.6 Mechanical Resonance Suppression Method
In order to suppress the high frequency resonance of the mechanical system, ASDA-A2
series servo drive provides three notch filters (resonance suppression parameters) for
resonance suppression. Two notch filters can be set to suppress the resonance
a
uto
matically. If the users do not want to suppress the resonance automatically, these
two notch filter can also be set to or eliminate the resonance manually.

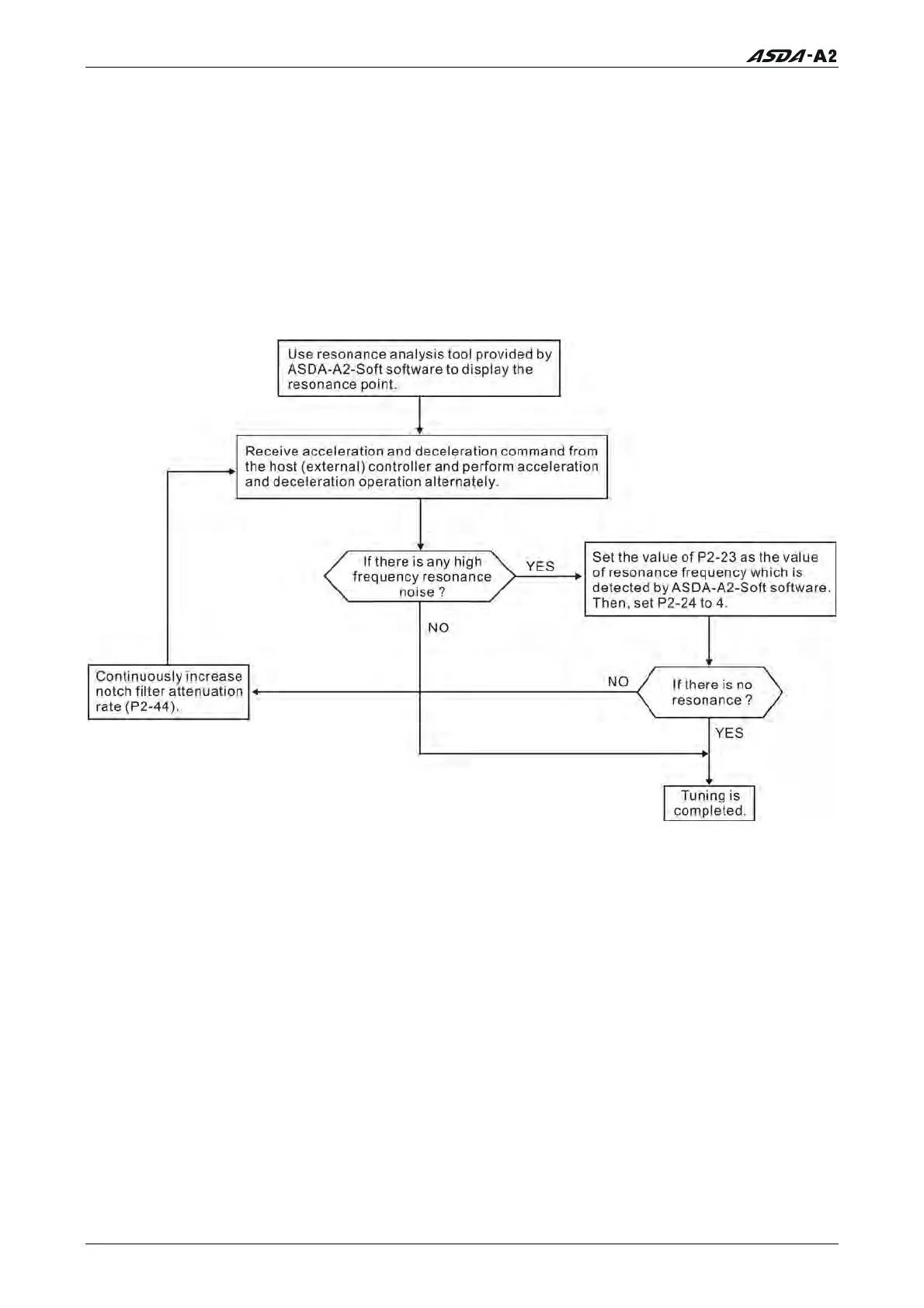

Please refer to the following flowchart for manual adjustment.
5-22 Revision January 2011
