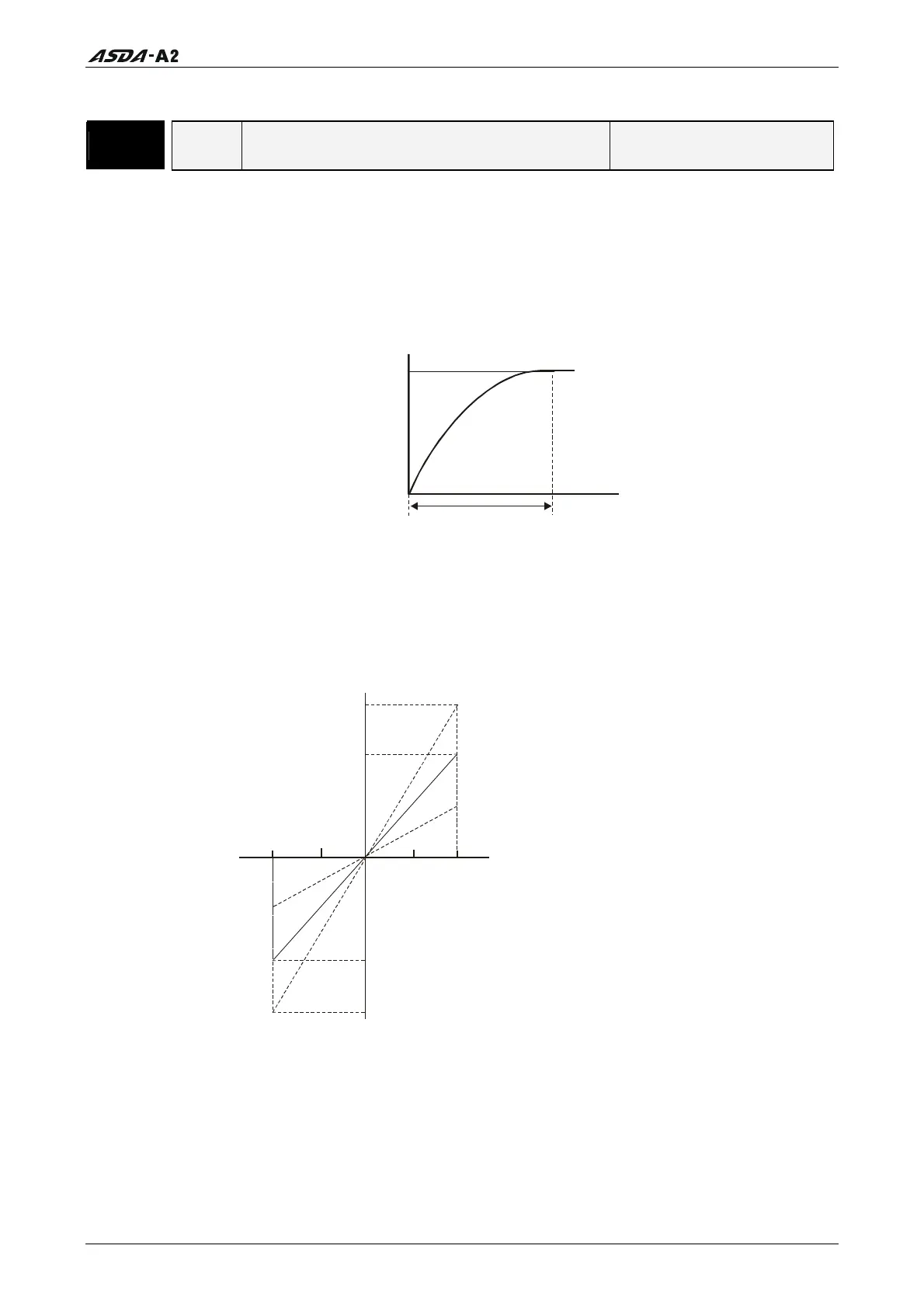

Chapter 6 Control Modes of Operation
Relevant parameters:
P1 - 06
SFLT
Accel / Decel Smooth Constant of Analog
Speed Command (Low-pass Filter)
Address: 010CH, 010DH
Default: 0 Related Section:
Applicable Control Mode: S Section 6.3.3
Unit: msec
Range: 0 ~ 1000 (0: Disabled)
Data Size: 16-bit
Display Format: Decimal
SFLT
Target Speed
6.3.4 Analog Speed Input Scaling
The analog voltage between V_REF and GND determines the motor speed command.
Using with parameter P1-40 (Max. Analog Speed Command) can adjust the speed control
ramp and its range.
510
-5-10
3000rpm
5000rpm
-3000rpm
-5000rpm
Analog Input Voltage (V)
The speed control ramp is
determined by parameter P1-40
Revision January 2011 6-29
