Chapter 2 Installation and Storage
Minimum Clearances
Install a fan to increase ventilation to avoid ambient temperatures that exceed the
specification. When installing two or more drives adjacent to each other please follow the
clearances as shown in the following diagram.

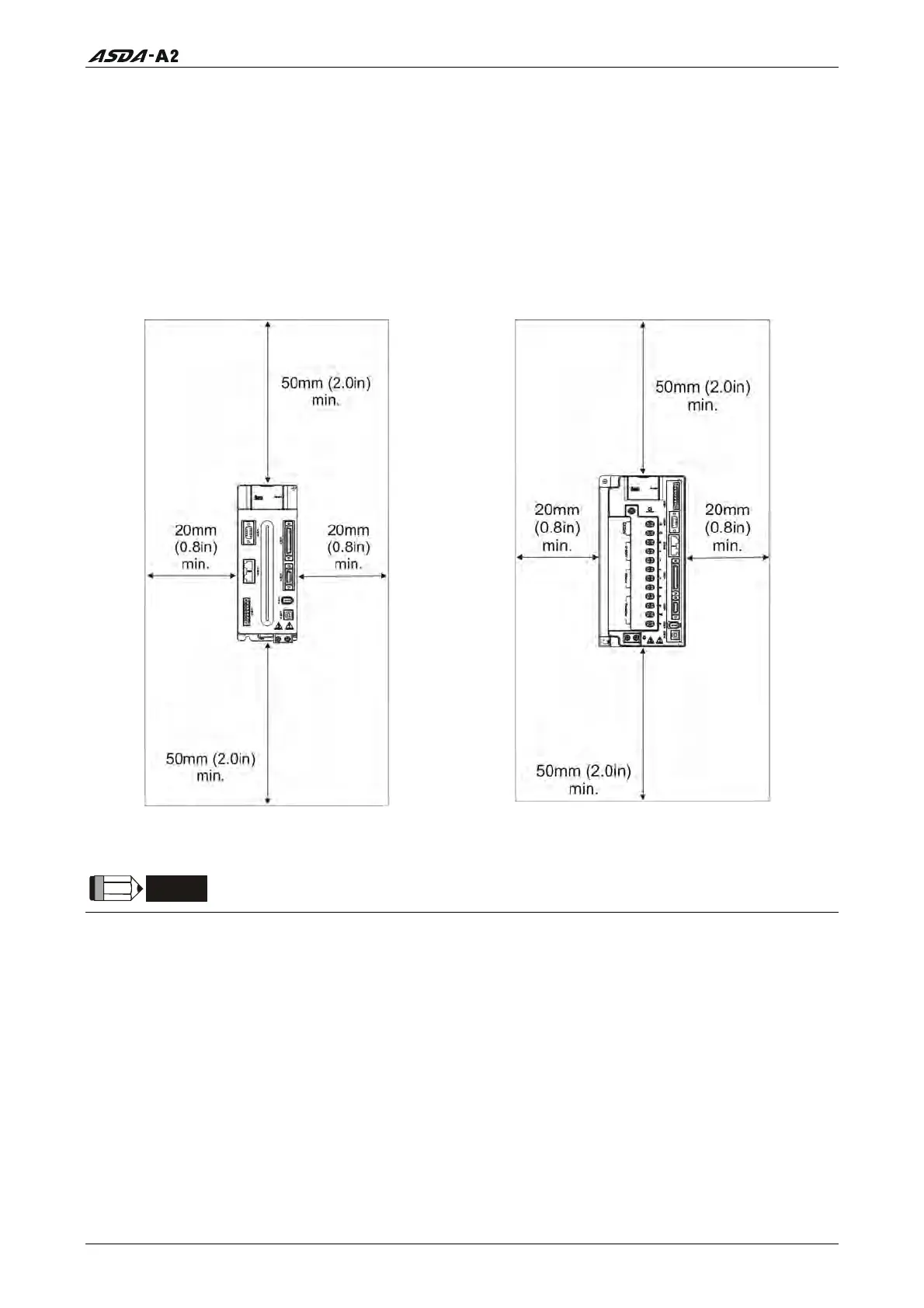

Minimum Clearances
750W ~ 1.5kW models: 2kW ~ 5.5kW models:
NOTE
The scale of the clearances does not match the dimensions as shown in the drawing above. In the
event of any discrepancy between the clearances and the dimensions, the dimensions shall prevail.
2-4 Revision January 2011
