Chapter 10 Troubleshooting

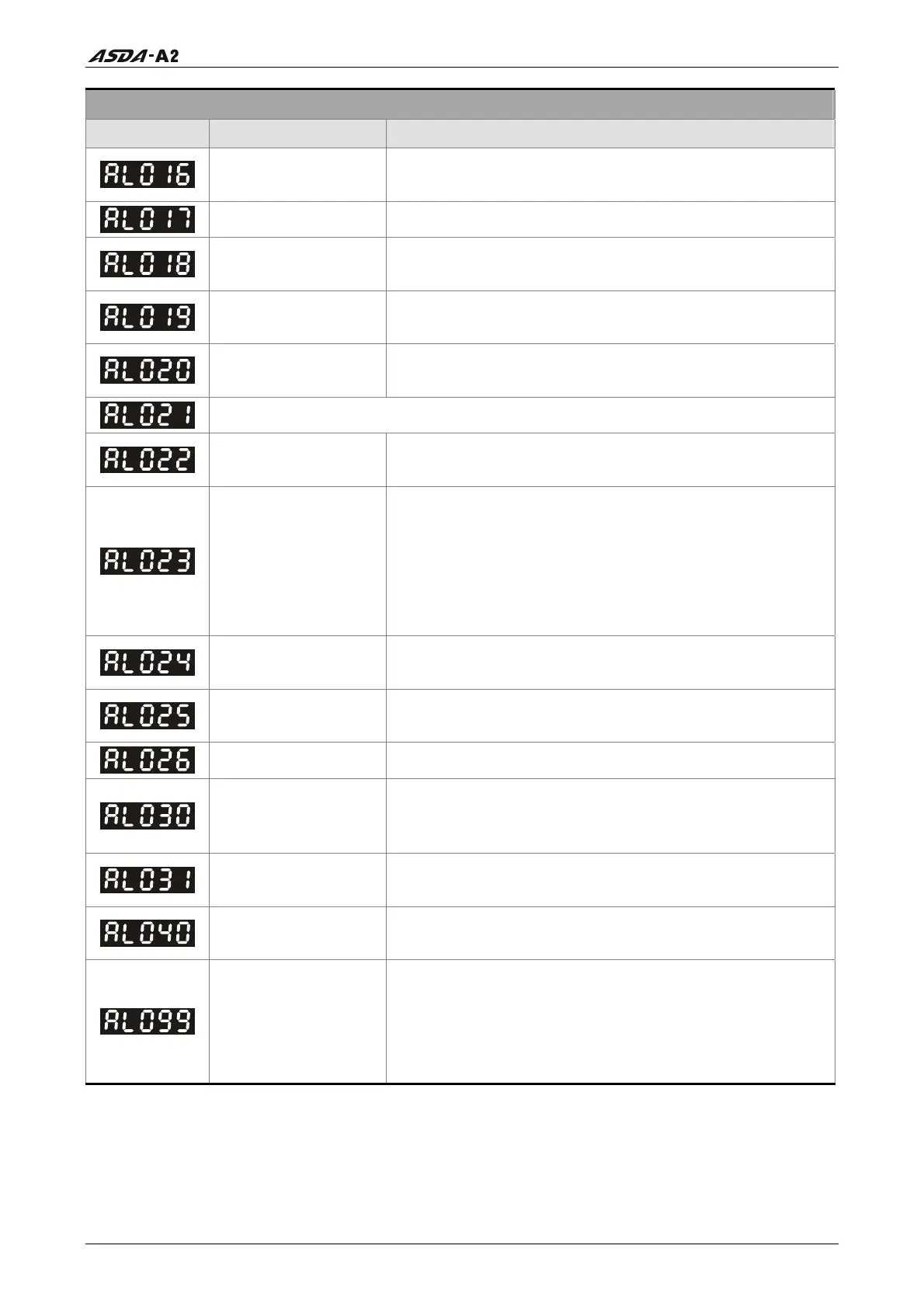

Fault Messages
Display Fault Name Fault Description
IGBT temperature
error
The temperature of IGBT is over high.
Memory error EE-PROM write-in and read-out is in error.
Encoder output error
The encoder output exceeds the rated output
frequency.
Serial communication
error
RS-232/485 communication is in error.
Serial communication
time out
RS-232/485 communication time out.
Reserved
Input power phase
loss
One phase of the input power is loss.
Pre-overload warning
To warn that the servo motor and drive is going to
overload. This alarm will display before ALM06. When
the servo motor reach the setting value of P1-56, the
motor will send a warning to the drive. After the drive
has detected the warning, the DO signal OLW will be
activated and this fault message will display.
Encoder initial
magnetic field error
The magnetic field of the encoder U, V, W signal is in
error.
Encoder internal
error
The internal memory of the encoder is in error. An
internal counter error is detected.
Encoder data error An encoder data error is detected for three times.
Motor protection
error
In order to protect the motor, this alarm will be
activated when the setting value of P1-57 is reached
after a period of time set by P1-58.
U,V,W wiring error
The wiring connections of U, V, W (for servo motor
output) and GND (for grounding) are in error.
Full closed-loop
excessive deviation
The position control deviation value of full closed-loop
exceeds the specified limit.
DSP firmware
upgrade
EE-PROM is not reset after the firmware version is
upgraded.
This fault can be cleared after setting P2-08 to 30 first,
and then setting P2-08 to 28 next and restarting the
servo drive.
