Chapter 11 Specifications
11-20 Revision January 2011

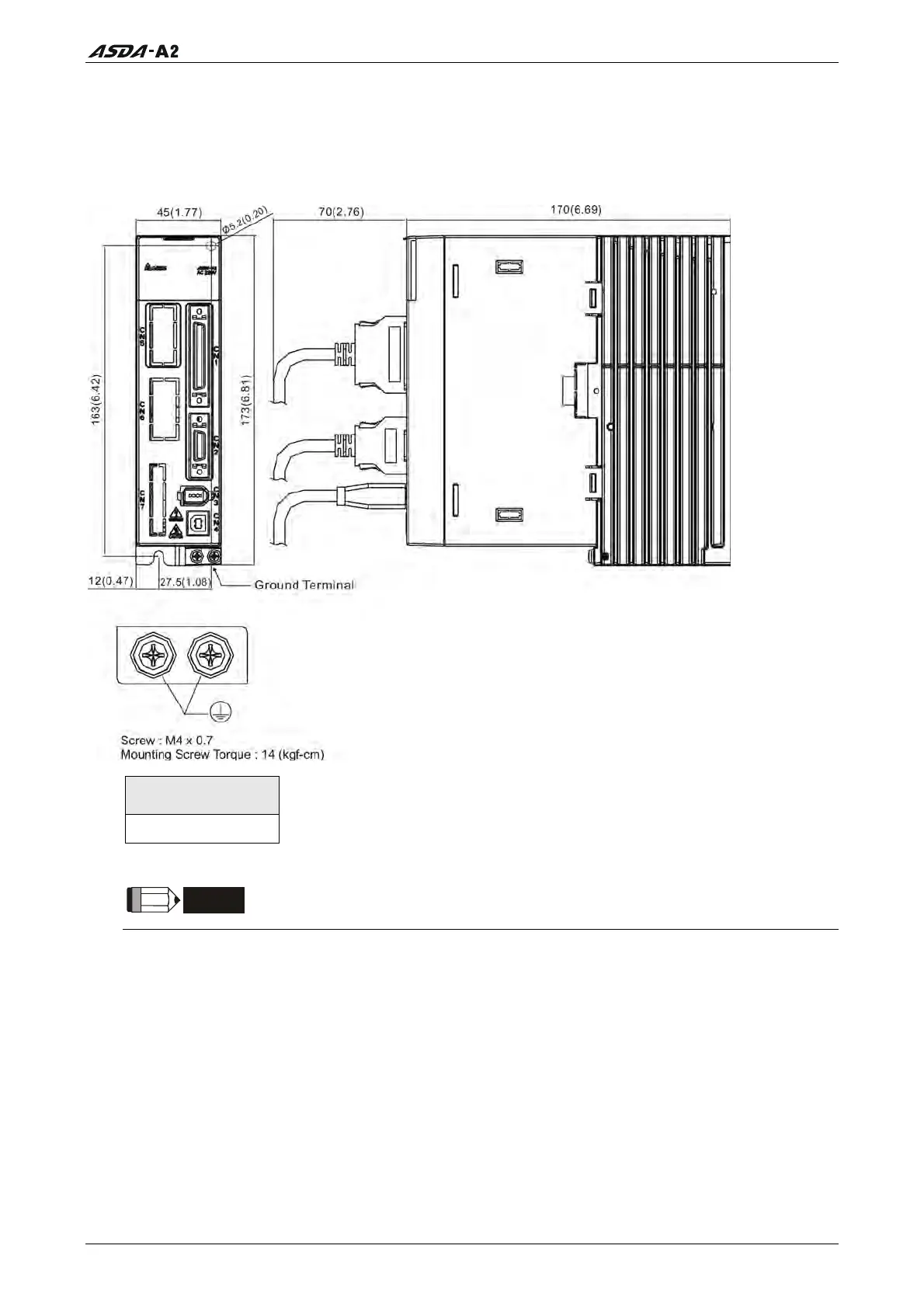

11.5 Dimensions of Servo Drive
11.5.1 220V Series
Order P/N: ASD-A2-0221; ASD-A2-0421 (100W ~ 400W)
WEIGHT
1.5 (3.3)
NOTE
1) Dimensions are in millimeters (inches); Weights are in kilograms (kg) and (pounds (lbs)).
2) Actual measured values are in metric units. Dimensions and weights in (imperial units) are
for reference only.
3) Dimensions and weights of the servo drive may be revised without prior notice.
