Delta Electronics ASDA-A2 Series

Chapter 3 Connections and Wiring
Revision January 2011 3-15

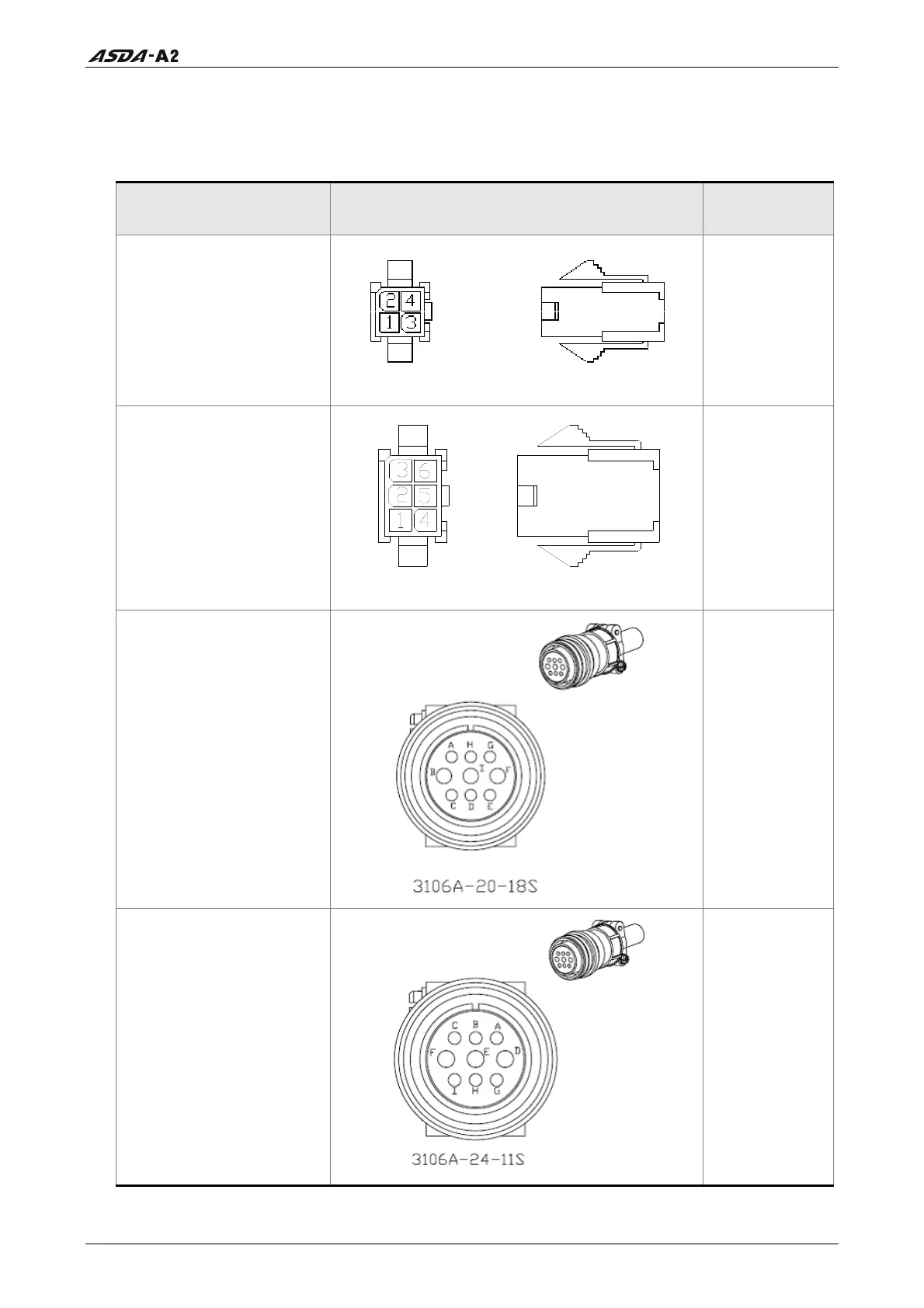

3.2.4 Motor Power Cable Connector Specifications
The boxes () in the model names are for optional configurations. (Please refer to section
1.2 for model explanation.)
Motor Model Name U, V, W / Electromagnetic Brake Connector
Terminal
Identification
ECMA-J10807S (750W)
HOUSING: JOWLE (C4201H00-2*2PA)
A
ECMA-J10807S (750W)
*：with brake
HOUSING：JOWLE (C4201H00-2*3PA)
B
ECMA-K11310S (1000W)
ECMA-K11315S (1500W)
ECMA-K11320S (2000W)
C
ECMA-L11830S (3000W)
ECMA-L11845S (4500W)
ECMA-L118553 (5500W)
ECMA-L118753 (7500W)
D
