Delta Electronics ASDA-A2 Series

Chapter 3 Connections and Wiring
3-22 Revision January 2011
3.3.2 400V series

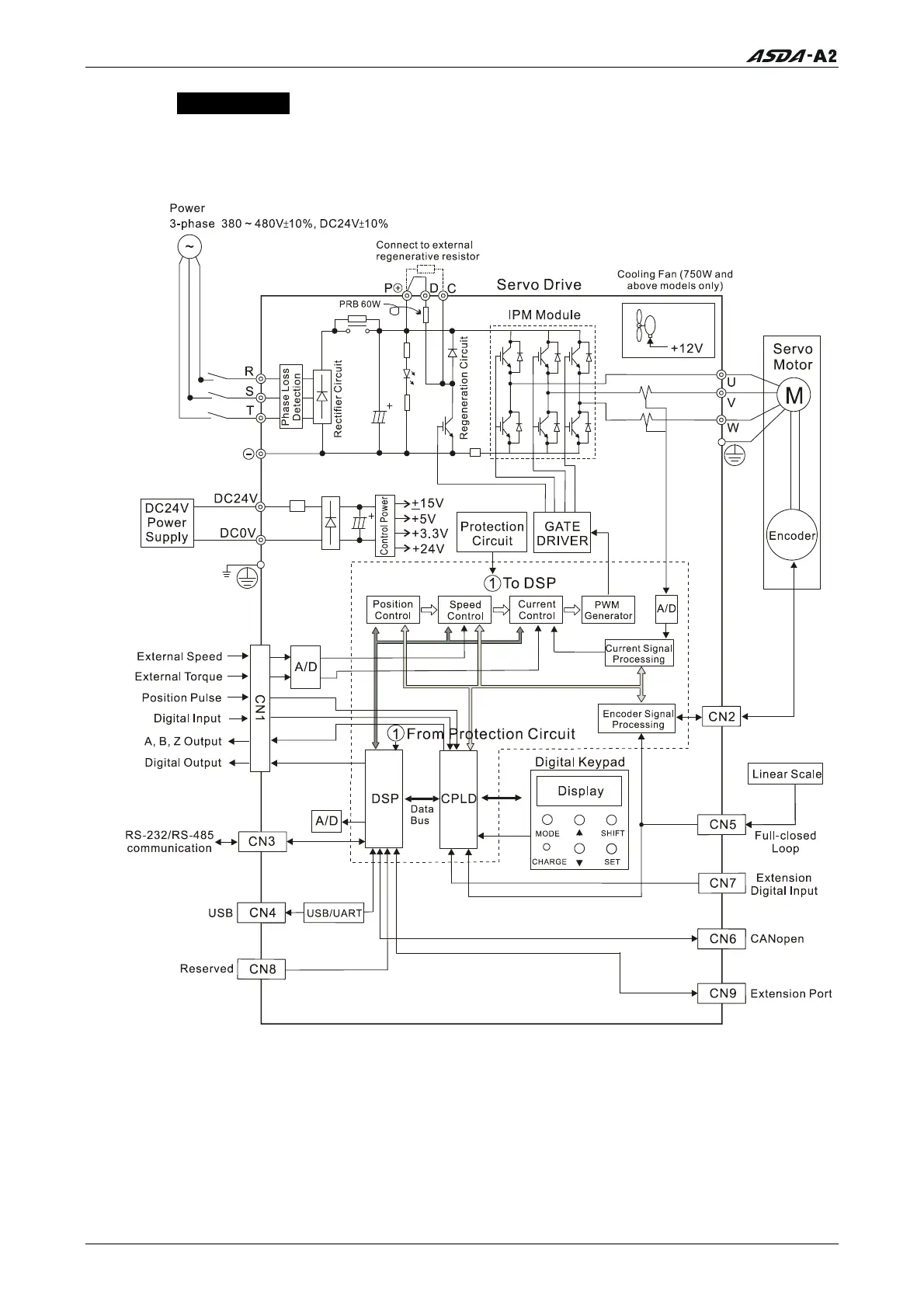

Figure 3.9 Basic Wiring Schematic of 750W to 1.5kW models
(With built-in regenerative resistor and fan)
