Chapter 3 Connections and Wiring
3-56 Revision January 2011
3.11 Standard Connection Example – 220V series

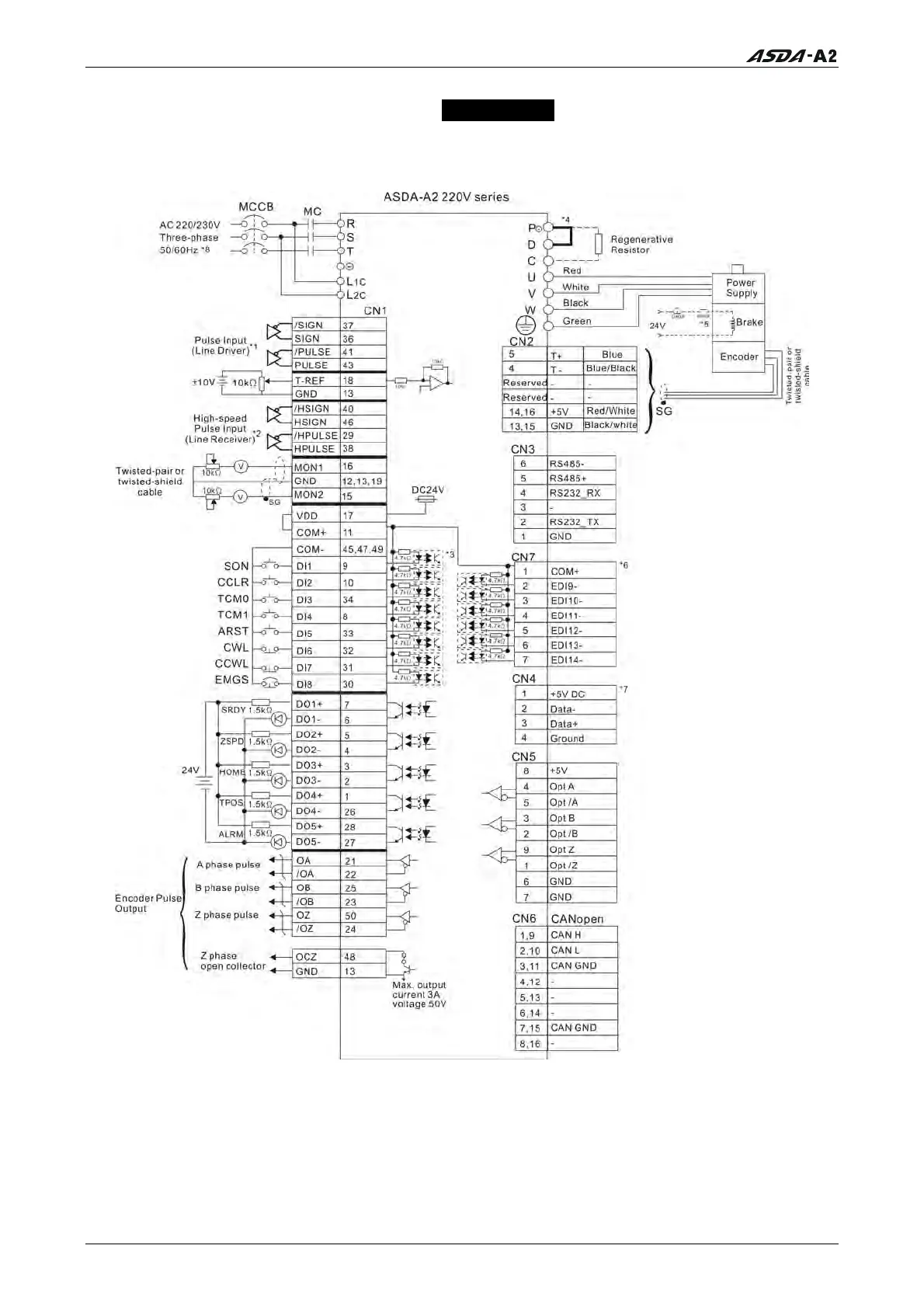

3.11.1 Position (PT) Control Mode
Please note:
*1 Please refer to C3 ~ C4 wiring diagrams in section 3.4.4.
*2 Please refer to C3 ~ C4 wiring diagrams in section 3.4.4.
*3 Please refer to C9 ~ C12 wiring diagrams (SINK / SOURCE mode) in section 3.4.4.
*4 400W and below drives do not provide built-in regenerative resistor.
*5 The coil of brake has no polarity.
*6 For extension digital inputs (DI) connections (CN7 is a optional part, not Delta standard supplied part.).
*7 For USB connection. It is used to connect to personal computer or notebook.
*8 Single -phase connections are for servo drives 1.5kW and below only.
