Chapter 2
Introduction
13
)LJXUH
N9

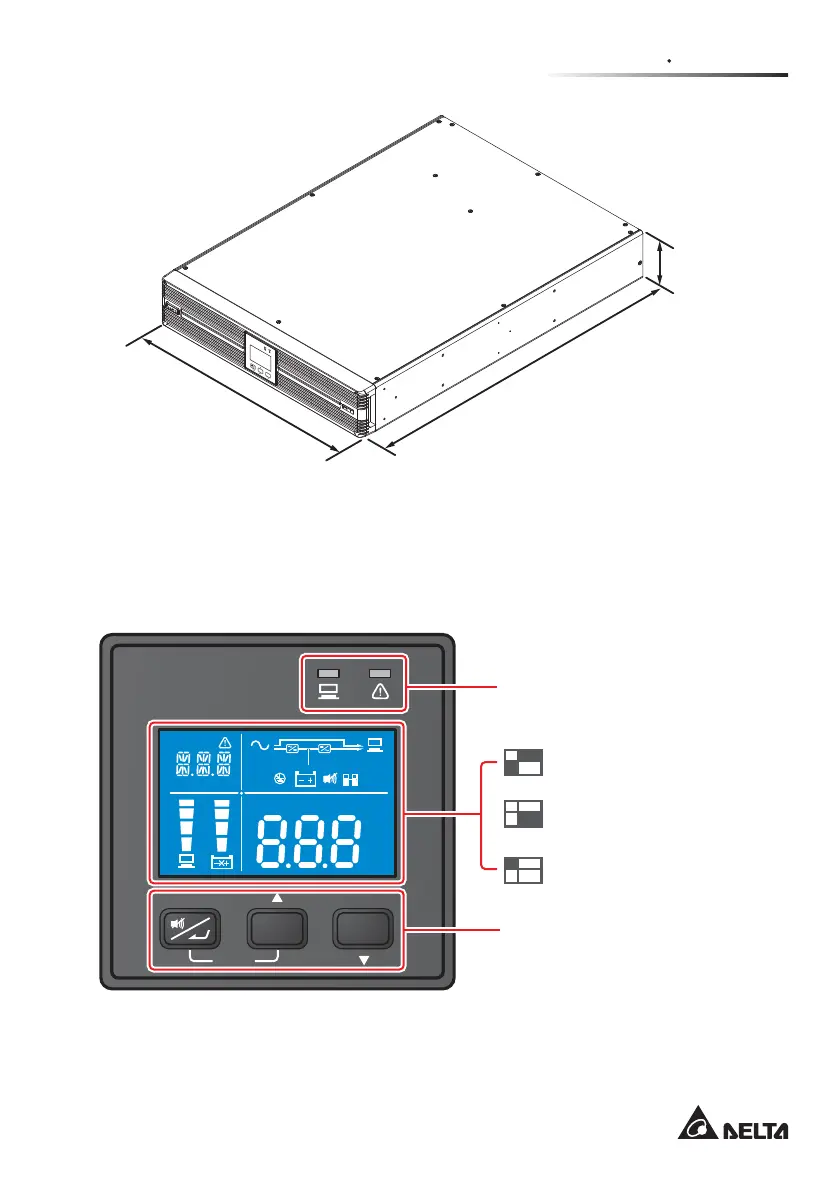

$([WHULRU'LPHQVLRQV
89mm
610mm
440mm
ON
OFF
SETUP
2.5
Operation Panel
ON
OFF
SETUP
Hz
KW
KVA
AH
MIN
MIN
V
V
%
IN
SET
IN
OUT
BATT
RUN TIME
°C
LOAD
TEST
ECO
LOAD 1
LOAD 2
2.5.1 LED Indicators
2.5.5 16-Segment Display
2.5.3 LCD Display
2.5.4 7-Segment Display
2.5.2 Multi-function Buttons
16
18
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 : Important Safety Instructions
5
Safety Instructions
5
Standard Compliance
10
Storage
10
Chapter 2 : Introduction
11
General Overview
11
Package Inspection
11
Functions & Features
15
Exterior & Dimensions
16
Operation Panel
17
LED Indicators
18
Multi-Function Buttons
18
LCD Display
21
7-Segment Display
23
16-Segments Display
25
Error Code Information
26
Rear Panel
28
Chapter 3 : Installation
30
Installation Data
30
Rack Mounting Procedures for the UPS and the Delta External Battery Pack (Optional)
31
Tower Mounting Procedures for the UPS and the Delta External Battery Pack (Optional)
33
Chapter 4 : Connections
36
Pre-Connection Warnings
36
Delta External Battery Pack (Optional) Connection
36
Communication Interface Connection
38
Critical Load Connection
38
Utility Power Connection
39
Chapter 5 : Operation Modes
40
Standby Mode
40
On-Line Mode
40
Bypass Mode
40
Battery Mode
40
ECO Mode
41
Frequency Converter Mode
41
Setup Mode
41
Chapter 6 : Operation
45
Start-Up Procedures
45
Shutdown Procedures
45
Cold Start
45
Silence Function
45
Battery Test
46
Alarm
46
De-Rating Power
46
Input Breaker
47
Generator Compatible
47
Chapter 7 : Communication Interfaces
48
Chapter 8 : Internal Battery Replacement
52
Chapter 9 : Optional Accessories
56
Chapter 10 : Maintenance
57
Ups
57
Batteries
57
Fan
58
Chapter 11 : Troubleshooting
59
