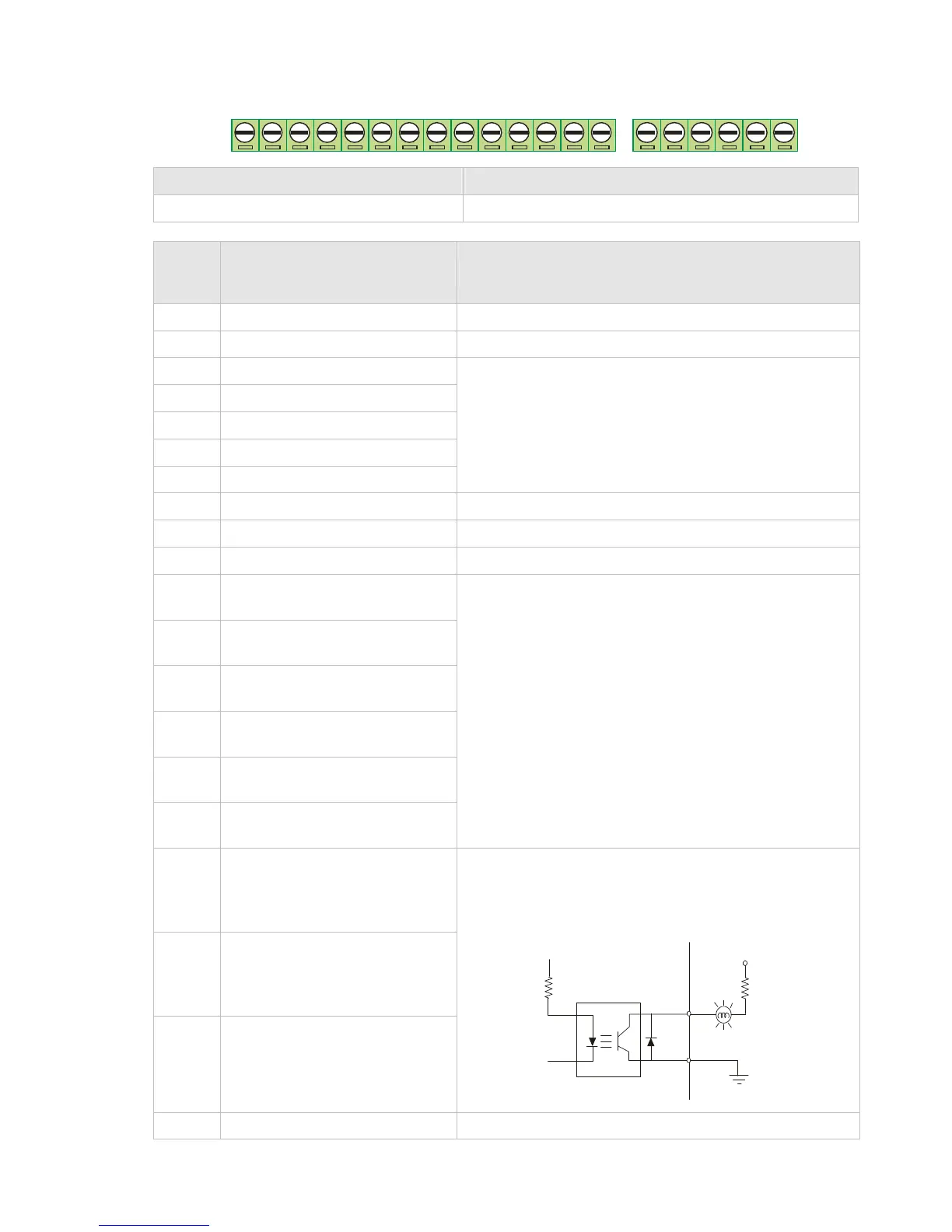

2-3 Control Circuit Terminal
RA1 RB1RC1
RA2
RB2RC2MO1MO2MO3MCMMI1MI2MI3MI4MI5CDOD24VCOMDCM
Torque Wire Gauge
5 kgf-com (6.9 in-lbf) 18-12 AWG (0.8107-3.332mm
2
)
Terminal
Symbol
Terminal Function
Factory Setting (NPN Mode)
OD
Door Open to Stop
OD-DCM: ON: Open ; OFF: Decelerate to stop
CD
Door Close to Stop
CD-DCM: ON: Close; OFF: Decelerate to stop
MI1
Multi-function Input 1
MI2
Multi-function Input 2
MI3
Multi-function Input 3
MI4
Multi-function Input 4
MI5
Multi-function Input 5
Refer to Pr. 02-01~02-05 for programming of
Multi-function Inputs 1~5.
ON: the input voltage is 24Vdc(Max: 30Vdc), input
impedance is 3.75kΩ
OFF: leakage current tolerance is 10μA.
COM Digital control signal common Common for digital inputs
+E24V Digital Signal Common +24V 80mA
DCM Digital Signal Common Common for digital inputs
RA1
Multi-function Relay1 output
(N.O.) a
RB1
Multi-function Relay1 output
(N.C.) b
RC1
Multi-function Relay1
common
RA2
Multi-function Relay2 output
(N.O.) a
RB2
Multi-function Relay2
common
RC2
Multi-function Output 1
(Photocoupler)
Resistive Load:
5A(N.O.)/3A(N.C.) 240VAC
5A(N.O.)/3A(N.C.) 24VDC
Inductive Load:
1.5A(N.O.)/0.5A(N.C.) 240VAC
1.5A(N.O.)/0.5A(N.C.) 24VDC
To output any monitoring signal including in operation ,
frequency attained, overload indicator…etc, please refer
to Pr.02-08~02-12 for MO selection.
MO1
Multi-function Output 1
(Photocoupler)
MO2
Multi-function Output 2
(Photocoupler)
MO3
Multi-function Output 3
(Photocoupler)
To output any monitoring signal including in operation ,
frequency attained, overload indicator…etc, please refer
to Pr.03-01for MO selection.
MO1~MO2-DCM
MO1~MO2
MCM
Internal Circuit
Max: 48Vdc
50mA
MCM Multi-function output common Max 48Vdc 50mA
* Analog control signal wiring size: 18 AWG (0.75 mm
2
) with shielded wire.
