4.2.3 Direct connection of 4 wire Pt100 sensors
4 wire Pt100 sensors can be soldered directly
to the pins of the flying female connector
without making use of the TP47 board. The 4
wires of the Pt100 sensors have to be soldered
as indicated in the figure on the left.
In order to use this type of probe it is
necessary to set up the menu item “Probe
Type” as described at page 10.
The P100 probe is recognized upon turning on
the instrument: connect the probe when the
instrument is switched off and then turn it on.

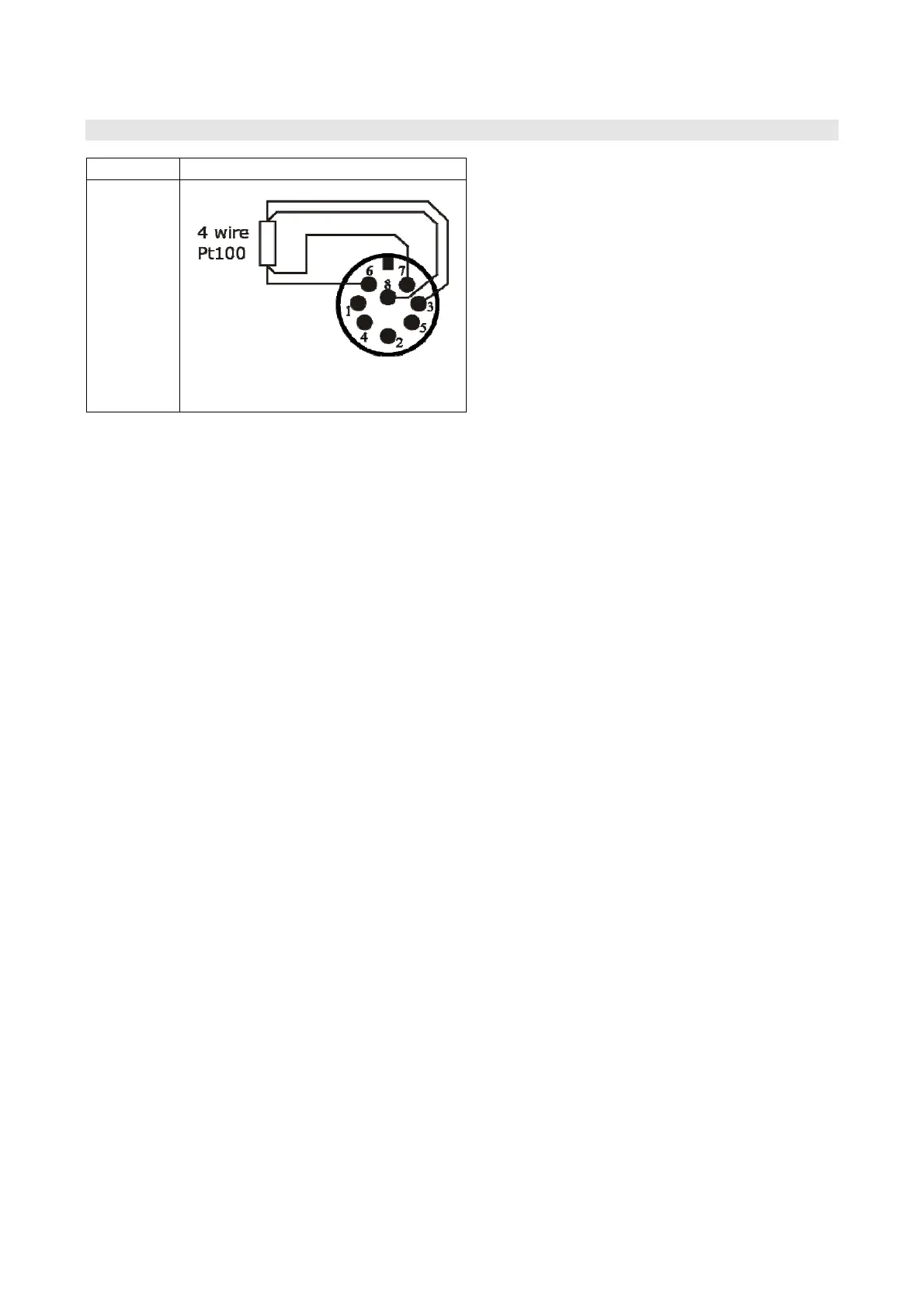

Sensor Direct soldering to the connector
Pt100
4 wires
View of the soldering side
of the flying female connector
