7. Records for Channels

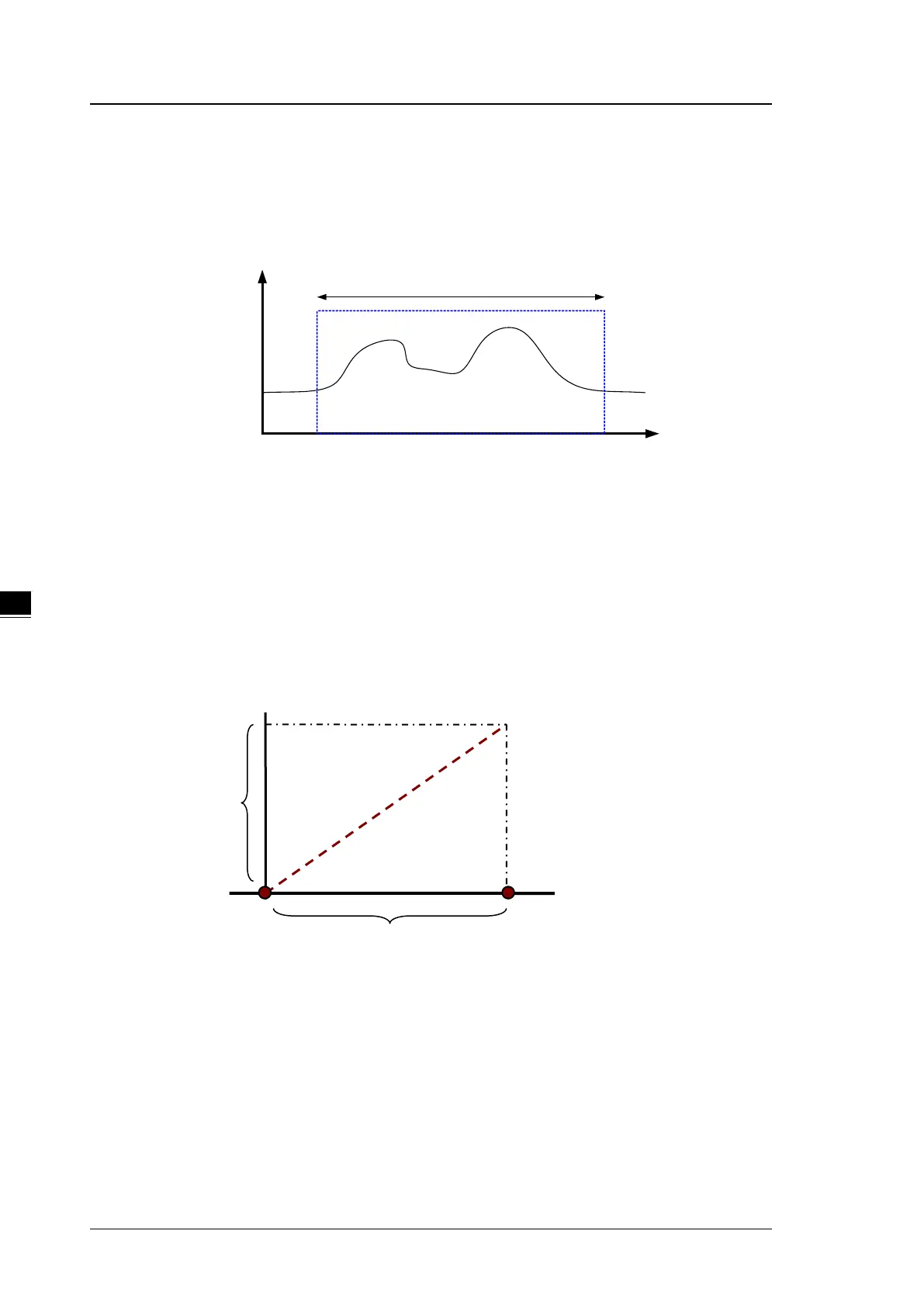

Record the input values of the cyclic sampling for each channel. The system saves up to 500 data
points and the recording time is 10 ms.
Instru cti on for recording Recording e nds
500 records of d ata
Time
Valu e of the chan nel
8. Scale range
When the format is floating-point, you can set the scale range. The analog output mode of a channel
has a corresponding digital range. Digital values correspond to analog outputs sent by the module. For
example, if the analog range is -10 V to +10 V, the digital range is -10.0 to +10.0, the HSP scale is 10.0,
and the LSP scale is -10.0. The digital values -10.0 to +10.0 correspond to the analog values -10 V to
+10 V, as the example below shows.
