Chapter 5 Analog Input/Output Module AS06XA
5- 19

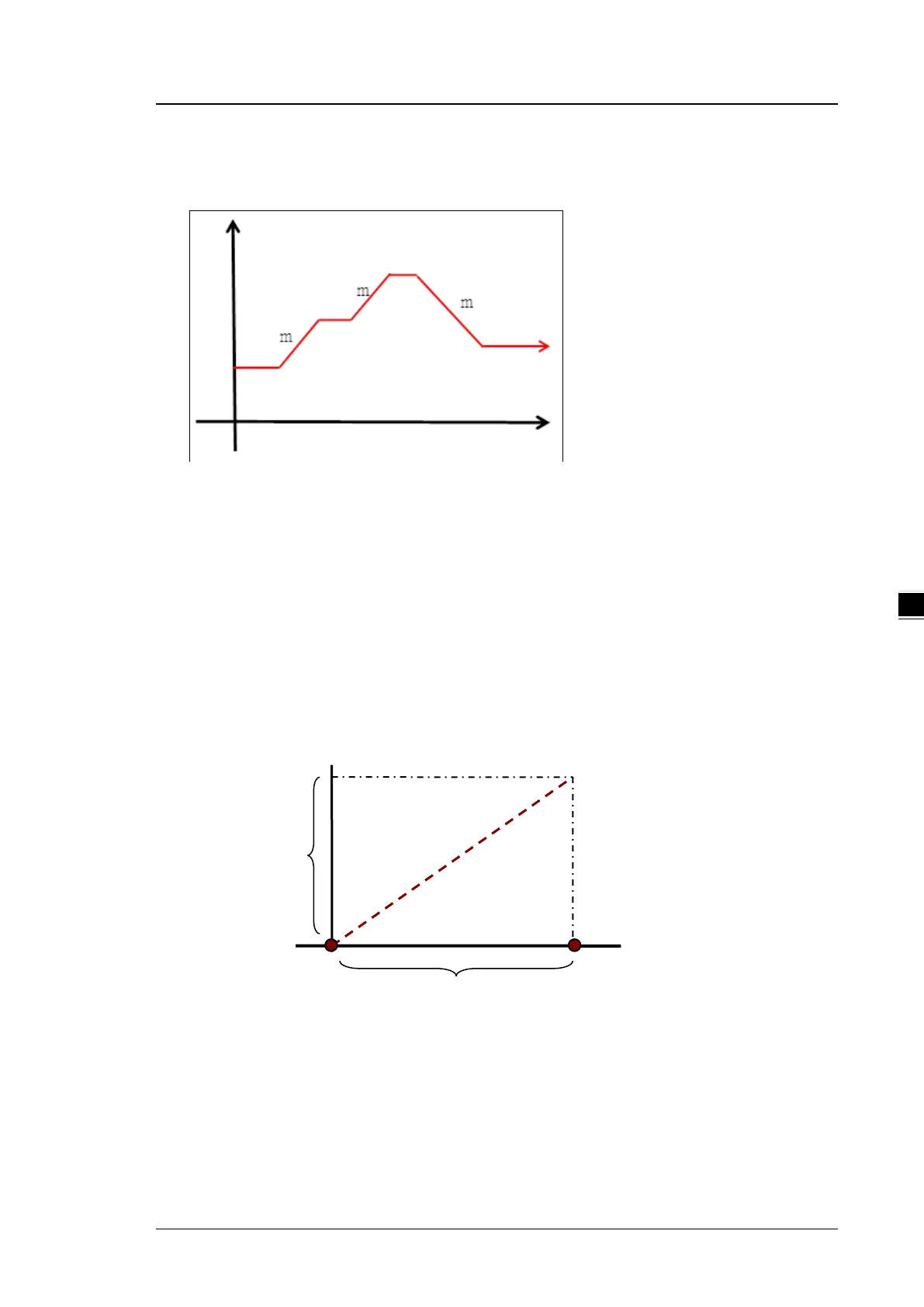

When the analog output signal changes, the system updates the value of the analog output according to
the value set in the slope, as shown in the image below.
*The output conversion time and the input channel sampling cycle are the same.
5. Scale Range
You can set the scale range when the format is floating-point. The analog output mode of a channel has
a corresponding digital range. Digital values correspond to analog outputs sent by the module. For
example, if the analog range is -10 V to +10 V, the digital range is -10.0 to +10.0, the HSP scale is 10.0,
and the LSP scale is -10.0. The digital values -10.0 to +10.0 correspond to the analog values -10 V to
+10 V, as the example below shows.
