9.4.2.3 Connecting to Delta PLC Scanner through EIP Builder
Through EIP Builder, an AS Series PLC (when acting as a scanner) can create an EtherNet/IP connection to
AS00SCM-A (when installed) on AS-FEN02. Below shows an example of AS Series PLC acting as a scanner to
create an EIP connection.

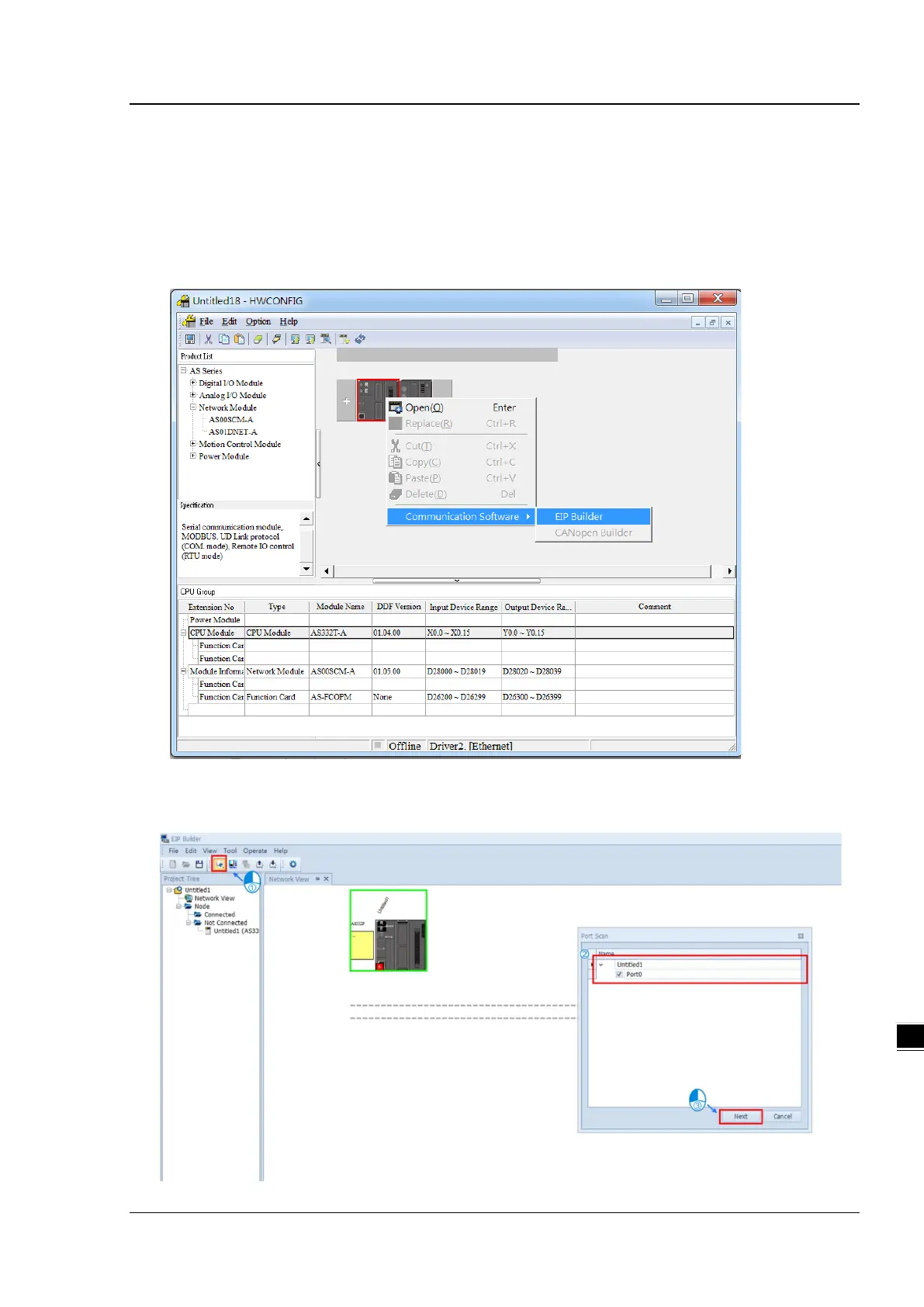

1. An AS Series PLC, AS-FEN02 and a computer can be connected together through an Ethernet knob. Configure
the parameters in HWCONFIG and right-click the CPU to open EIP Builder.
2. Scan the network to add AS-FEN02 (AS RTU) in EIP Builder. Drag the red block and drag it to the same network
(Network_0) as the AS Series PLC does. Double-click AS-FEN02 to open HWCONFIG and set the parameters
for AS-FEN02.
