AS Series Module Manual
9- 28
9.4.2.4 Connecting to 3
rd
Party PLC Scanner through EIP Builder
Through EIP Builder, a 3
rd
party PLC (when acting as a scanner) can create an EtherNet/IP connection to AS00SCM-
A (when AS-FEN02 is installed). Use the 3
rd
party PLC to connect to the computer and open EIP Builder to edit the
right side modules of AS00SCM-A.

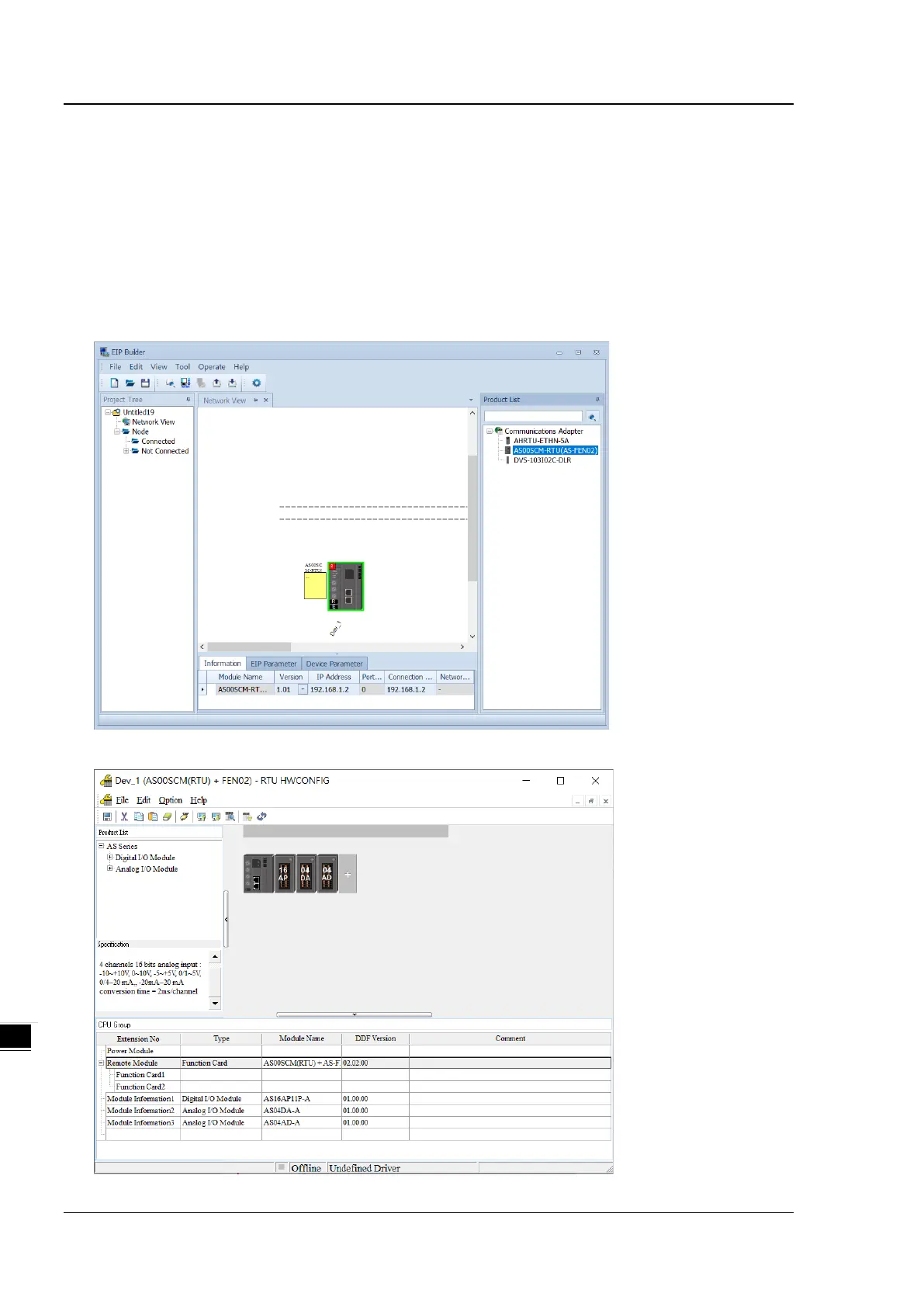

Editing via EIP Builder:
1. You can manually
or scan the network to add the AS00SCM(RTU) + AS-FEN02 to the network. Click
the remote module to open HWCONFIG to scan and download the parameters of the right side
modules of AS00SCM-A.
