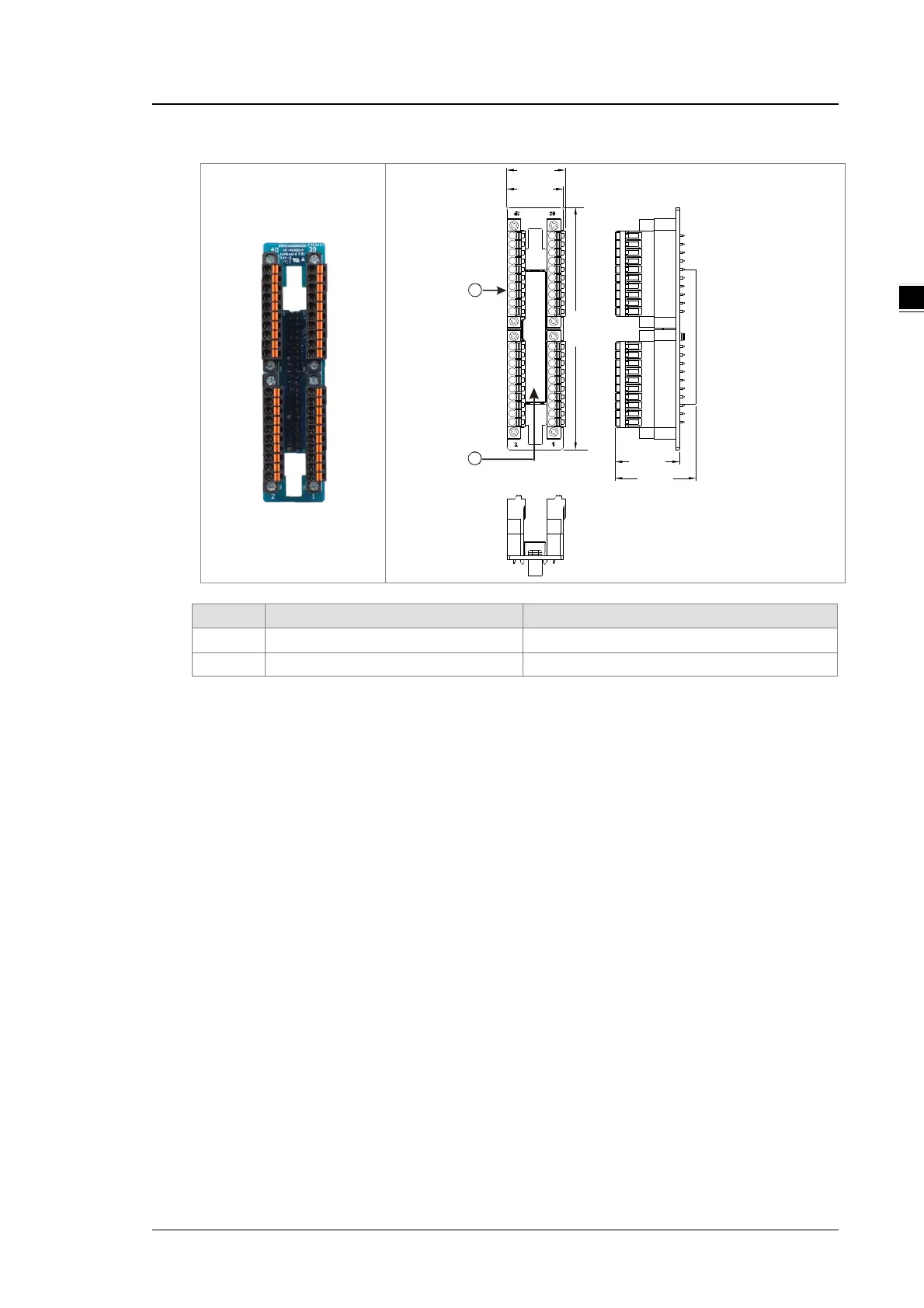

 Spring clamp/MIL connector terminal block UB-10-IO32D for AS32AM10N-A/AS32AN02T-A
23 6.
24 35.
26.9
33.7
101
1
2
Unit: mm
Number Name Description
1 Terminal block for output
Terminal block
2 40-pin MIL connector Connects the module and the wiring module
