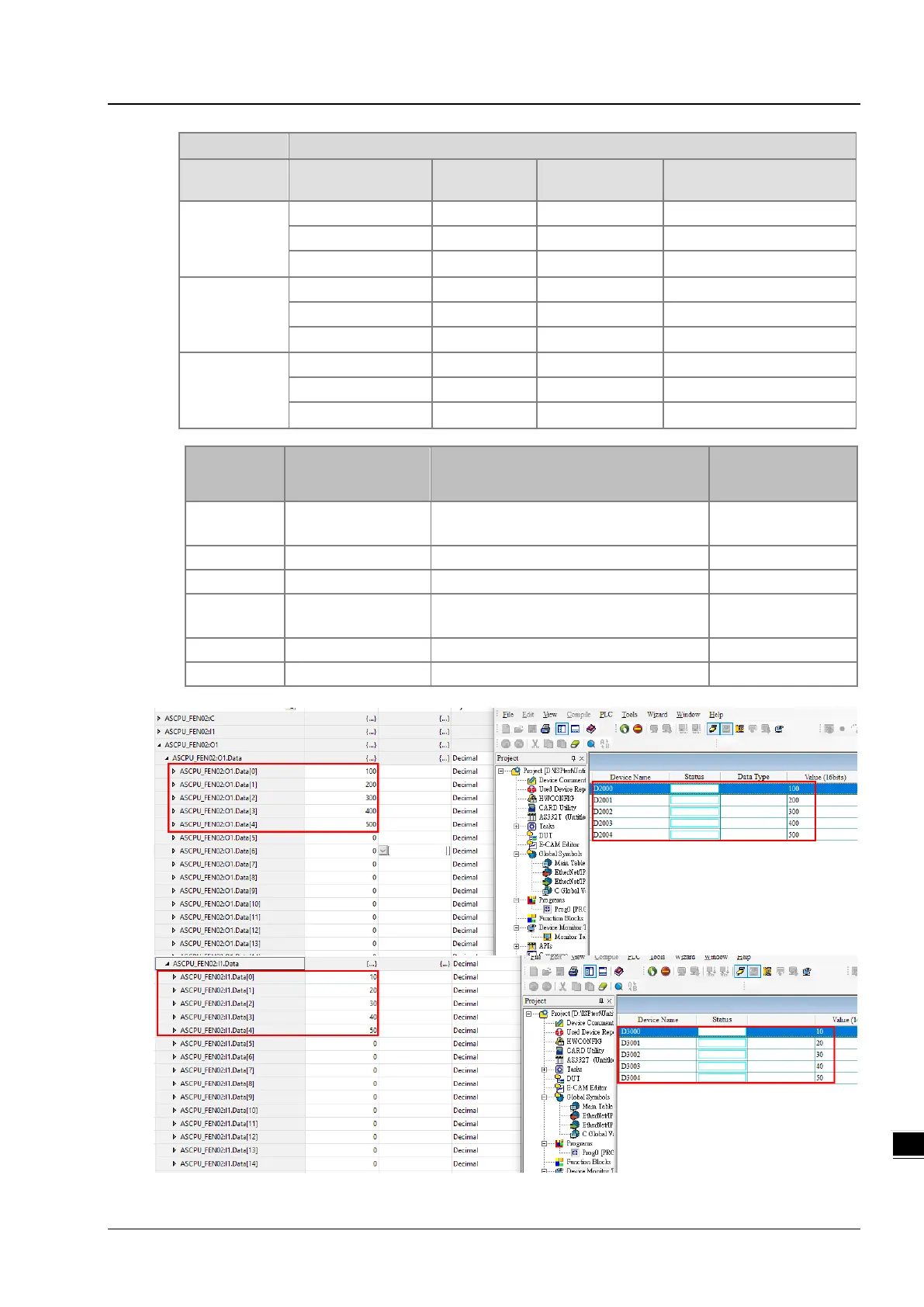

Delta AS02HC-A

Chapter 10 Function Cards
10-17
10
I/O Message Connection
Connection No. Function
Instance
Attribute
Length Defaults
Connection 6
Input (TO) 0x6F 100 words D3500~D3599
Output (OT) 0x6E 100 words D2500~D2599
Configuration 0x85 8 words Refer to the table below
Connection 7
Input (T

O)
0x71
100 words
D3600~D3699
Output (OT) 0x70 100 words D2600~D2699
Configuration 0x86 8 words Refer to the table below
Connection 8
Input (T

O)
0x73
100 words
D3700~D3799
Output (O

T)
0x72
100 words
D2700~D2799
Configuration 0x87 8 words Refer to the table below
Configuration
address
Data type Description
Defaults
(Connection 1)
Word[0] UINT
Input corresponding device
0: D, 1: X, 2: Y
0
Word[1]
UINT
Reserved
200
Word[2-3]
DWORD
Input corresponding device number
3000
Word[4] UINT
Output corresponding device
0: D, 2: Y
0
Word[5] UINT Reserved 200
Word[6-7]
DWORD
Output
corresponding device number
2000
