Delta AS02HC-A

AS Series Module Manual
11-24
11

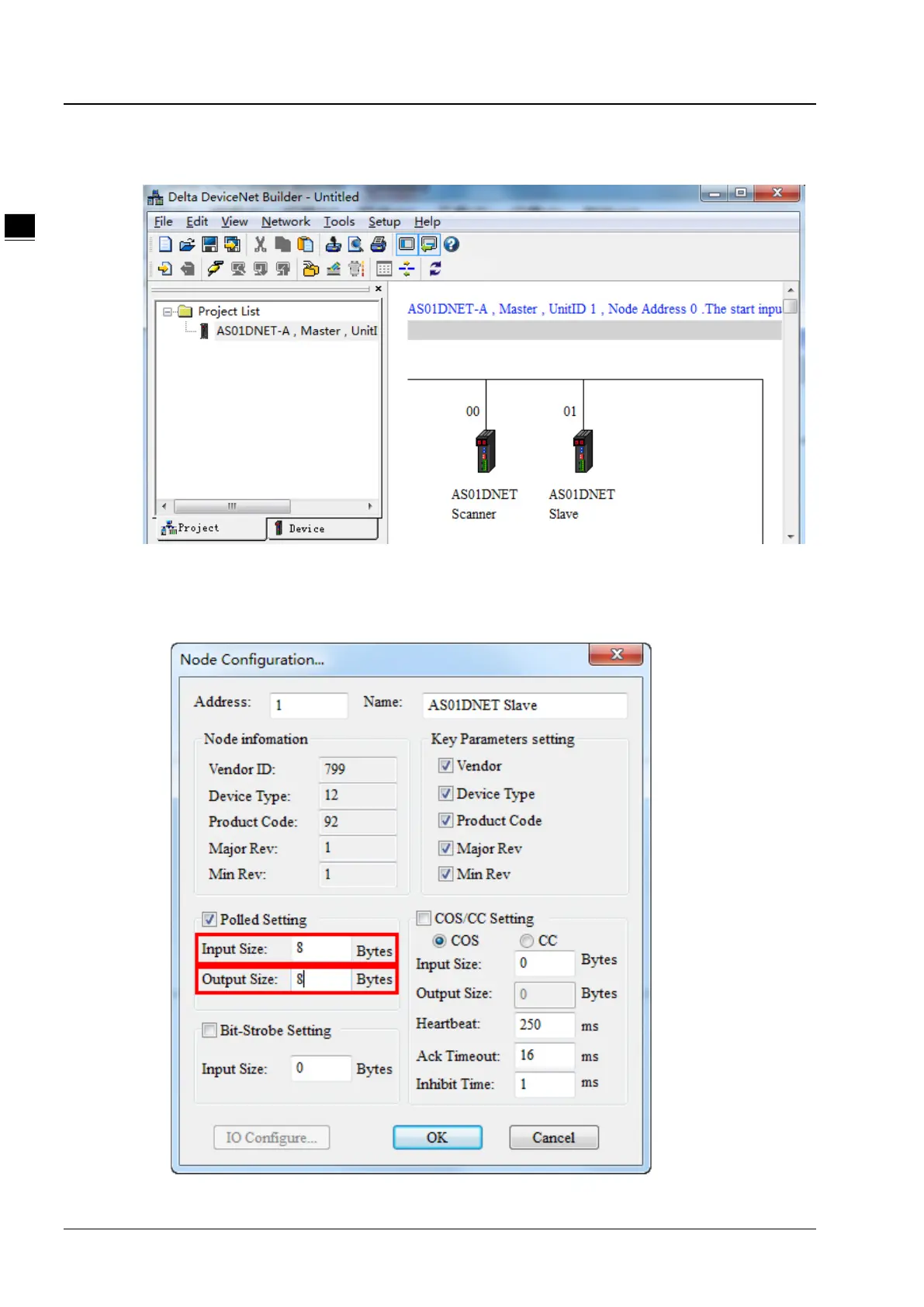

6. After scanning is finished, all node icons and device names which have been scanned in the network will
appear on the following interface. The node address of AS01DNET-A is 00 in this example.
7. Double click the icon of AS01DNET Slave. Then the Node Configuration… dialogue box appears. Input Size
and Output Size are both set to 8 bytes. Click OK to finish the setting.
