11.5.4.2.2. Main Configuration Page of AS01DNET (RTU)

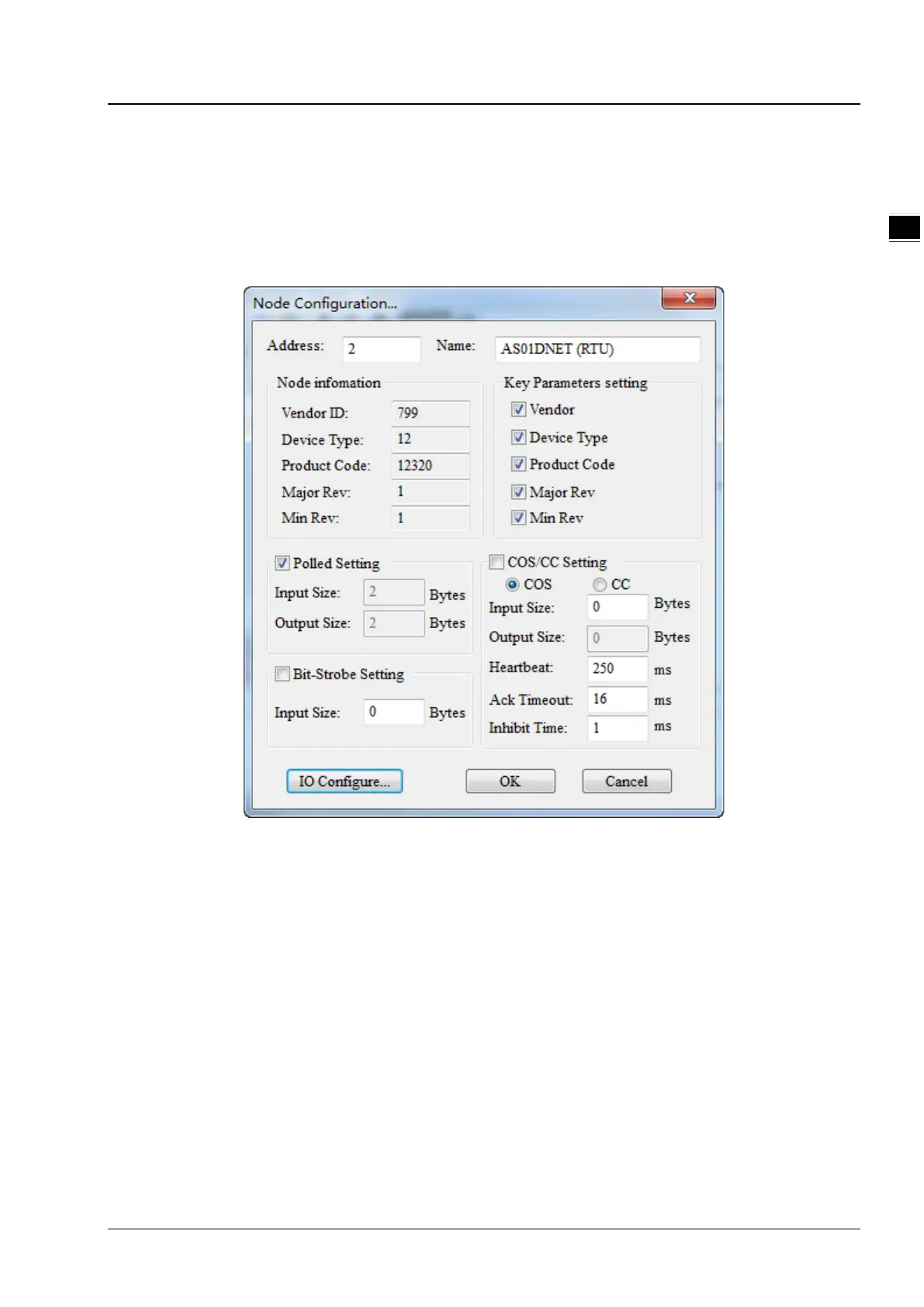

1. After scanning is finished, double click the AS01DNET (RTU) node in the network. Then the Node Configuration…
window comes out. The polled transmission is supported with default input data size of 2 bytes and output data size of
2 bytes which are mapping address lengths of control word and status word of AS01DNET (RTU) respectively.
Input Size and Output Size under Polled Setting mean the lengths of AS01DNET (RTU) parameters which are
mapped in the master.
