AS Series Module Manual
5- 6
(Full Temperature Range)
Hardware Resolution 12 bits
Permissible Load
Impedance
≦550 Ω

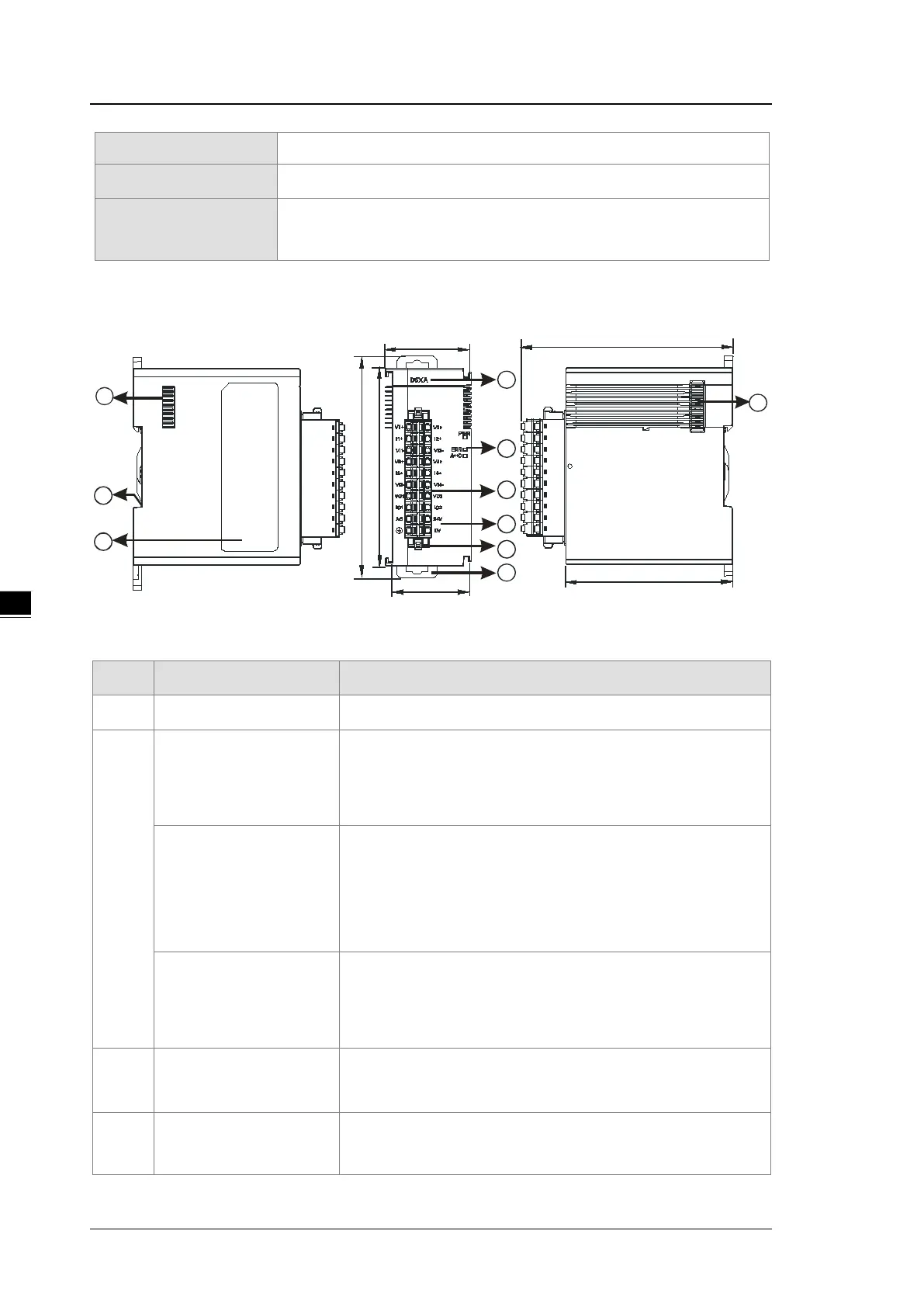

5.2.2 Profile
38.2
35
88
98.3
1
4
5
2
3
6
7
8
9
95
75
7
Unit: mm
Number
Name Description
1 Model Name Model name of the module
2
RUN LED Indicator
Operating status of the module
ON: the module is running.
OFF: the module is not running.
ERROR LED Indicator
Error status of the module
ON: a serious error exists in the module.
OFF: the module is operating normally.
Blink: a minor error exists in the module.
Analog-to-Digital
Conversion Indicator
Conversion status
Blinking: conversion is in process.
OFF: conversion has stopped.
3 Removable Terminal Block
Inputs are connected to transducers.
Outputs are connected to loads to be driven.
4
Arrangement of the
Input/Output Terminals
Arrangement of the terminals
