Delta AS08AD-C

AS Series Module Manual
11-40
11

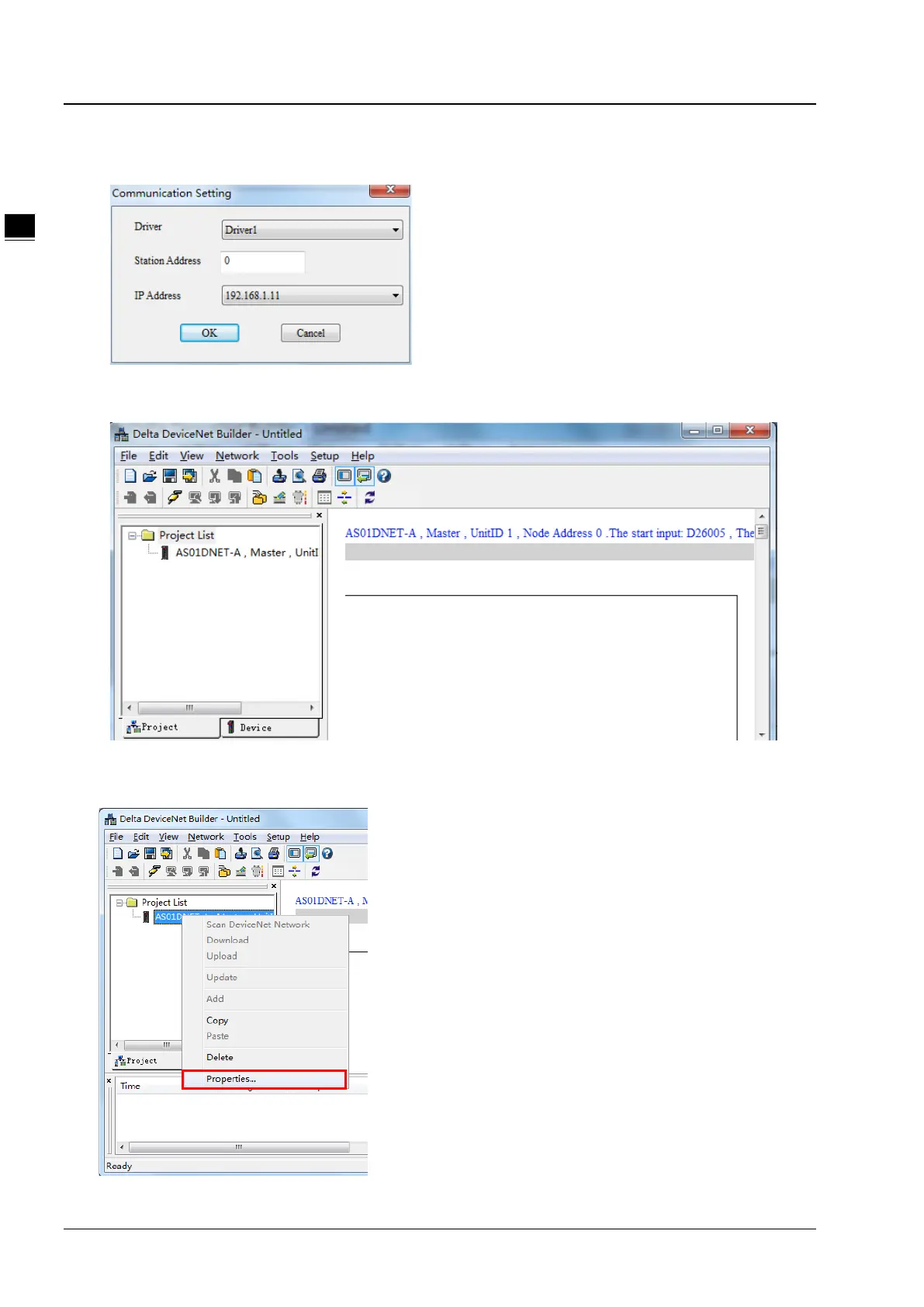

4. Selecting Setup>> Communication Setting, the following dialog box appears. Select the driver for connection of
AS PLC and PC as below. Click OK to finish the selection of Driver.
5. Click Network >> Online to scan the connected master.
6. Click Project List>>Properties. Then the Properties dialog box appears. Select Slave mode and then click OK.
