Delta AS08AD-C

AS Series Module Manual
11-66
11

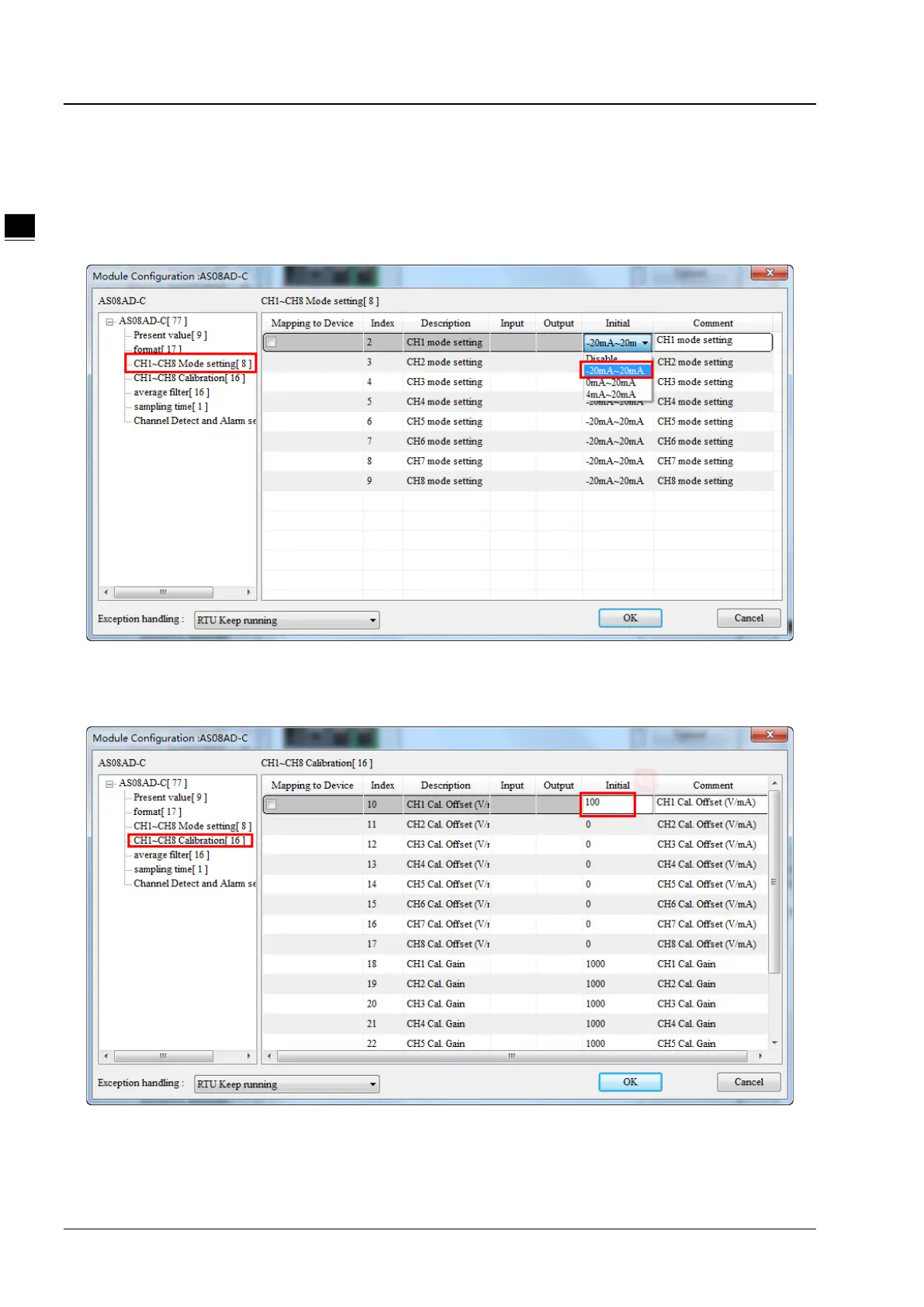

Generally, the settings for I/O module parameters and device mappings can be made in the following three cases.
Case 1: Select one appropriate parameter value from the drop-down list in the Initial column, e.g. select -20Ma~+20mA
as channel 1 input mode of AS08AD-C.
Case 2: Manually enter the value for the parameter to change in the Initial column, e.g. write 100 for CH1 Cal.Offset of
AS08AD-C).
