Model: VFB25ACH / VFB25ADH / VFB25AEH

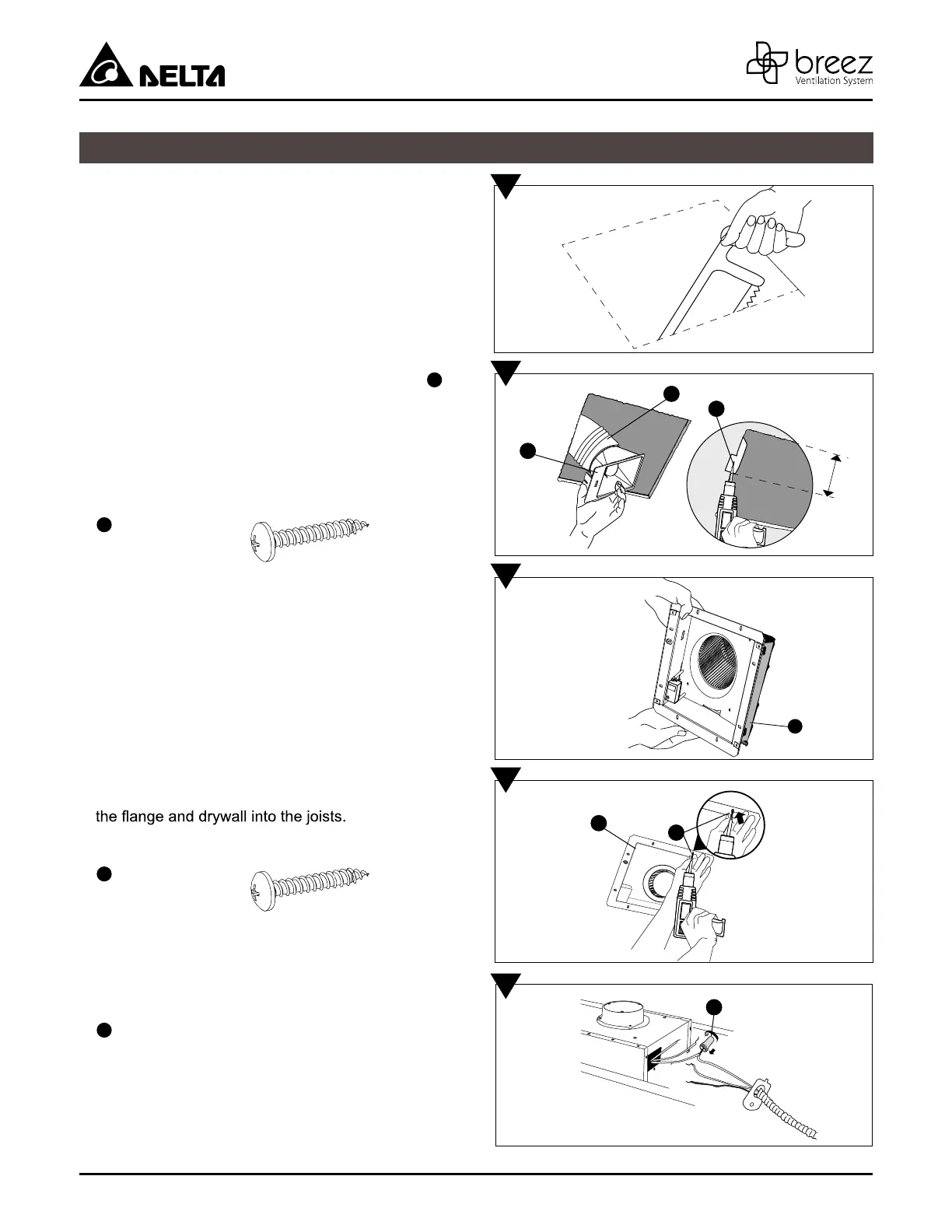

ASSEMBLY INSTRUCTIONS
3. If this fan is not replacing an old fan, be sure to cut
a 10.25 in. x 10.25 in. opening for the fan body
❶
.
4. Place the duct connector
❻
through the ceiling cut
out. Connect a 4 in. circular duct (not supplied)
a
and vent to the outside. Secure it with duct tape
(not supplied) or clamp (not supplied) to make
connection secure and air tight. Attach the duct
connector to the ceiling with one long wood screw.
Hardware
A
Long wood screw
5. Insert fan body
❶
into the ceiling cut out making
sure to align the duct connector with the fan body
❶
.
6. Secure the fan body
❶
from below using long wood
screws (provided). Insert at least 4 screws through
Hardware
A
Long wood screw
7. Remove fan junction box cover. Using wire nuts
(not supplied), connect house wires to fan wires
a
as shown in the wiring diagram on page 4. Wire
connections are as follows: black to live switch wire,
white to neutral, green to ground.
8. Turn on the power source. Check fan for any
abnormal sound or vibration.
a
1
1
A
A
a
9.4"
9.4"
10.25 in.
10.25 in.
6
3.5 in.
3
4
5
6
7
