Delta DVP-EH3 User Manual

- 3 -
Input Point
#1：For DVP32EH00M3/MT, the bandwidth of the two differential input points X0, X1, X4, and
X5 is 200kHz.
#2：The bandwidth of the input points X0, X1, X4, X5, X10, X11, X14, and X15 is 200kHz
(excluding X10 and X11 on DVP20EH3).
#3：For DVP20EH00R3/T3, the bandwidth of the input points X10 and X11 is 20kHz.
#4：The bandwidth of the input points X2, X3, X6, X7, X12, X13, X16, and X17 is 10kHz.
#5：X20 and above on EH3 are normal input points.
#6：The filter times of X0~X7 and X10~X17 can be adjusted by D1020 and D1021
respectively within 0~60ms.

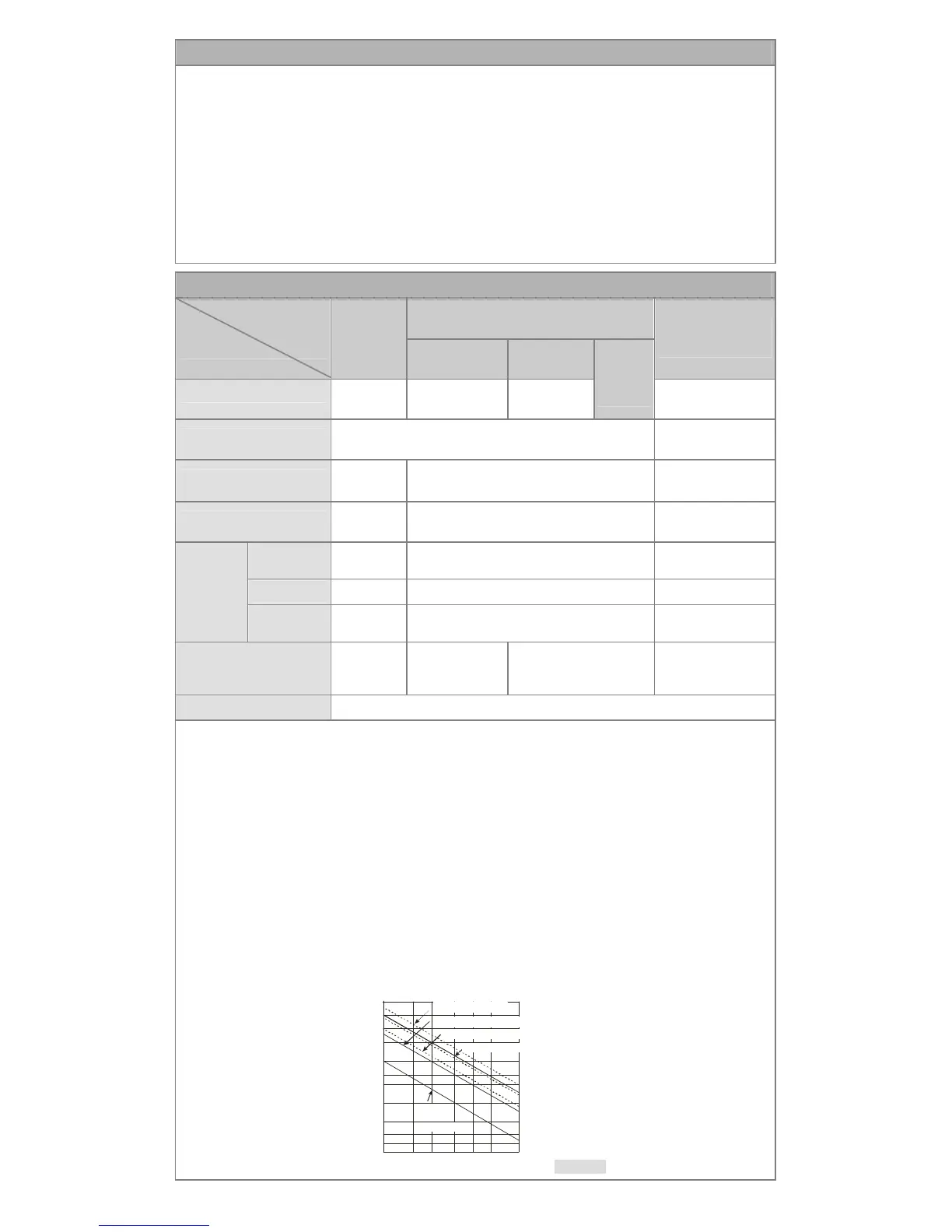

Output Point
Single common port
transistor output
Spec.
Items
Two
differential
outputs
#1
High speed
#2
Low speed
#3
Single common
port relay output
Max. frequency
200kHz 200kHz 10kHz
Normal
output
#4
Load ON/OFF
control
Minimum load -
2mA/DC power
supply
Working voltage 5VDC 5 ~ 30VDC
＜250VAC,
30VDC
Insulation Line Driver Photo coupler isolation
Magnetic
isolation
Resistive < 25mA 0.5A/1 point (4A/COM)
2A/1 point
(5A/COM)
Inductive - 12W (24VDC)
#5
Maximum
load
Lamp - 2W(24VDC) 20WDC/100WAC
Max. output response
time
0.2μs 0.2μs
OffOn: 20μs
OnOff: 30μs
10ms
Over-current protection
N/A
#1：For DVP32EH00M3, the bandwidth of the differential output points Y0~Y3 is 200kHz, and
the other output points are relay output points. For DVP32EH00MT, the bandwidth of the
differential output points Y0~Y3 is 200kHz, and the other output points are transistor
output points.
#2：For DVP40/48/64/80EH3, the bandwidth of the output points Y0~Y3, Y4 and Y6 is
200kHz. For DVP16/20EH3, the bandwidth of the output points Y0 and Y2 is 200kHz.
For DVP32EH3, the bandwidth of the output points Y0, Y2, Y4, and Y6 is 200kHz.
(DVP32EH3 has been upgraded since December 2013.)
#3：For DVP40/48/64/80EH3, the bandwidth of the output points Y5 and Y7 is 10kHz. For
DVP16/20EH3, the bandwidth of the output points Y1 and Y3~Y7 is 10kHz. For
DVP32EH3, the bandwidth of the output points Y1, Y3, Y5, and Y7 is 10kHz.
#4：Y10 and above on EH3 are normal output points.
#5：Life curves for relays
Contact Current(A)
20
0.5
0.1
0.2
30
50
0.3 0.7 1 2
200
300
500
100
1000
2000
3000
O
p
e
r
a
t
i
o
n
(
X
1
0
)
3
120VAC Resistive
30VDC Inductive(t=7ms)
240VAC Inductive(cos 0.4) ψ =
120VAC Inductive(cos =0.4) ψ
30VDC
Inductive
(t=40ms)
[ Figure 3 ]
