Delta DVP-EH3 User Manual

- 7 -
○
3
Fuse: Uses 5 ~ 10A fuse at the shared terminal of output contacts to protect the output
circuit
○
4
Transient voltage suppressor: To extend the life span of contact.
1. Diode suppression of DC load: Used when in smaller power (Figure 11)
2. Diode + Zener suppression of DC load: Used when in larger power and frequent On/Off
(Figure 12)
○
5
Incandescent light (resistive load) ○
6
AC power supply
○
7
Manually exclusive output: For example, Y3 and Y4 control the forward running and reverse
running of the motor, forming an interlock for the external circuit, together with the PLC
internal program, to ensure safe protection in case of any unexpected errors.
○
8
Neon indicator
○
9
Absorber: To reduce the interference on AC load (Figure 13)

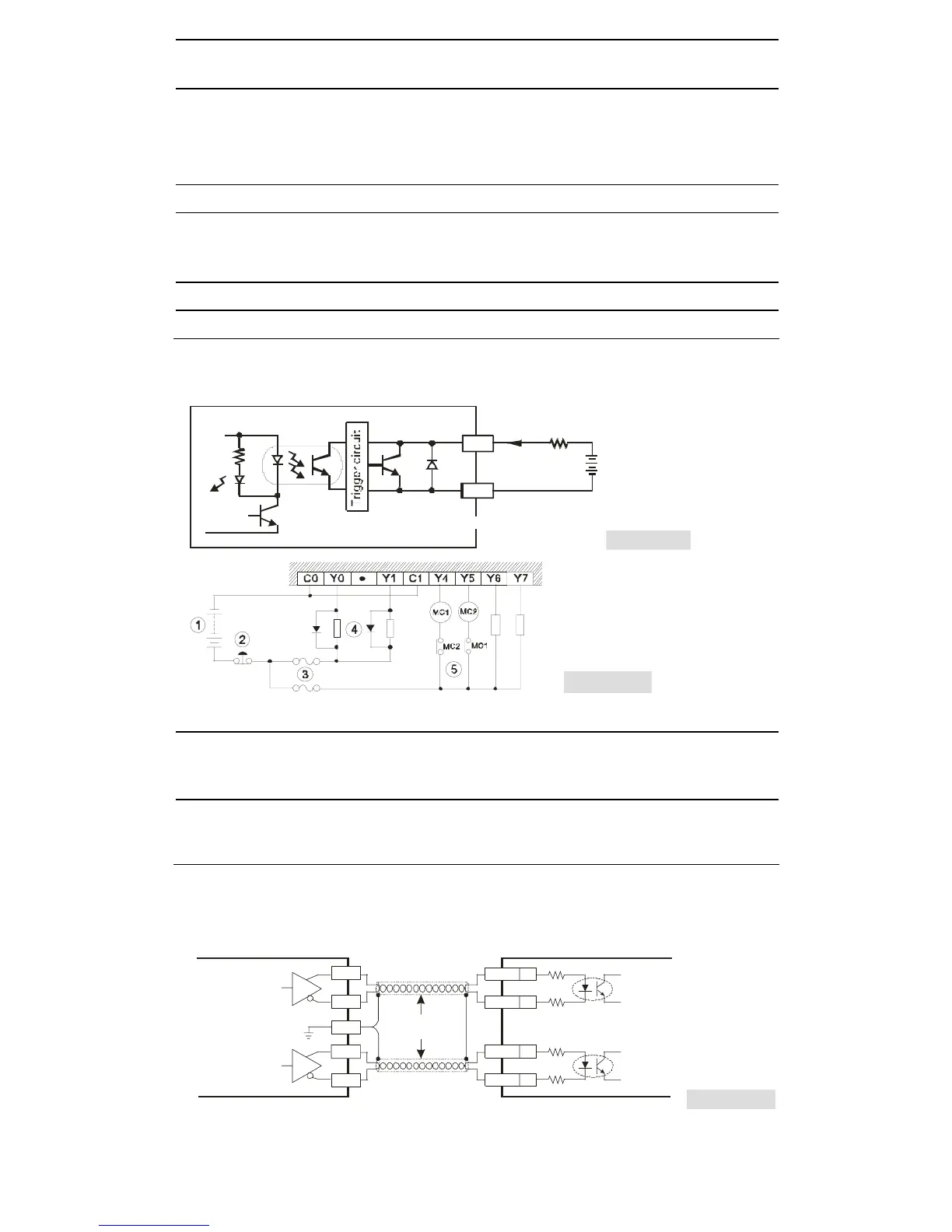

y Transistor (T) output circuit wiring
NPN type:
TRANSISTOR OUTPUT
[ Figure 14 ]
<0.3A
C0
Y0
LOAD
LED
[Figure 15]
○
1
DC power supply ○
2
Emergency stop ○
3
Circuit protection fuse
○
4
The output of the transistor model is “open collector”. If Y0/Y1 is set to pulse output, the
output current has to be bigger than 0.1A to ensure normal operation of the model.
z Diode suppression: Used when in smaller power (Figure 15)
○
5
Manually exclusive output: For example, Y10 and Y11 control the forward running and
reverse running of the motor, forming an interlock for the external circuit, together with the
PLC internal program, to ensure safe protection in case of any unexpected errors.
 Wiring of Differential Output
y DVP32EH00M3/MT differential output with ASDA-A & A+, ASDA-A2 series driver
Y0
Y1
DV P
3
2
E
H
0
0
M
3
/
M
T diffe
r
e
n
tial output
Driver
/P L S
PL S
/S IG N
SIGN
Circuit f or
Pho to coup le
T wisted p ai r
cabl e
Circuit f o r
Photoco upl e
43
41
36
37
SG0
Y0+
Y0 -
Y1+
Y1 -
[ Figure 16 ]

Delta DVP-EH3 Specifications

General

Brand	Delta
Model	DVP-EH3
Category	Controller
Language	English
