Delta E6-TL-US

13

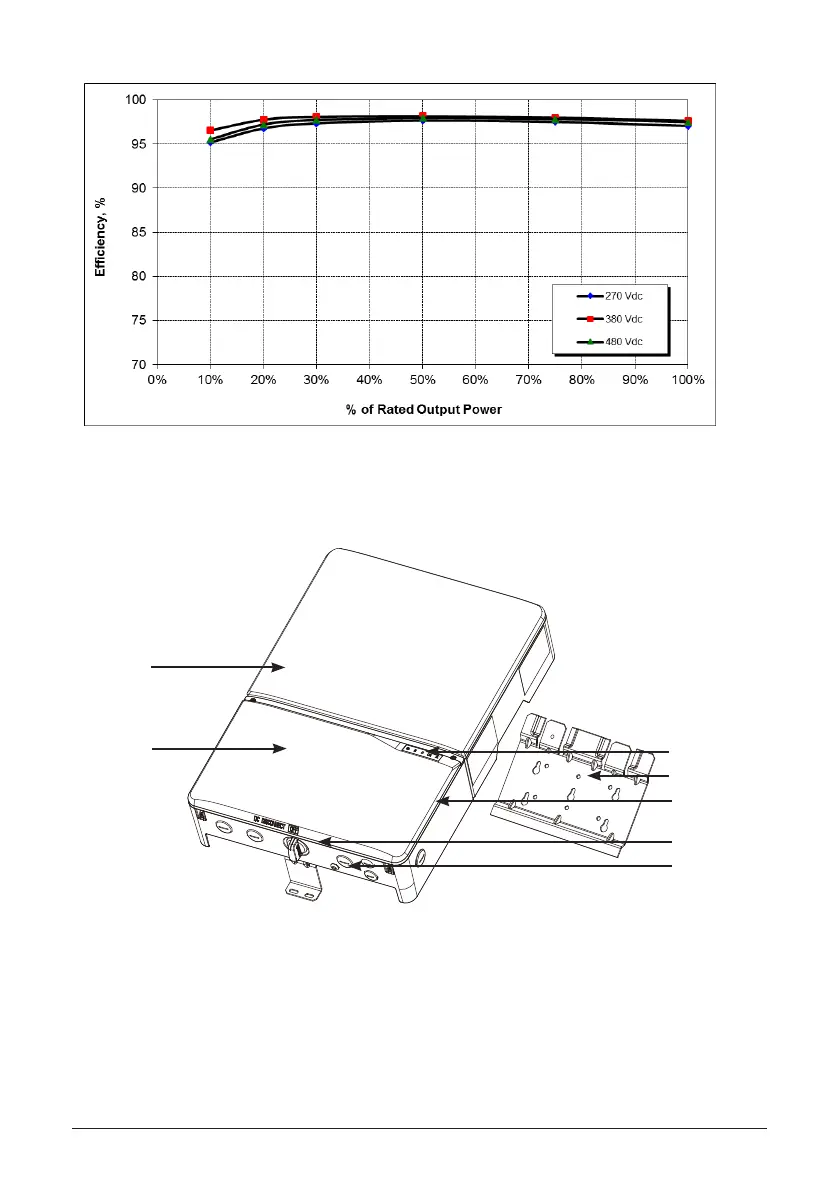

Figure5:E󰀩ciencyplotofE8-TL-US
2.7 Equipment overview
(1) Inverter Power Box
(2) Wiring Box Cover
(3) LED indicator
(4) Mounting Plate
(5) Wiring Box
(6) Lockable DC Disconnect
(7) Conduit Plugs
Figure 6: Exterior view of nverter main components
(1)
(3)
(4)
(5)
(2)
(7)
(6)
