5.2 Button

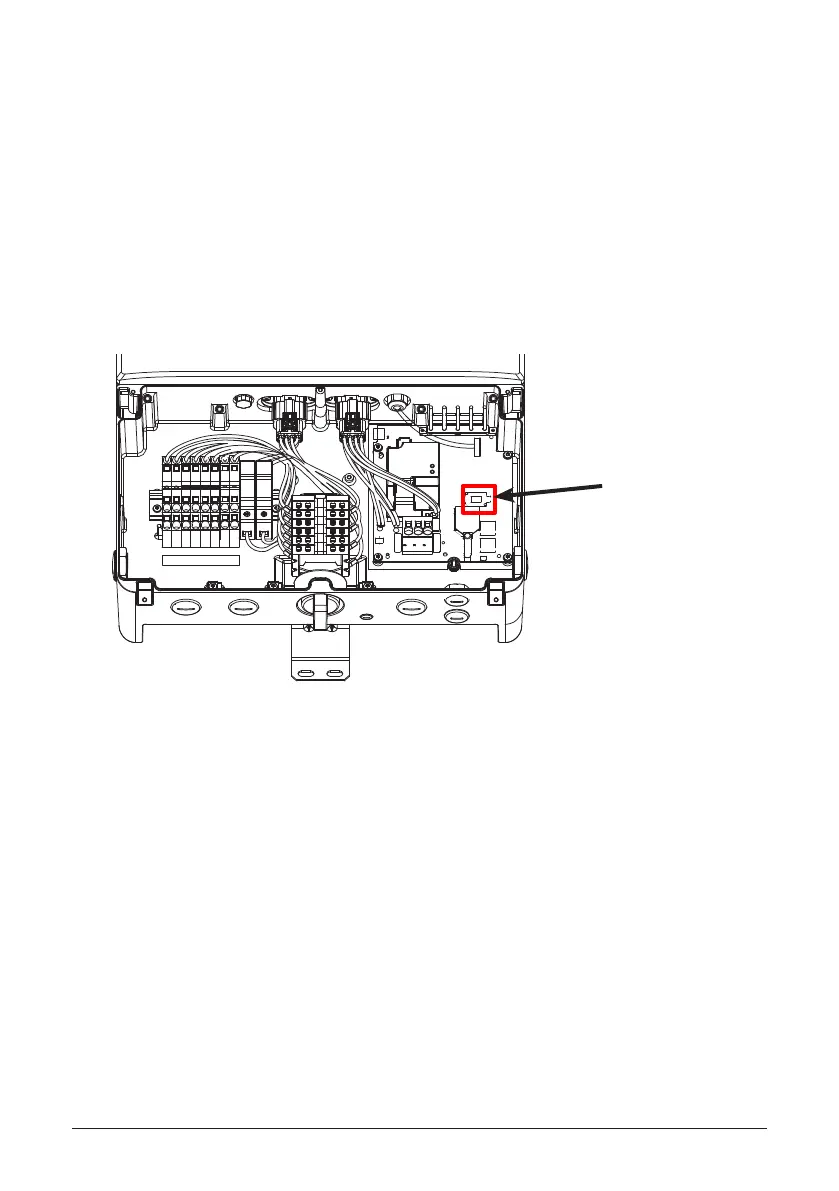

There is button located inside the junction box, for this button, there are following functions.
1. Arc reset
Application: Clear arc fault.
Trigger condition: Press the button for 3-5 seconds.
2. Arc self-test
Application: If there is no arc fault, run arc self-test
Trigger condition: Press the button for 3-5 seconds.
2. Gateway reset
Application: gateway reset to factory status
Trigger condition: Press the button for more than 10 seconds.
5.2.1 Reset button
There is button located in the bottom side of the junction box, for this button, it is used to imple-
ment dark start.
1. Application: During grid outage, when the whole system shutdowns for some reason, and
can’t recover by itself. Press this button to wake up battery or the whole system.2.
2. Trigger condition: Press the button for more than 5 seconds.
5.2.2 Dark start button
PV PV PV PV PV PV BAT+ BAT-
1+ 2+ 3+ 1- 2- 3-
Reset button
