52

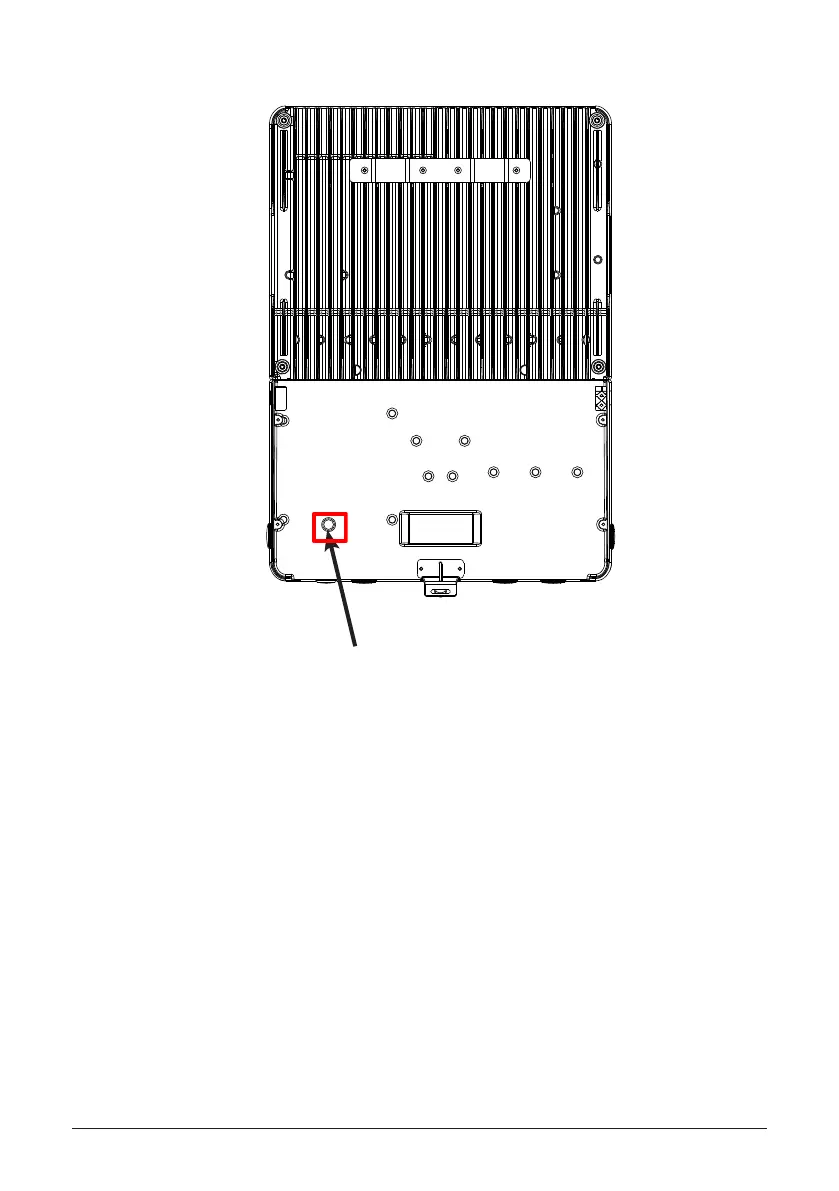

Dark start
5.3 Inverter turn-on procedure
1. Turn on the DC disconnect (turn to “ON” position, if rapid shutdown device is connected
turn on AC disconnect rstly).
2. Check for inverter initialization (all ve LED indicators are illuminated).
3. Turn on the dedicated 2-polo 240Vac / 208Vac circuit breaker in the building electrical
service panel (put in closed position).
4. If there is AC disconnect, turn on the AC disconnect.
5. Refer to section 6 for setup process that needs to be completed before the inverter can
begin feeding power to the grid.
5.4 Inverterturn-oprocedure
