Delta E8 BDI

16
The best e󰀩ciency of the solar inverter is obtained at input voltages > 320V for 208V grid, and input
voltages > 380V for 240V grid. The curve is obtained at 240V from PV port to utility grid.
2.6 E󰀩ciency

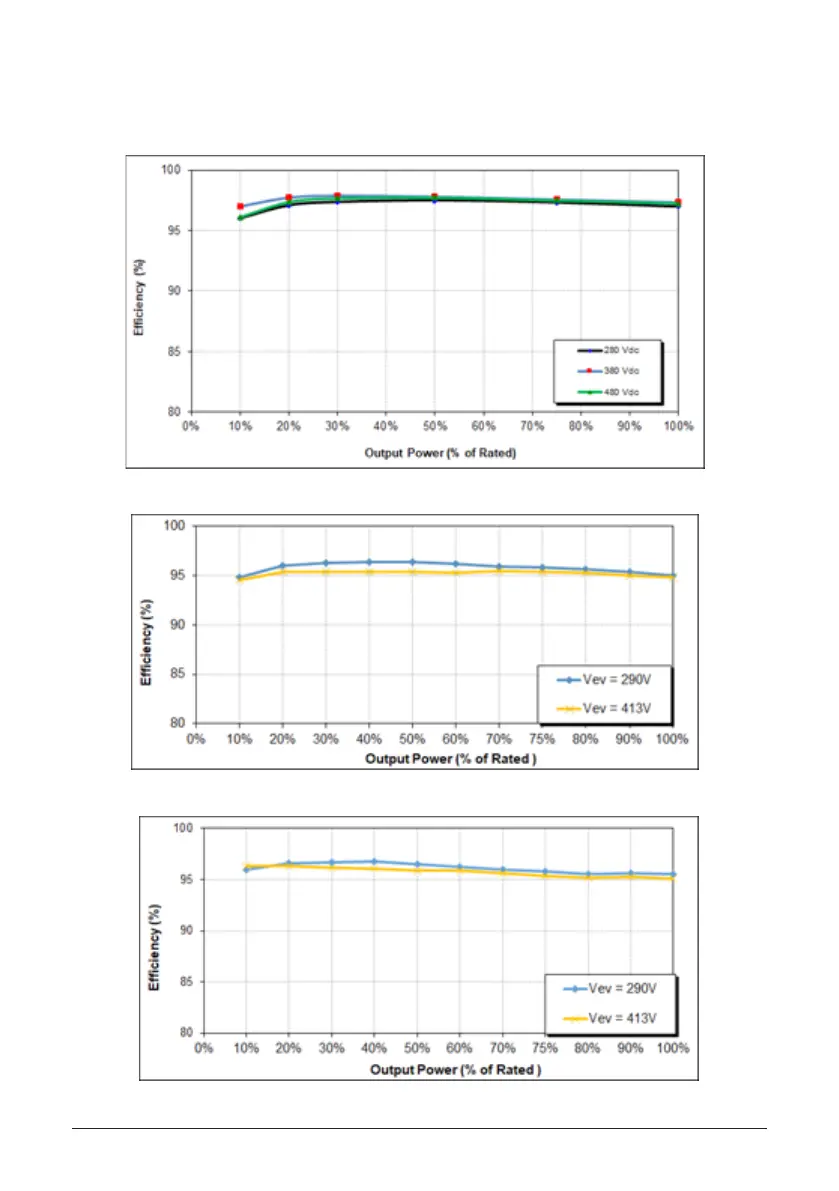

Figure7:E󰀩ciencyplotofE10_BDI(PVtoAC)
Figure8:E󰀩ciencyplotofE10_BDI(EVtoAC,discharging)
Figure9:E󰀩ciencyplotofE10_BDI(ACtoEV,charging)
