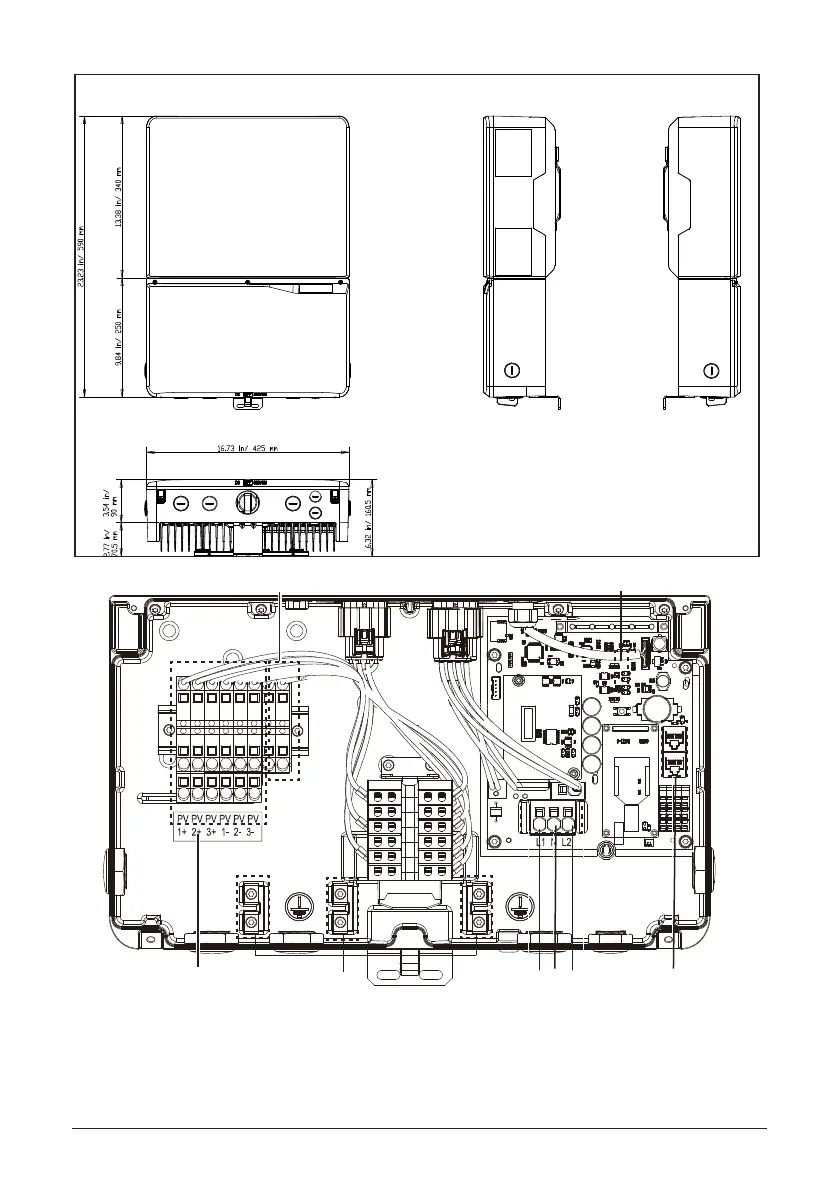

Figure 10: Dimensions of M Series inverters
(2)
(4)
(7)
(3)
(1)
(1) BAT Fuse Holders
(2) RS485 Termination
(3) PV terminals
(4) Grounding
(6)
(5) AC side L1
(6) AC side Netural
(7) AC side L2
(8) RS485 communication ports
(8)
(5)
Figure 11: Wiring box of M series inverters
