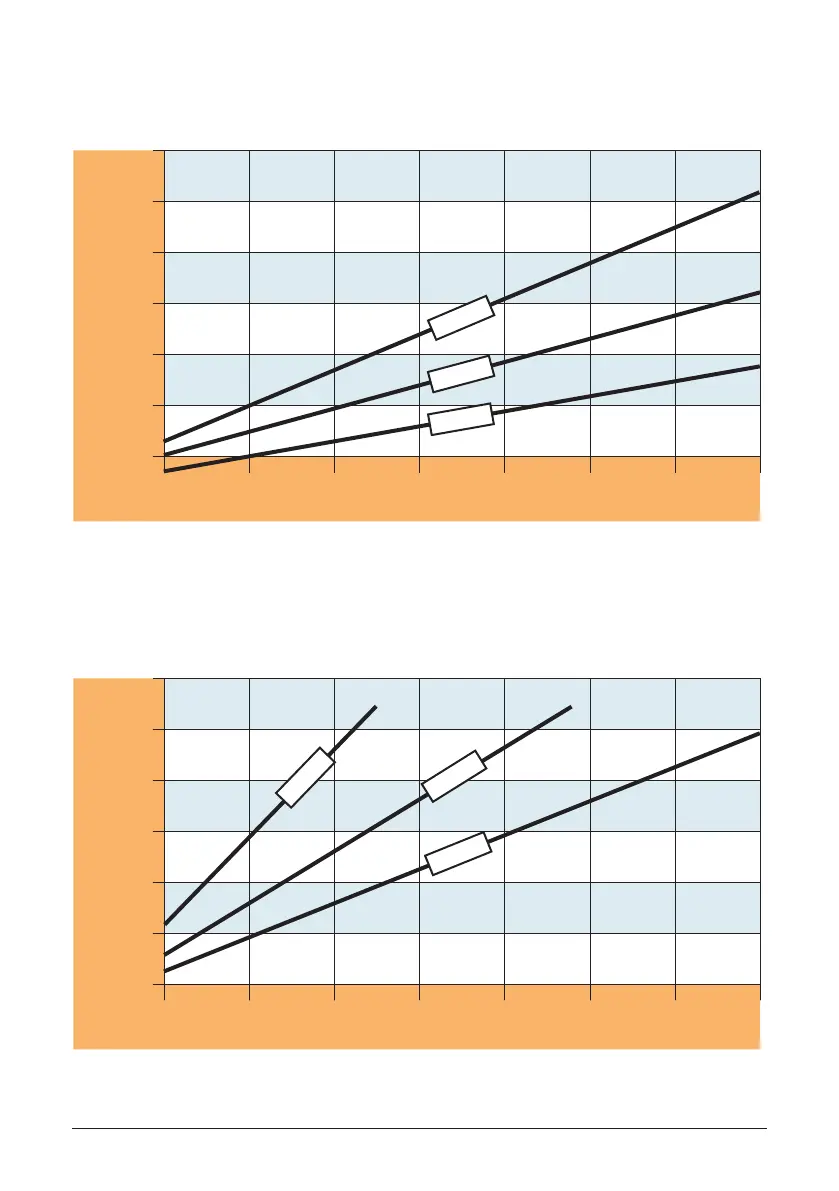

Percentage of voltage loss with 208 V AC and 240 V AC service. The load used in the calculation
is the maximum continuous AC current of the inverter. The maximun AC current of 3.8 TL model
and 3.0 TL model is similar.
2.0%
1.6%
1.2%
0.8%
0.4%
0.0%
20 40 60 80 100 120 140
One way distance in feet
Percent of voltage loss
10
AWG
8
AWG
6
AWG
Figure29:Mseriesvoltagelossindi󰀨erentwiresizesandlengths
Percentage of voltage loss with 208 V AC and 240 V AC service. The load used in the calculation
is the maximum continuous AC current of the inverter.
2.0%
1.6%
1.2%
0.8%
0.4%
0.0%
20 40 60 80 100 120 140
One way distance in feet
Percent of voltage loss
8
AWG
6
AWG
Figure30:Mseriesvoltagelossindi󰀨erentwiresizesandlengths
10
AWG
