Delta M80U User Manual

Figure 2-3.2-4, below, shows the certification and rating labels of M80/60U, and
Table 2-2, defines the symbol markings on these labels.

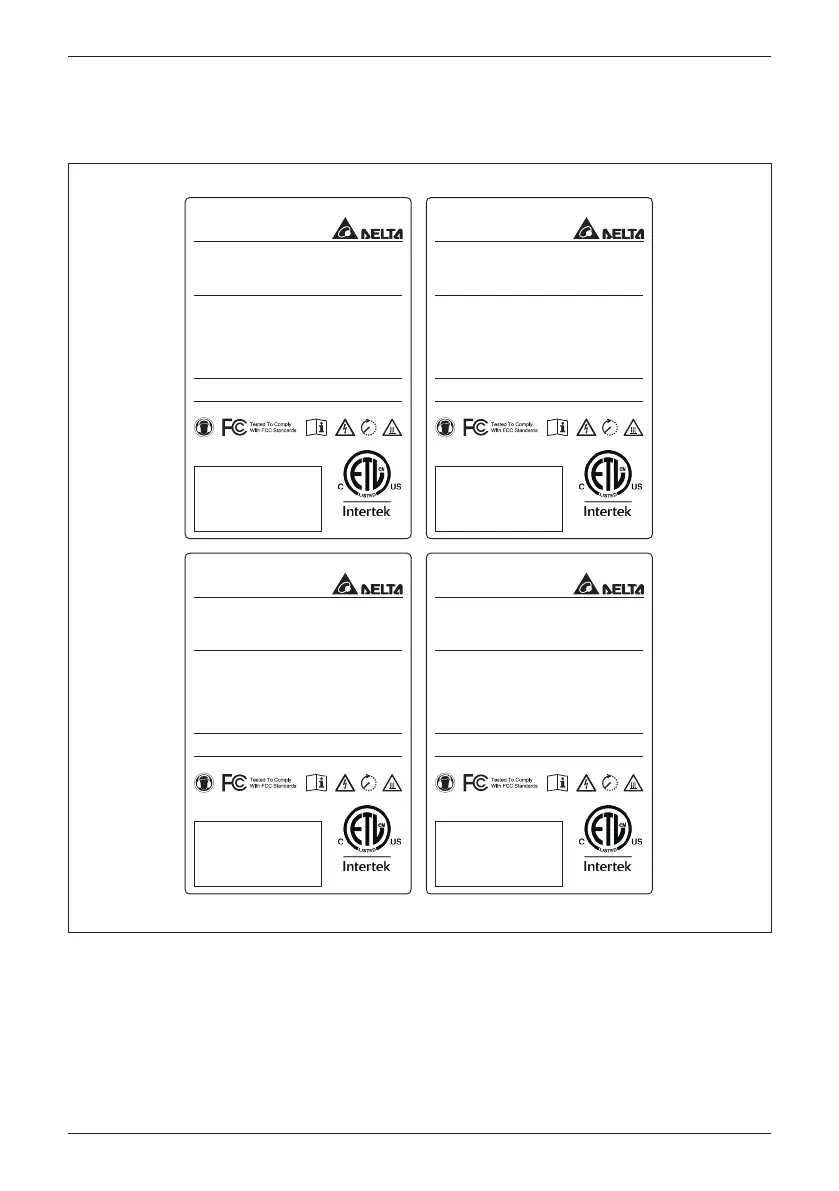

Figure 2-3: Rating labels of M80U
M80U
_
121
Three Phase Photovoltaic Inverter
P/N: RPI803M1213T2
Model /
5017042
Conforms to UL Std. 1741 and UL 1699B
Certified to CSA Std. C22.2 No. 107.1 and No. 292
Grid Support Utility Interactive Inverters
Made in Taiwan
100 sec.
DC Rating
DC Max. Input Voltage
DC Nominal Operation Voltage
DC Operation Voltage Range
DC Max. Input Current
1000V
710V
200 - 1000V
2 x 70A
AC Rating (Grid-tied)
AC Nominal Output Voltage
AC Operation Voltage Range
AC Max. Continuous output power
AC Operation Frequency Range
AC Nominal Output Frequency
AC Output Power Factor
AC Max. Output Current
480V
422 - 526V
83000VA
57.0 - 60.5Hz
60Hz
1
100A
Type of enclosure
Operating temp. range
Type 4X
-25 to +60℃
M80U
_
121
Three Phase Photovoltaic Inverter
P/N: RPI803M1233T2
Model /
5017042
Conforms to UL Std. 1741 and UL 1699B
Certified to CSA Std. C22.2 No. 107.1 and No. 292
Grid Support Utility Interactive Inverters
Made in Taiwan
100 sec.
DC Rating
DC Max. Input Voltage
DC Nominal Operation Voltage
DC Operation Voltage Range
DC Max. Input Current
1000V
710V
200 - 1000V
2 x 70A
AC Rating (Grid-tied)
AC Nominal Output Voltage
AC Operation Voltage Range
AC Max. Continuous output power
AC Operation Frequency Range
AC Nominal Output Frequency
AC Output Power Factor
AC Max. Output Current
480V
422 - 526V
83000VA
57.0 - 60.5Hz
60Hz
1
100A
Type of enclosure
Operating temp. range
Type 4X
-25 to +60℃
M80U
_
122
Three Phase Photovoltaic Inverter
P/N: RPI803M1223T2
Model /
5017042
Conforms to UL Std. 1741 and UL 1699B
Certified to CSA Std. C22.2 No. 107.1 and No. 292
Grid Support Utility Interactive Inverters
Made in Taiwan
100 sec.
DC Rating
DC Max. Input Voltage
DC Nominal Operation Voltage
DC Operation Voltage Range
DC Max. Input Current
1000V
710V
200 - 1000V
2 x 70A
AC Rating (Grid-tied)
AC Nominal Output Voltage
AC Operation Voltage Range
AC Max. Continuous output power
AC Operation Frequency Range
AC Nominal Output Frequency
AC Output Power Factor
AC Max. Output Current
480V
422 - 526V
83000VA
57.0 - 60.5Hz
60Hz
1
100A
Type of enclosure
Operating temp. range
Type 4X
-25 to +60℃
M80U
_
120
Three Phase Photovoltaic Inverter
P/N: RPI803M1203T2
Model /
5017042
Conforms to UL Std. 1741 and UL 1699B
Certified to CSA Std. C22.2 No. 107.1 and No. 292
Grid Support Utility Interactive Inverters
Made in Taiwan
100 sec.
DC Rating
DC Max. Input Voltage
DC Nominal Operation Voltage
DC Operation Voltage Range
DC Max. Input Current
1000V
710V
200 - 1000V
2 x 70A
AC Rating (Grid-tied)
AC Nominal Output Voltage
AC Operation Voltage Range
AC Max. Continuous output power
AC Operation Frequency Range
AC Nominal Output Frequency
AC Output Power Factor
AC Max. Output Current
480V
422 - 526V
83000VA
57.0 - 60.5Hz
60Hz
1
100A
Type of enclosure
Operating temp. range
Type 4X
-25 to +60℃
18
Introduction

Delta M80U Specifications

General

Brand	Delta
Model	M80U
Category	Inverter
Language	English
