7

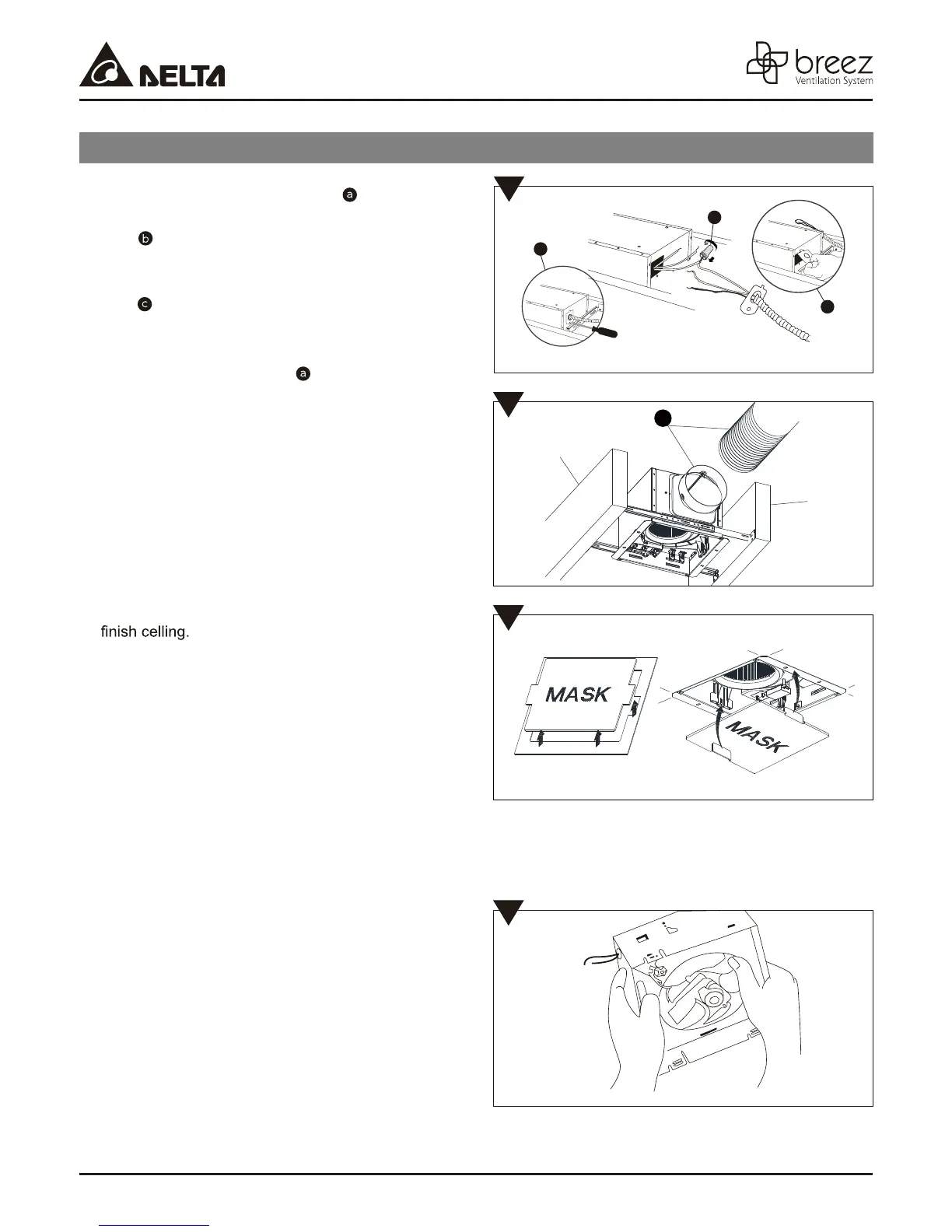

ASSEMBLY INSTRUCTIONS
c
b
a
3
a
Joist
Joist
4
5
3. Remove the fan junction box cover
. Using wire
nuts (not supplied), connect house wires to fan
wires as shown in the wiring diagram on page 5 .
cover .
4. Connect a 6 in. circular duct (not supplied) and
vent to the outside. Secure it with duct tape (not
supplied) or clamp (not supplied) to make the
connection secure and air tight.
5. Punch out Mask from packaging. Insert mask and
Mask protects unit during construction.
Remove before installing Grille.
EXISTING CONSTRUCTION
BEFORE INSTALLATION
Turn off power source. Review all safety precautions.
1. Remove existing fan.
1
14AWG is the smallest conductor that shall be used
for branch-circuit wiring. Reattach fan junction box
To Next Page
