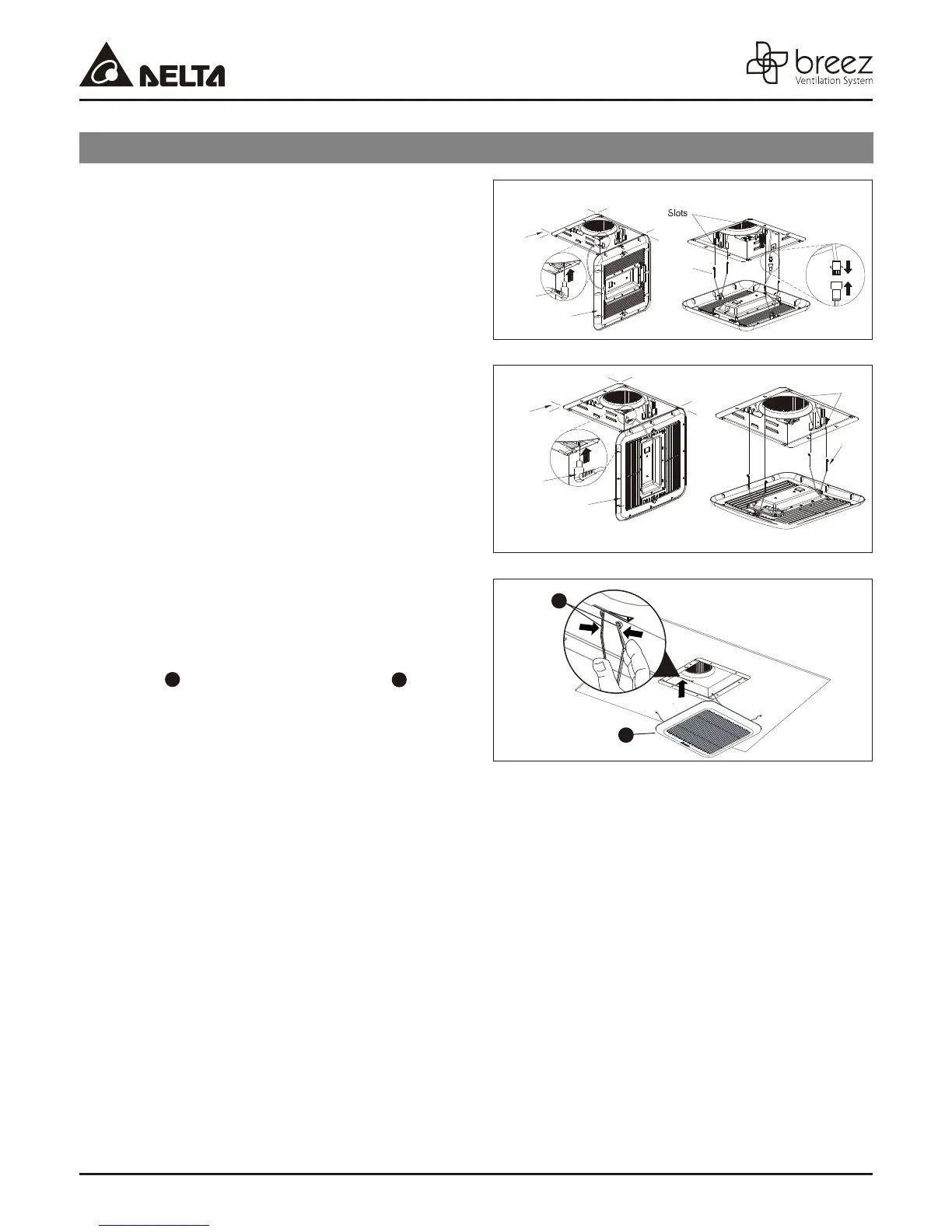

GRILLE INSTALLATION
Model: SIG80-110MHLED
Insert the LED light connector and the motion sensor
connector into the fan body.
Models: SIG80-110LED, SIG80-110DLED,
SIG80-110HLED
Insert the LED light connector into the fan body.
Models: SIG80-110, SIG80-110D, SIG80-110H,
SIG80-110MH
Attach grille by pinching mounting springs
a
and
insert into the narrow rectangular slots in fan body.
a
4
Celling
Grille
LED light
connector
Spring
Slots
Celling
Grille
LED light
connector
Spring
Motion senso
r
connector
Ce
lling
Grille
LED light
connector
Spring
Slots
Celling
Grille
LED light
connector
Spring
Motion sensor
connector
4
Insert the motion sensor connector into the fan body
(SIG80-110MH only).
