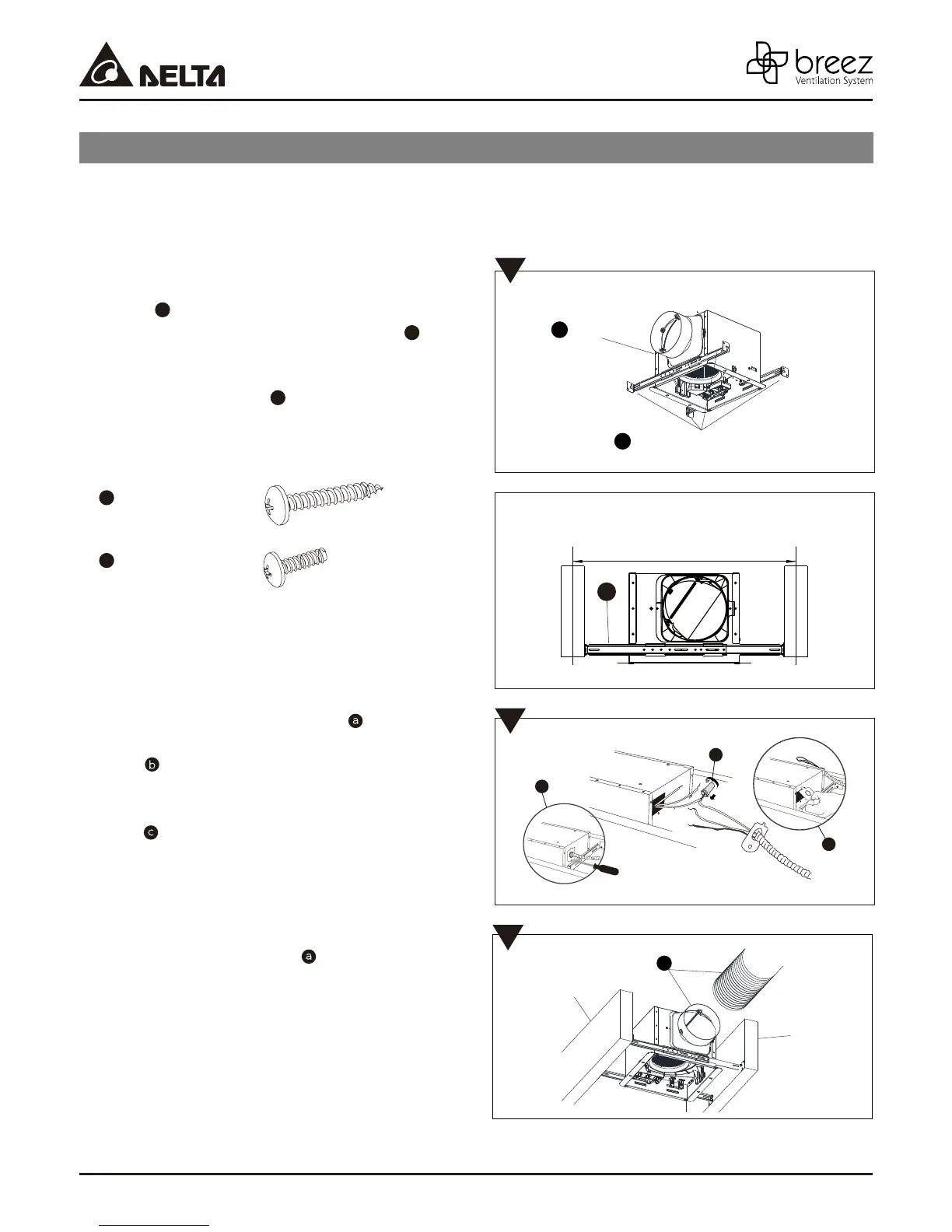

ASSEMBLY INSTRUCTIONS
*ONLY IF UNABLE TO ATTACH DIRECTLY TO JOIST(S)
1. For joist spacing 16 in.- 24 in., insert suspension
bracket into the bracket cover on the duct
connector side and the back of the fan body
Install the suspension brackets to the joists with
long wood screw, and secure the suspension
brackets to the fan body by using the short
screws (provided).
2. Remove the fan junction box cover
. Using wire
nuts (not supplied), connect house wires to fan
wires .5 egap no margaid gniriw eht ni nwohs sa
cover .
3. Connect a 6 in. circular duct
(not supplied)
and vent to the outside. Secure it with duct tape
(not supplied) or clamp (not supplied) to make the
connection secure and air tight.
Install from above with suspension brackets (attic
accessible)
16"(406mm)
19.2"(487mm)
24"(609mm)
1
16"(406mm)
19.2"(487mm)
24"(609mm)
c
b
a
2
a
Joist
Joist
3
1
1
2
2
14AWG is the smallest conductor that shall be used
for branch-circuit wiring.
Reattach fan junction box
Suspension Bracket
Fan Body
1
2
Hardware
A
Long wood screw
B
Short screw
