Delta TP Series User Manual

- 1 -
…………………………………………………………………  ENGLISH  …………………………………………………………………
Thank you for choosing Delta’s TP series product. TP04G-BL-C achieves improvement
in usability. Users can purchase program copy card (optional) to copy settings and
programs quickly and save download time. In addition, the editing software provides
various object icons (bitmaps) to meet various users’ requirements. For best
performance please ensure that TP series product is used with Delta’s power supply
module DVPPS01 or DVPPS02.
EN a TP04G-BL-C is an OPEN-TYPE device. It should be installed in a control cabinet
free of airborne dust, humidity, electric shock and vibration. To prevent
non-maintenance staff from operating TP04G-BL-C, or to prevent an accident
from damaging TP04G-BL-C, the control cabinet in which TP04G-BL-C is
installed should be equipped with a safeguard. For example, the control cabinet
in which TP04G-BL-C is installed can be unlocked with a special tool or key.
EN a DO NOT connect AC power to any of I/O terminals, otherwise serious damage
may occur. Please check all wiring again before TP04G-BL-C is powered up.
After TP04G-BL-C is disconnected, Do NOT touch any terminals in a minute.
Make sure that the ground terminal on TP04G-BL-C is correctly grounded in
order to prevent electromagnetic interference.
FR a TP04G-BL-C est un module OUVERT. Il doit être installé que dans une enceinte
protectrice (boitier, armoire, etc.) saine, dépourvue de poussière, d’humidité, de
vibrations et hors d’atteinte des chocs électriques. La protection doit éviter que
les personnes non habilitées à la maintenance puissent accéder à l’appareil (par
exemple, une clé ou un outil doivent être nécessaire pour ouvrir a protection).
FR a Ne pas appliquer la tension secteur sur les bornes d’entrées/Sorties, ou l’appareil
TP04G-BL-C pourra être endommagé. Merci de vérifier encore une fois le
câblage avant la mise sous tension du TP04G-BL-C. Lors de la déconnection de
l’appareil, ne pas toucher les connecteurs dans la minute suivante. Vérifier que la
terre est bien reliée au connecteur de terre afin d’éviter toute interférence
électromagnétique.

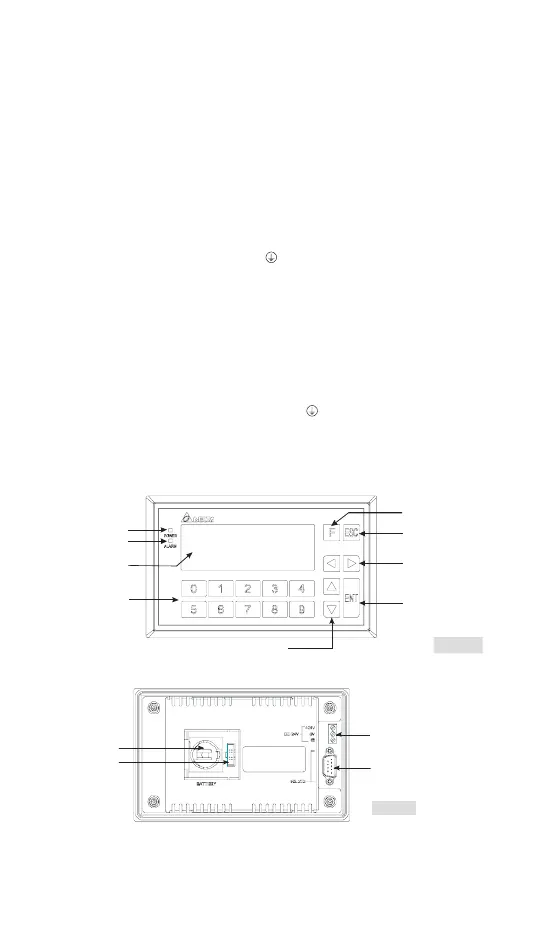

 Product Outline and Dimensions
y Front Panel
Figure1
Power indicator
Alarm indicator
Display area
Numeric keys
Escape/Exit key
Enter key
Up/Down keys
Left/Right key
User defined
y Back Panel
Figure2
Program copy
card interface
Battery
DC power supply
RS-232/RS422/RS485
Communication port
3-PIN fixed terminals / Wire Gauge:12-24 AWG / Torque:4.12 lb.-inch

Delta TP Series Specifications

General

Power Supply	24VDC
Communication Ports	RS-232, RS-485, Ethernet
Operating Temperature	0°C to 50°C
Protection Rating	IP65
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% RH (non-condensing)
Resolution	800 x 480 pixels
