VFD-B Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
3-14

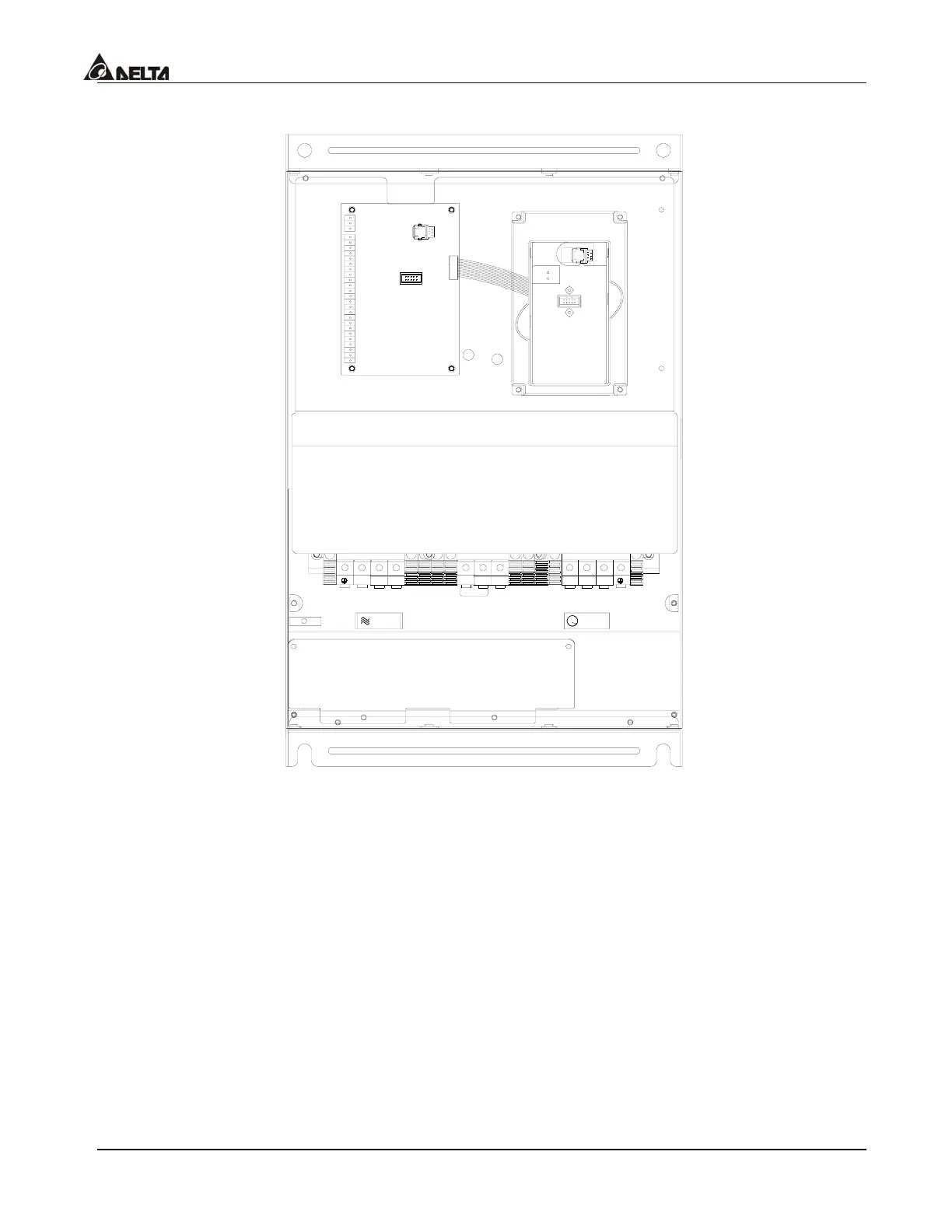

40 HP to 60 HP 460V (VFD300B43A, VFD370B43A, VFD450B43A)
R/L1
+1
+2
-
S/L2 T/L3 U/T1 V/T2 2/T3
POWER
IM
MOTOR
3
CHARGE
POWER
ALARM
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG
Power Terminal
Torque: 58.7kgf-cm (50.9 in-lbf) max.
Wire Gauge: 2-4AWG
Wire Type: Stranded copper only, 75°C
