Appendix B Accessories_VFD-B Series
Revision 10/2005, BE13, SW V4.08 B-3

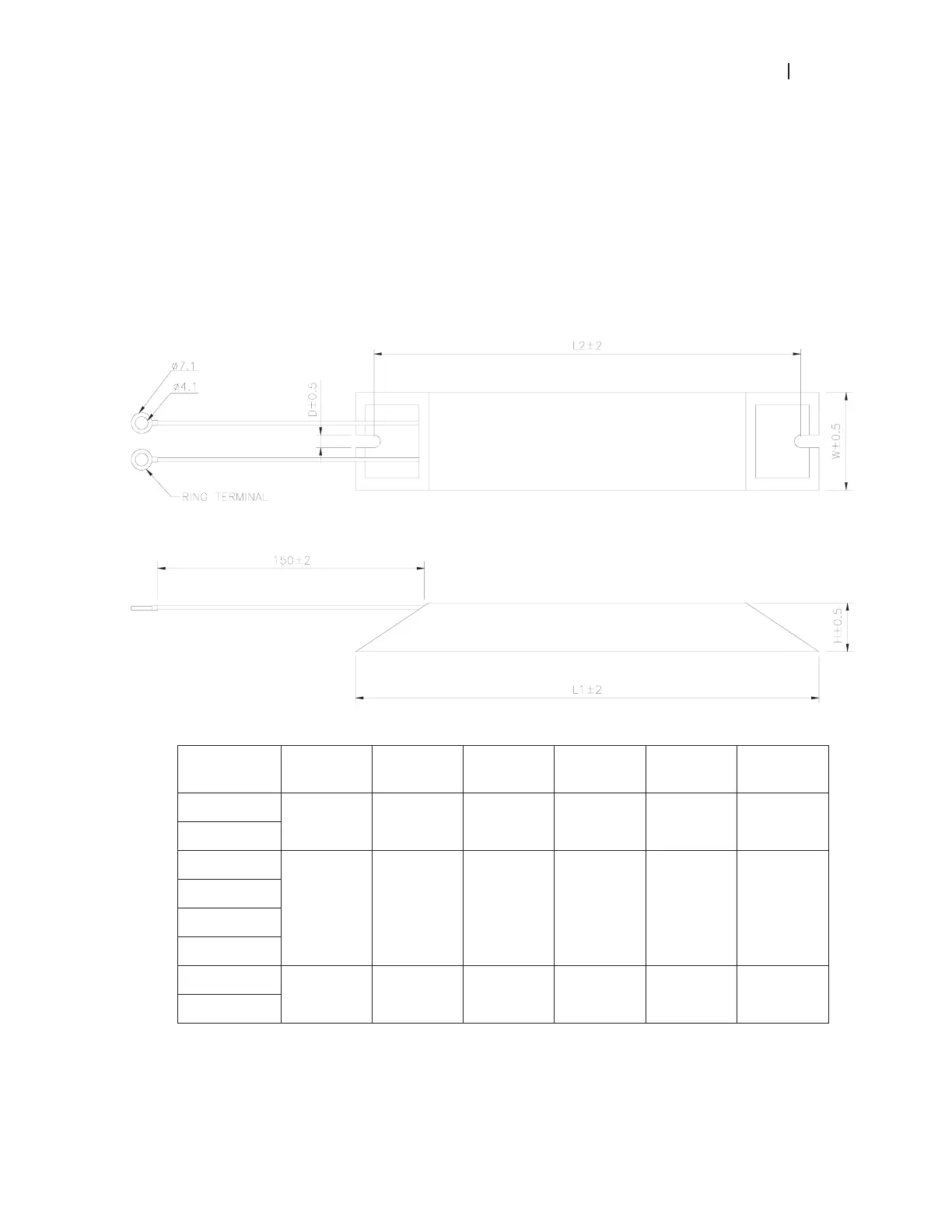

B.1.1 Dimensions and Weights for Braking Resistors
(Dimensions are in millimeter)
Order P/N: BR080W200, BR080W750, BR300W070, BR300W100, BR300W250, BR300W400,
BR400W150, BR400W040
Model no. L1 L2 H D W
Max. Weight
(g)
BR080W200
BR080W750
140 125 20 5.3 60 160
BR300W070
BR300W100
BR300W250
BR300W400
215 200 30 5.3 60 750
BR400W150
BR400W040
265 250 30 5.3 60 930
