Chapter 8 Option CardsCP2000
8-13
8-7 CMC-PD01 -- Communication card, PROFIBUS DP
8-7-1 Features
1. Supports PZD control data exchange.
2. Supports PKW polling AC motor drive parameters.
3. Supports user diagnosis function.
4. Auto-detects baud rates; supports Max. 12 Mbps.

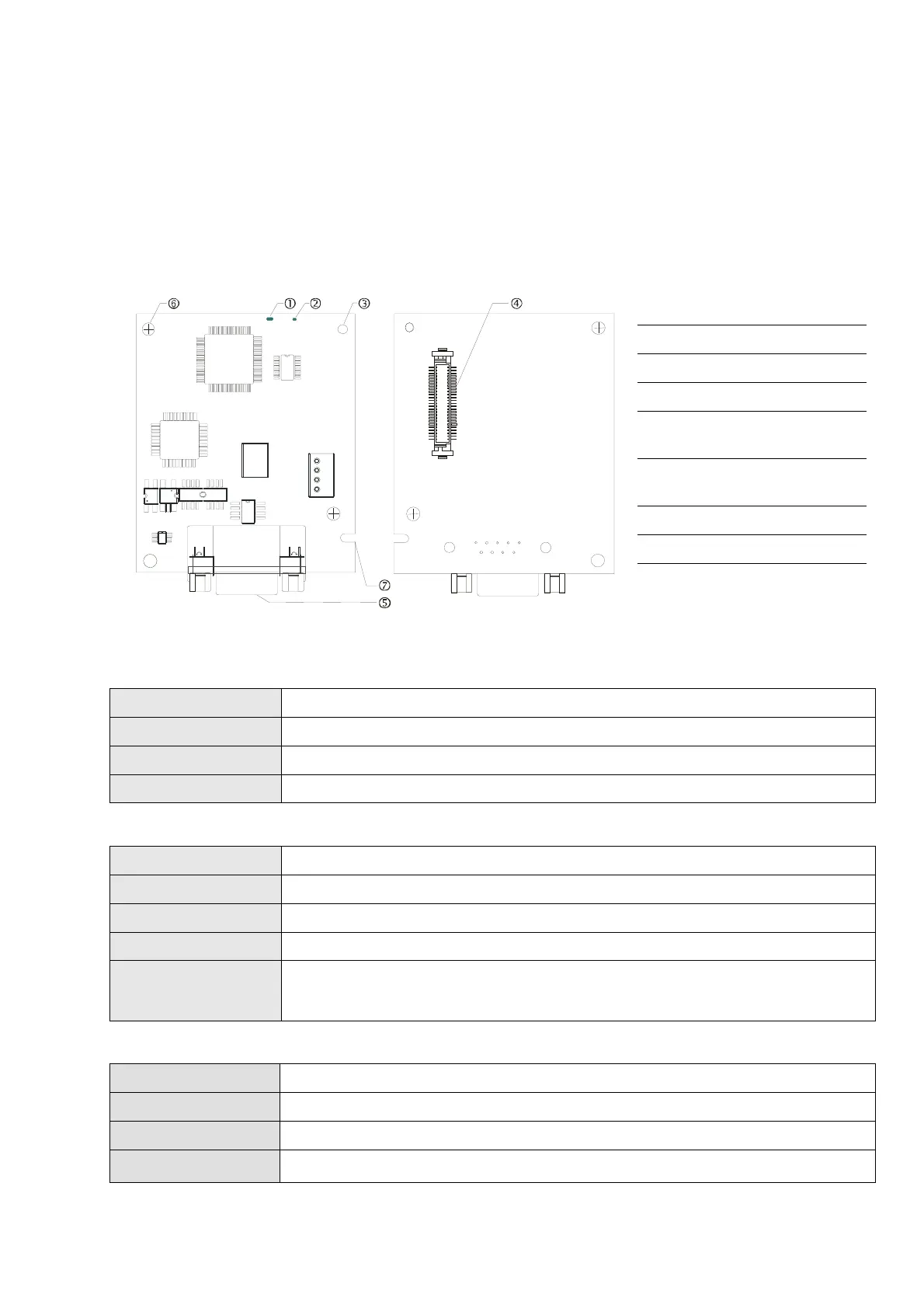

8-7-2 Product Profile
1. NET indicator
2. POWER indicator
3. Positioning hole
4. AC motor drive connection
port
5. PROFIBUS DP connection
port
6. Screw fixing hole
7. Fool-proof groove
8-7-3 Specifications
PROFIBUS DP Connector
Interface DB9 connector
Transmission method
High-speed RS-485
Transmission cable Shielded twisted pair cable
Electrical isolation
500 V
DC
Communication
Message type
Cyclic data exchange
Module name CMC-PD01
GSD document
DELA08DB.GSD
Company ID 08DB (HEX)
Serial transmission
speed supported
(auto-detection)
9.6 Kbps; 19.2 Kbps; 93.75 Kbps; 187.5 Kbps; 500 Kbps; 1.5 Mbps; 3 Mbps;
6 Mbps; 12 Mbps (bit /per second)
Electrical Specification
Power supply voltage
5 V
DC
(supplied by AC motor drive)
Insulation voltage 500 V
DC
Power consumption
1 W
Weight 28 g
