11. Copy PLC
Four duplicates are provided

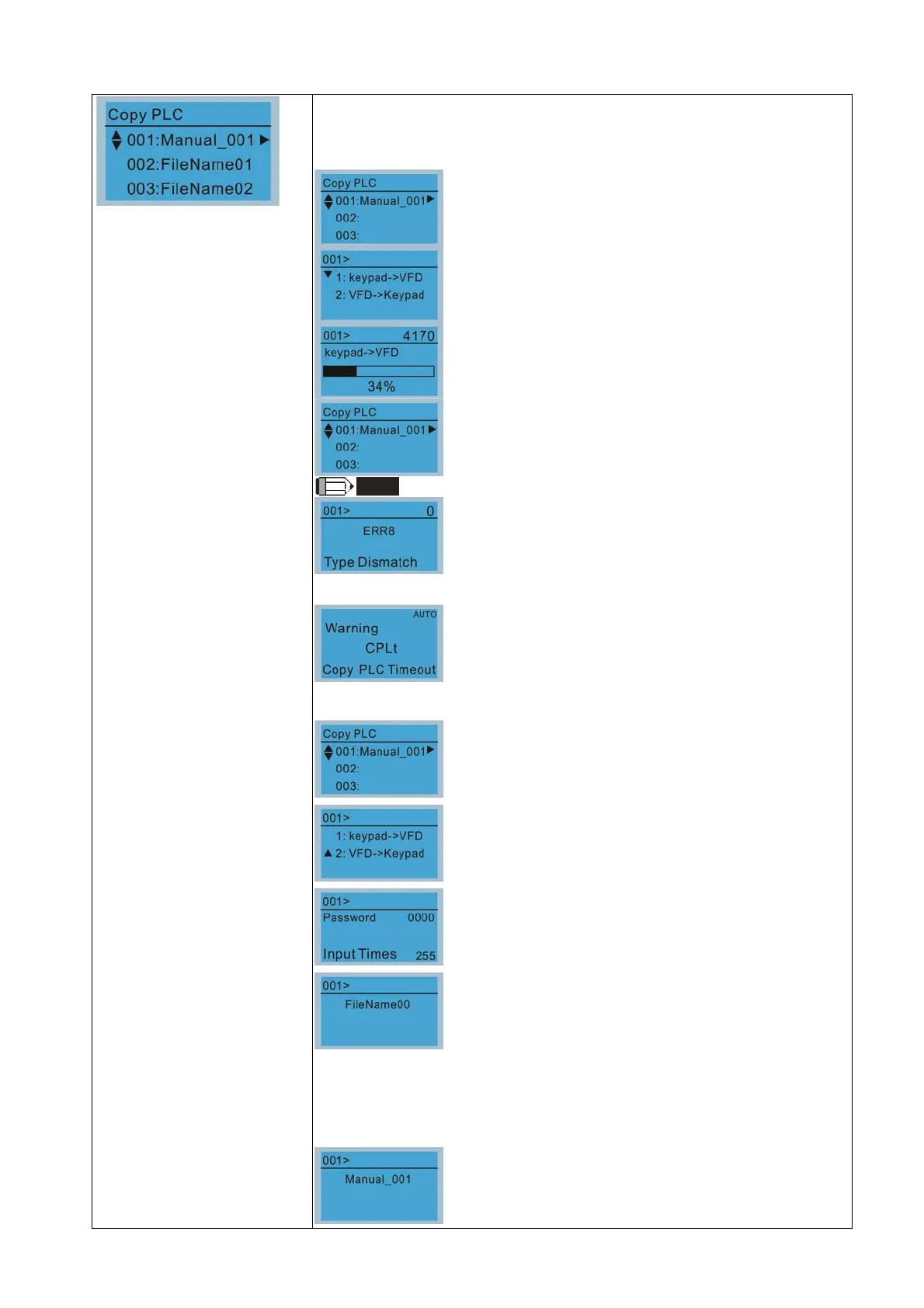

The steps are shown in the example below.
Example: Saved in the motor drive.
1. Go to “Copy PLC”
2. Select a parameter group to copy, then press
ENTER.
1. Select 1: Save in the motor drive.
2. Press ENTER key to go to “Save in the moto
drive” screen.
Begin to copy PLC until it is done.
Once copying PLC is done, keypad will automaticall
be back to this screen.
NOTE
If “Option 1: Save in the motor drive” is selected,
verify if the PLC program is built-in to KPC-CC01
keypad. If PLC program is not available in the keypad
while “Option 1: Save in the motor drive” is selected,
an “ERR8 Warning: Type not matching” will be
displayed on the screen.
Unplug and plug back the keypad while copying the
PLC program will cause a CPLt warning.
Example: Saved in the keypad.
1. Go to “Copy PLC”.
2. Select the parameter group which needs to be
copied and press ENTER key.
Press ENTER key to go to “Save in the motor drive”
screen.
If WPLSoft editor is installed and password is set,
enter the password to save the file onto digital
display.
Use Up/ Down key to select a symbol.
Use Left/ Right key to move the cursor to select a file
name.
String & Symbol Table:
！＂＃＄％＆＇（）＊＋，－．／０１２３４５６７８９：；＜＝＞？＠Ａ
ＢＣＤＥＦＧＨＩＪＫＬＭＮＯＰＱＲＳＴＵＶＷＸＹＺ［＼］＾
｀ａｂ
ｃｄｆｇｈｉｊｋｌｍｎｏｐｑｒｓｔｕｖｗｘｙｚ｛｜｝～
Once the file name is confirmed, press ENTER key.
