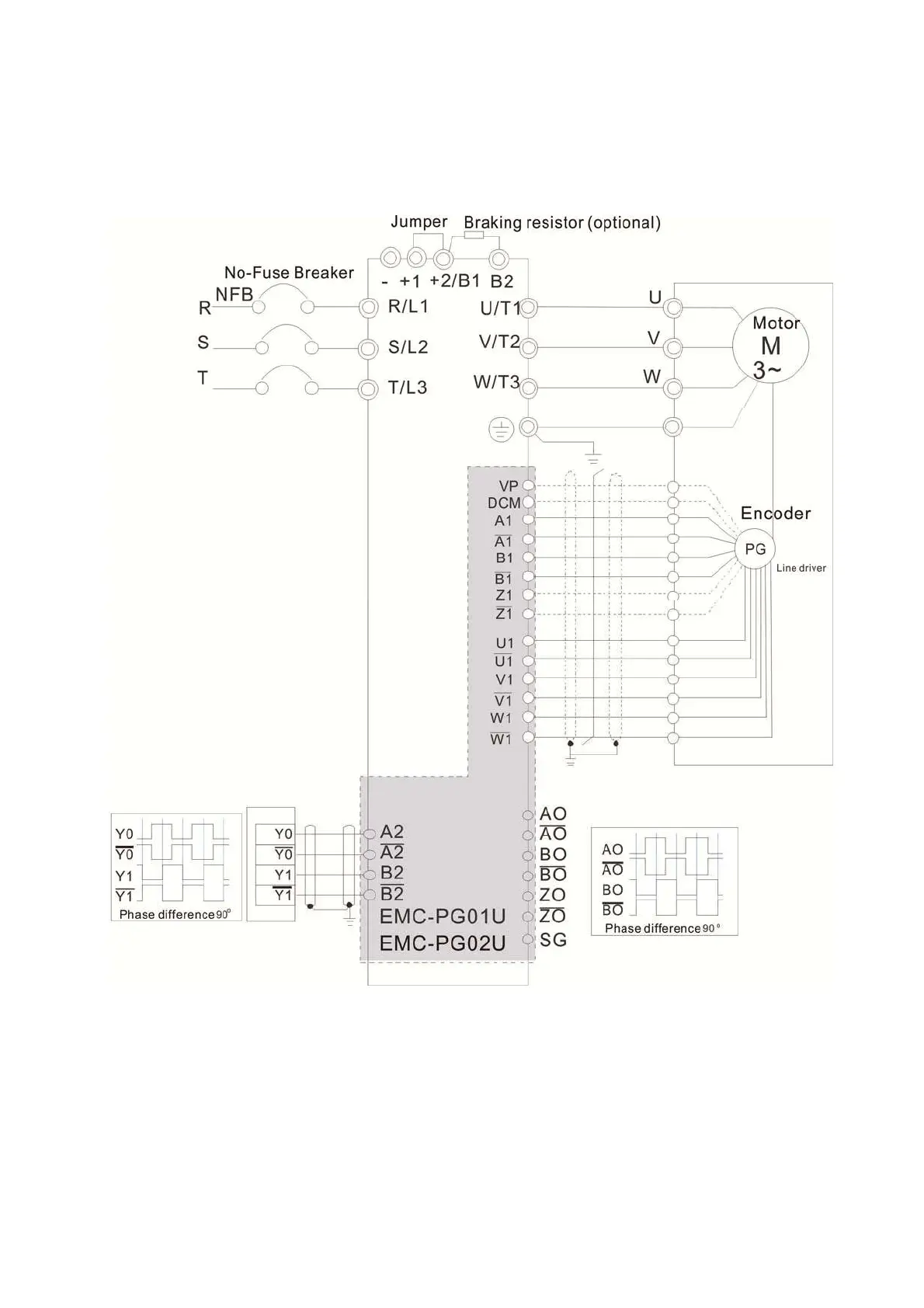

8-9-2 EMC-PG01U / EMC-PG02U Wiring Diagram
Please use a shielded cable to prevent interference. Do not run control wires parallel to any
high voltage AC power line (200 V
AC
and above).
Recommended wire size 0.21–0.81mm
2
[AWG24–AWG18].
Cable length: Single-phase input, less than 30m / 2-phase input, less than 100m
