Chapter 10 Digital KeypadC2000-HS
10-6

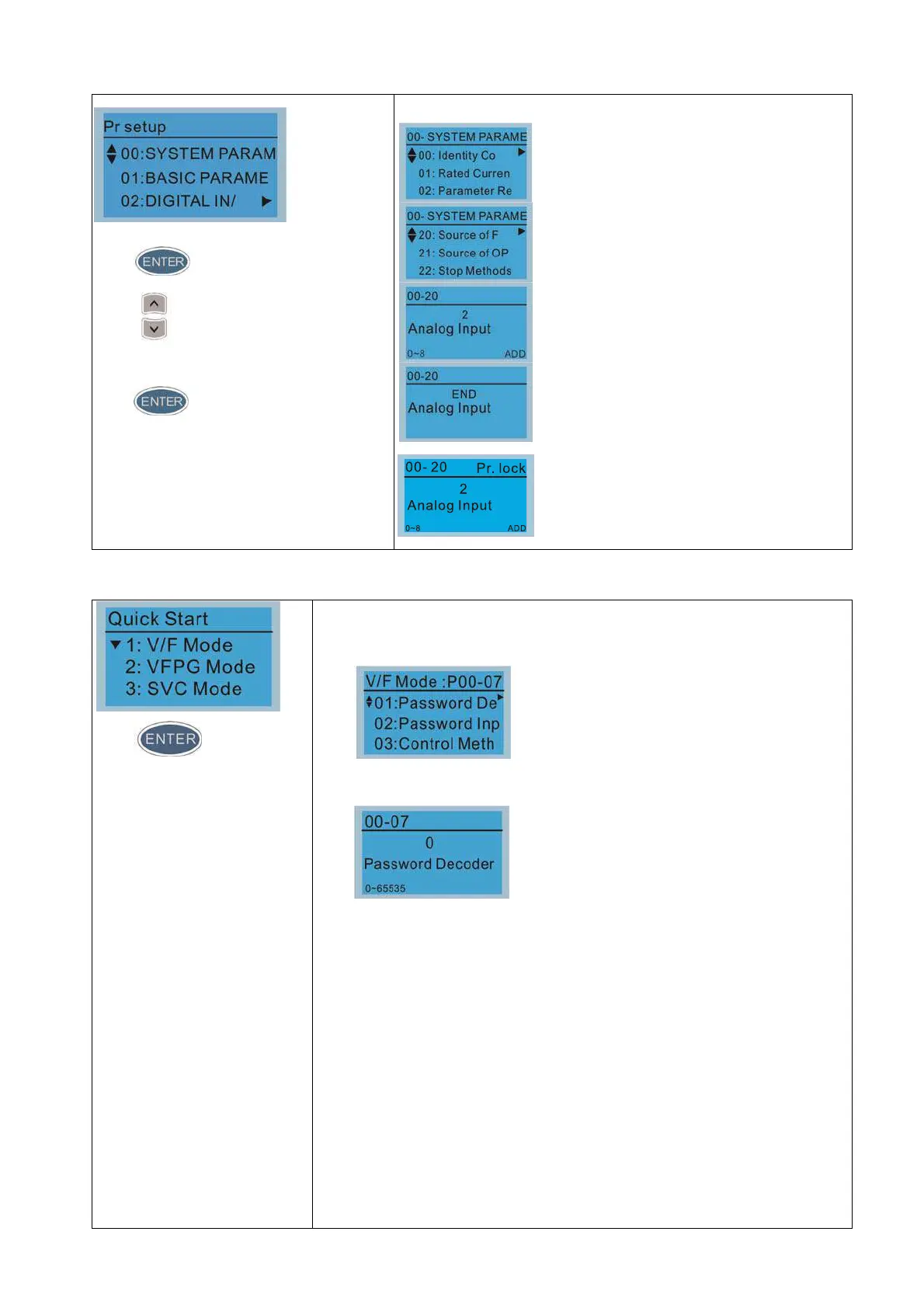

1. Parameter Setup
Press to select.
Press
to select a parameter group.
Once a parameter group is selected,
press
to go into that group.
Example: Setup source of master frequency command.
Once in the Group 00 Motor Drive Parameter,
Use Up/Down key to select parameter 20:
Auto Frequency Command.
When this parameter is selected, press
ENTER key to go to this parameter’s setting
menu.
Use Up/Down key to choose a setting.
For example: Choose “2 Analogue Input”,
then press the ENTER key.
After pressing the ENTER key, an END will be
displayed which means the parameter setting
is done.
NOTE: When parameter lock/ password
protection function is enabled, it displays “Pr.
lock” on the right-up corner of the keypad.
The parameter cannot be written or is
protected by the password under this
circumstances.
2. Quick Start
Press to select.
Quick Start:
1. V/F Mode
2. SVC Mode
3. My Mode
Description:
1. VF Mode
01:Password Decoder
Items
1. Parameter protection password input
(Pr.00-07)
2. Parameter protection password setting
(Pr.00-08)
3. Control mode (Pr.00-10)
4. Speed control mode (Pr. 00-11)
5. Load selection (Pr.00-16)
6. Carrier frequency (Pr.00-17)
7. Master frequency command (AUTO)
source / Source selection of the PID
target (Pr.00-20)
8. Operation command (AUTO) source
(Pr.00-21)
9. Stop method (Pr.00-22)
10. Digital keypad STOP function (Pr.00-32)
11. Max. operation frequency (Pr.01-00)
12. Output frequency of motor 1 (Pr.01-01)
13. Output voltage of motor 1 (Pr.01-02)
14. Mid-point frequency 1 of motor 1
(Pr.01-03)
15. Mid-point voltage 1 of motor 1
(Pr.01-04)
16. Mid-point frequency 2 of motor 1
(Pr.01-05)
17. Mid-point voltage 2 of motor 1
(Pr.01-06)
18. Min. output frequency of motor 1
(Pr.01-07)
19. Min. output voltage of motor 1
(Pr.01-08)
