Delta VFD1100C43A-HS - Page 19

Chapter 1 IntroductionC2000-HS
1-11

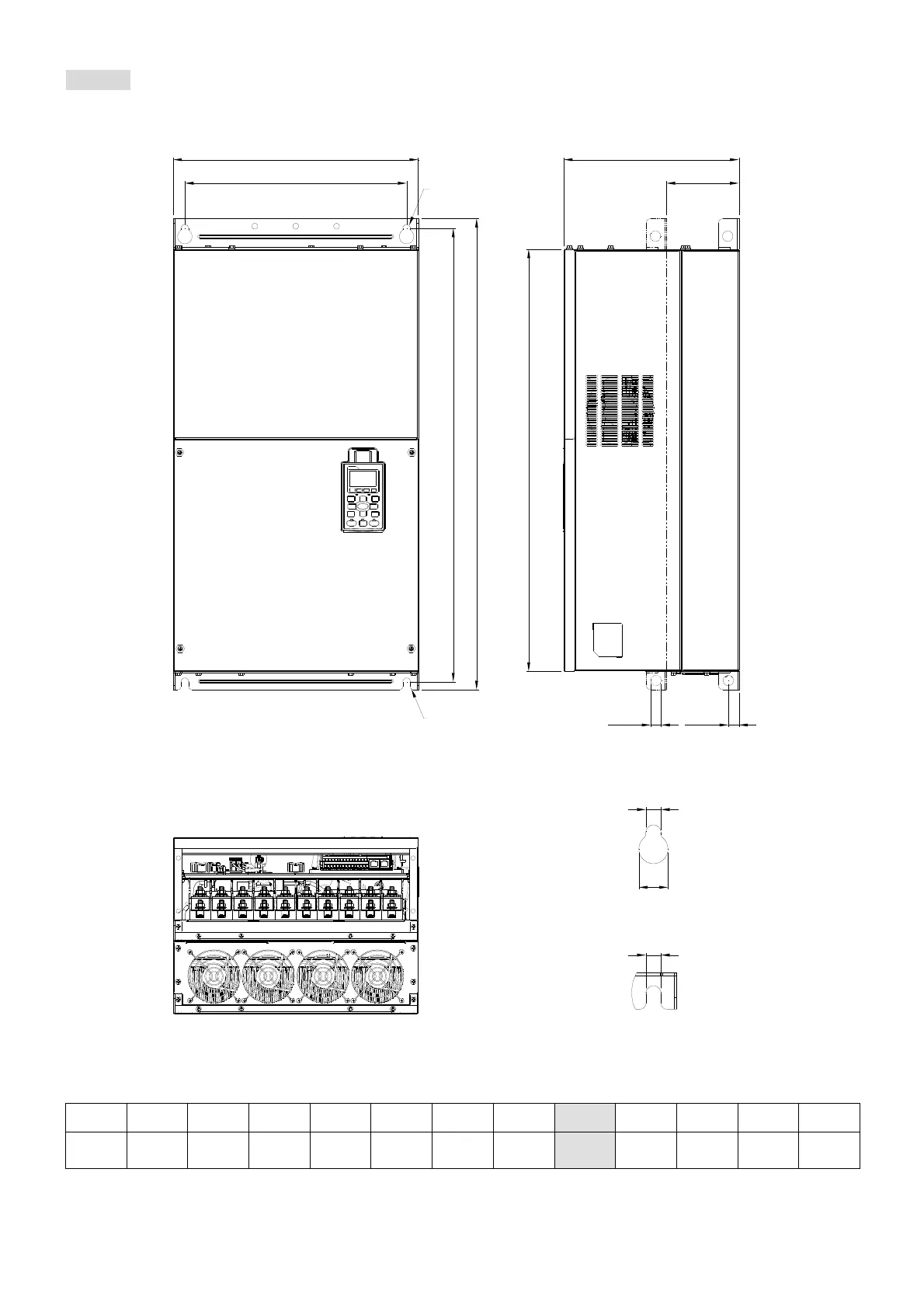

Frame F
VFD1600C43A-HS
H1
H2
S1
S1
W
W1
S2
See Detail A
See Detail B
Detail A (Mounting Hole)
Detail B (Mounting Hole)
D2
D
D1
H3
S3
Figure 1-15
Unit: mm [inch]
Frame W H D W1 H1 H2 H3 D1* D2 S1 S2 S3
F
420.0
[16.54]
-
300.0
[11.81]
380.0
[14.96]
800.0
[31.50]
770.0
[30.32]
717.0
[28.23]
124.0
[4.88]
18.0
[0.71]
13.0
[0.51]
25.0
[0.98]
18.0
[0.71]
D1*: Flange mounting
See Detail A
See Detail B
Detail A (Mounting Hole)
Detail B (Mounting Hole)
